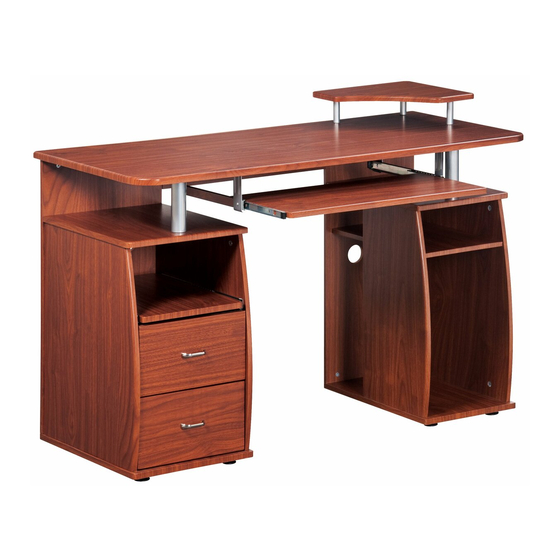

Techni Mobili RTA-8211 Assembly Instructions Manual
Hide thumbs
Also See for RTA-8211:
- Assembly instructions manual (16 pages) ,
- Assembly instructions manual (18 pages) ,
- Assembly instructions manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Techni Mobili RTA-8211
Summary of Contents for Techni Mobili RTA-8211
- Page 1 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Do not discard this manual or any of the packaging material until the unit has been completely assembled. B11 190612...
- Page 2 RTA-8211 x2 Sets...
- Page 3 RTA-8211...
- Page 4 RTA-8211 PART QTY. ITEM PART QTY. ITEM 6X40 MM WASHER 6X30 MM 3X15 MM 4X35 MM 5X40 MM 6X25 MM 4X20 MM Φ5X17 MM 4X14 MM 6X12 MM GROMMET 4X4 MM SCREWDRIVER 6X35 MM...
- Page 5 RTA-8211...
- Page 6 RTA-8211...
- Page 7 RTA-8211 Holes for scanner sllder Holes for top drawer FRONT FRONT Holes for bottom drawer Use screws (B) to assemble the flat drawer sliders ( 8 ) on the middle and bottom sets of slider holes as indicated. The wheels will be facing towards the front of the panels.
- Page 8 RTA-8211 IMPORTANT: Make sure you use in this step the correct sliders (4) which are longer and have more holes than the sliders (22). Use screws (B) to assemble the scanner sliders (4) to the top sets of slider holes on panels (9) and (10) in the following order: First open the slider slowly until the first hole on the front of the slider is visible thru the big opening, and attach to the front hole on the panels as shown.
- Page 9 RTA-8211 6X40 MM FRONT 5X40 MM BACK FRONT Secure the back panel (12) to the side panels (9) Attach the bolts (A) to the drawers’ box top panel (14), and (10) using screws (K) as shown. and then assemble it the side panels (9) and (10) as shown.
- Page 10 RTA-8211 P.10 6X25 MM FRONT Back of panel (20) has 2 holes for BACK next step. FRONT 6X40 MM Attach the bolts (L) to the CPU box bottom panel (20), First attach the bolts (A) to the drawers’ box then assemble the back panel (19) as shown.
- Page 11 RTA-8211 P.11 Left Right FRONT FRONT...
- Page 12 RTA-8211 P.12 FRONT Screw Bolts L into the holes of the back face of the Tabletop(24). Please washers(I) over the holes of panels(14)&(21),and place the tabletop over the frame .Use screws H to fix the Supporting Tubes(26) to the structure. Finally, tighten the cam locks.
- Page 13 RTA-8211 P.13...
- Page 14 RTA-8211 P.14 DONE! Before you start using the unit, please read all the warnings in the following page.
- Page 15 RTA-8211 P.15...
