Summary of Contents for Techni Mobili RTA-8818

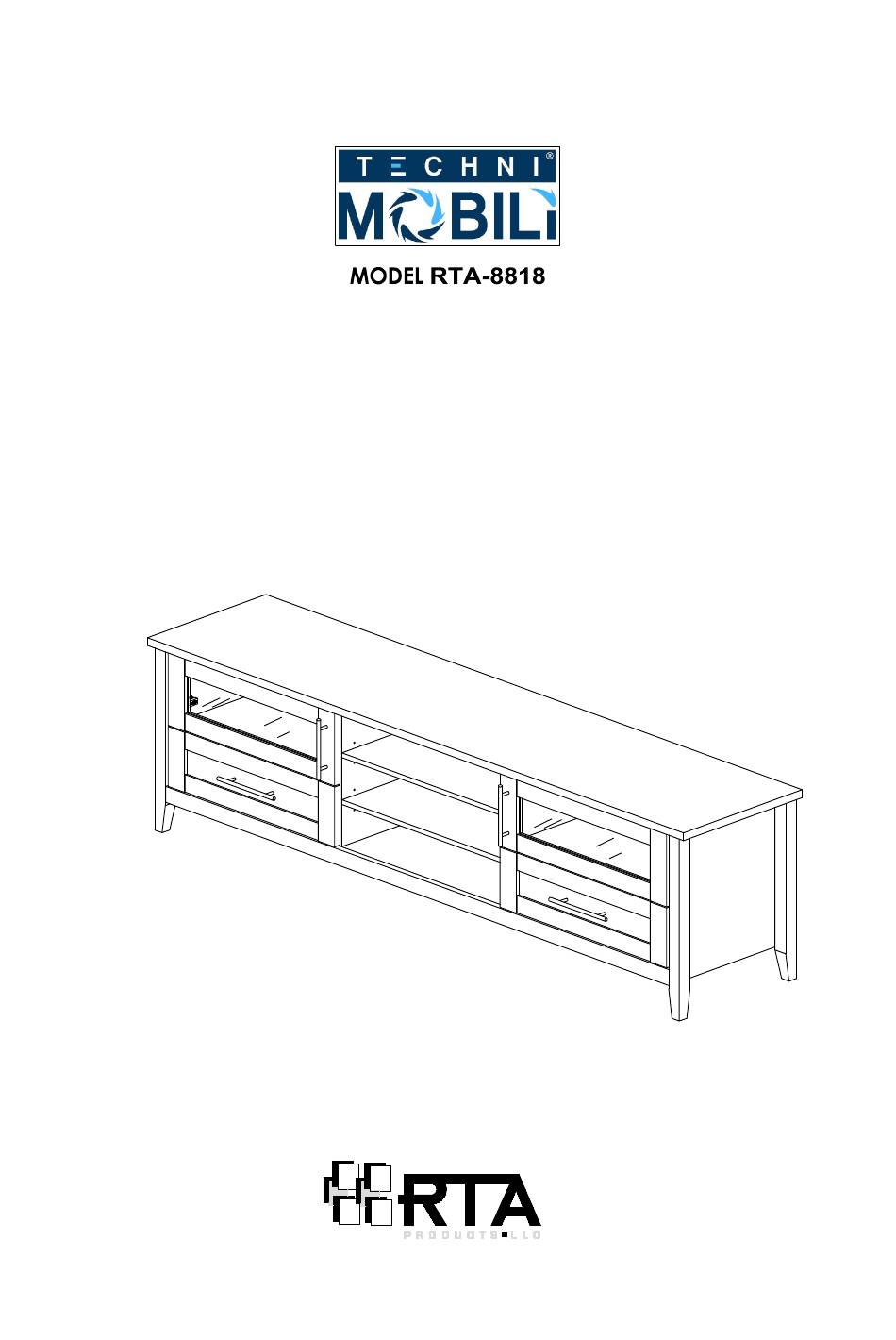

- Page 1 ASSEMBLY INSTRUCTIONS Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference.
- Page 4 PART QTY. ITEM PART QTY. ITEM 36Pcs 8Pcs Wooden Pin Metal Pin Cam Lock & 12Pcs Plastic Cap 24Sets Bolt Sets Right Screw - 5 x 8mm 8Pcs (Euro Screw) 2Sets Sliders 16Pcs Screw - 3.5 x 15mm Sets 16Pcs Screw - TP 10#x1/2'' Left 8Pcs...
- Page 7 Hinge Separates Into Use Screwdriver Whole Hinge Set Parts To Separate...
- Page 9 Be careful if turning item over to do this step! - Secure the panel (J) to the bottom and sides of the stand using L brackets (9) and screws (4) as shown, then attach the Plastic Feet (10).
- Page 11 - Attach the back panel (Q) with its finished surface facing towards the inside of the stand, using Nails (8) as shown above. The plain surface will face the outside. - Assemble drawer panel (K) to (M) and (N) with cam lock (2), then insert drawer bottom (P) in between the 3 panels as shown above.
- Page 12 Please pay close attention to the correct position of the sliders, if installed wrong, the drawers won't fit inside the stand!
- Page 13 Assemble the doors (I) to the stand, and adjust their alignment as shown above if necessary.
