Software
By clicking twice within a column, the connection principle and the
technical data of the resource are displayed. This function is only possible if
a question mark appears with the cursor.
You can export the set configuration as a text file. Click on "file" and save
the configuration as a .txt file with "Export information to file...". You can
then print the configuration or use it for other boards.
Once you have controlled the registration, you can quit the window of
ADDevice Manager. The board is ready to operate.
6.1.2 Changing the registration of a board
You can change the current board configuration with ADDIREG
Description of the ADDIREG program
The program is automatically installed with ADDIPACK.
Start ADDIREG under Start/Programme/ADDIPACK/ADDIREG.
IMPORTANT!
i
First quit all the applications (programs) which use the board
before starting the ADDIREG program.
In the main window of ADDIREG the fields "Insert" and "Clear" are not
available for the board.

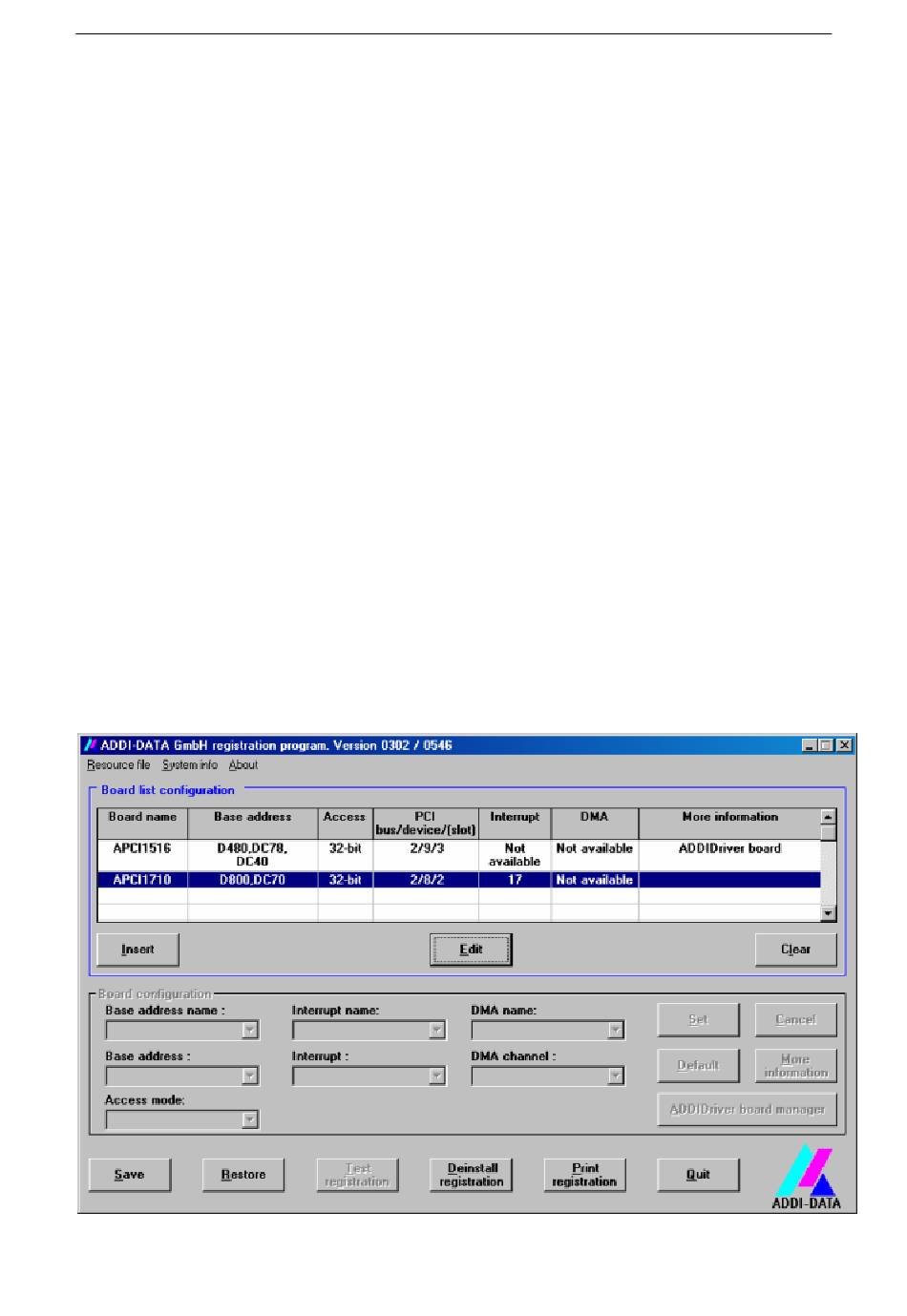

Fig. 6-3: ADDIREG registration program (example)
22
APCI-3xxx
