Introduction
This hardened UL60950-1 certified high power POE+ is designed especially for IP
surveillance, traffic monitoring and for a broad range of applications. It accepts 3 power input
sources: PW1, PW2, and Power DIN (via external power adapter) for 48-56VDC power input.
The four PoE+ ports can be used to provide power and data for a variety of PoE devices. It
can be used as a stand-alone device for buses, trucks, and other vehicles for surveillance
purposes. It can also be cascaded/daisy-chained to other devices to cover wider areas via the
uplink ports.

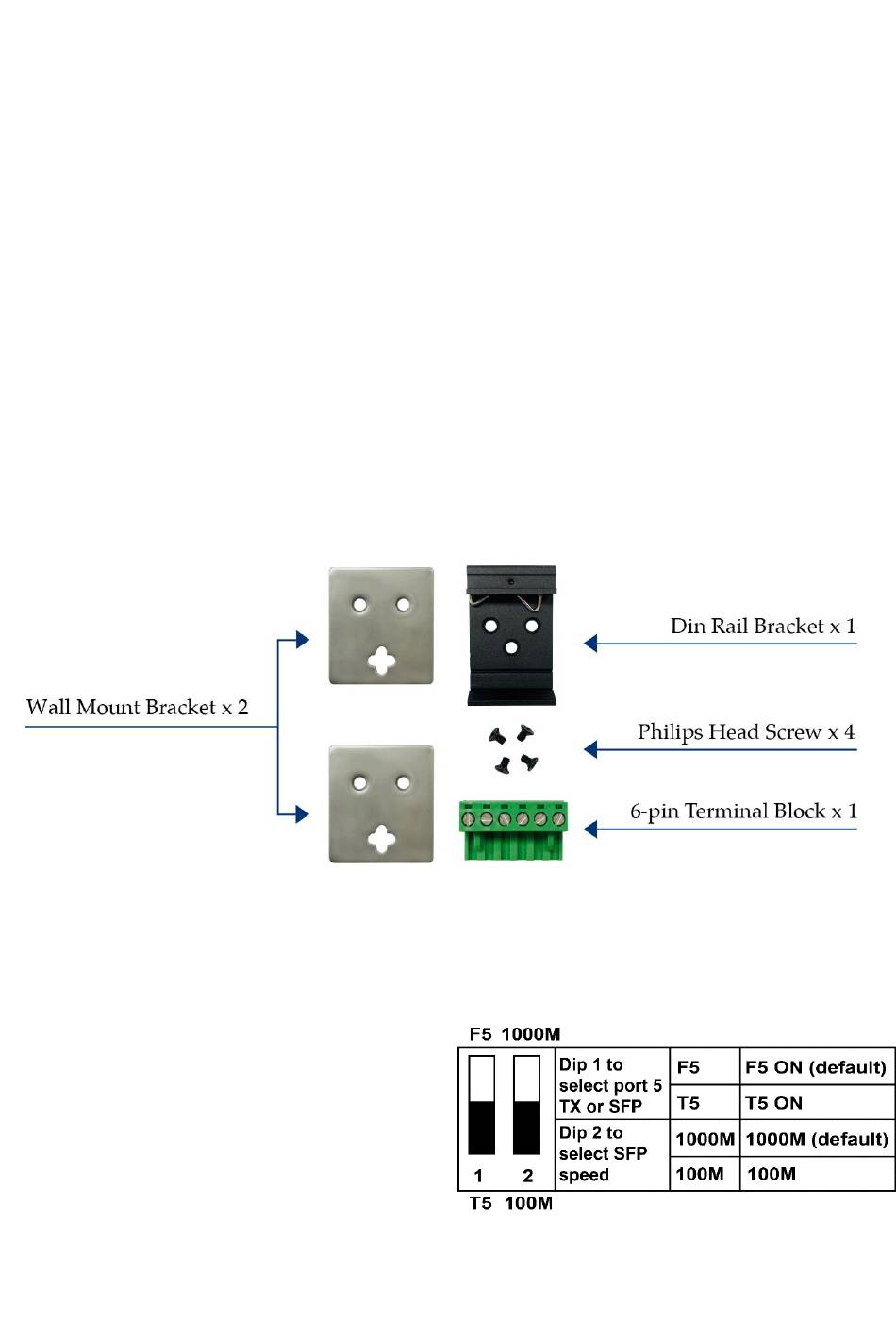

Installation package

This unit can be din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted
brackets are included.

Dip switch function

This unit is equipped with two dip switches,
located on the front panel. Adjusting the dip
switches will change the default function of
this unit. The default manufacturer setting is
SFP for port 5, and 1000M speeds for both
port 5 and port 6 SFP ports. More details are
shown in the chart:
