Led Indicator - LevelOne IES-0610 V2 User Manual

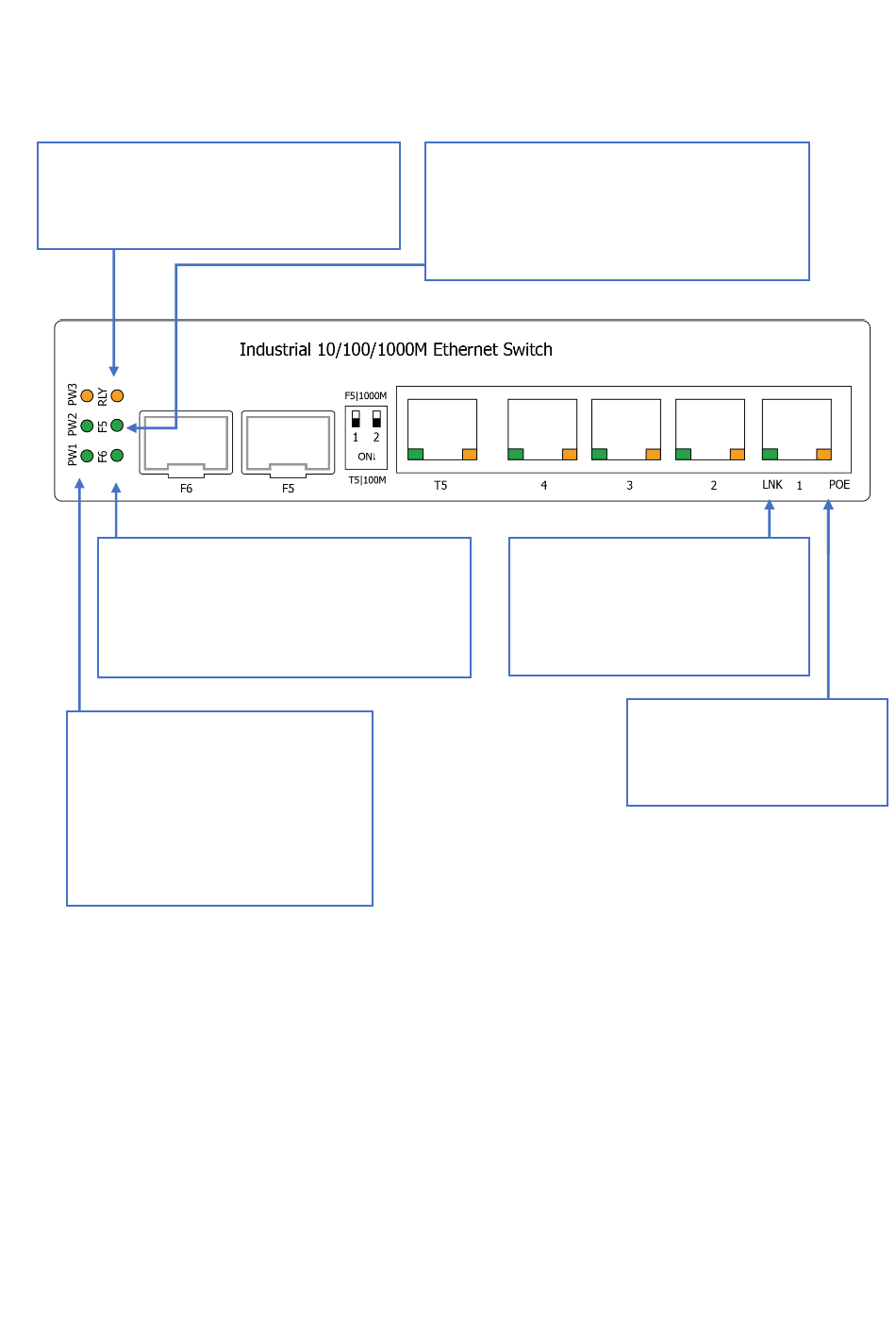

LED indicator

RLY (Amber)
ON – Alarm Relay is connected
OFF –Alarm Relay is disconnected
F6 (Green)
ON – port 6 SFP fiber is detected
OFF – port 6 SFP fiber is not detected.
Flashing – port 6 SFP fiber is active
PW1 (Green)
ON - V1+, V1- is connected
PW2 (Green)
ON - V2+, V2- is connected
PW3 (Amber)
ON - Power DIN is connected
OFF - Power DIN is
disconnected
F5 (Green)
ON – port 5 SFP fiber is detected
OFF –port 5 SFP fiber is not detected.
Flashing – port 5 SFP fiber is active
LNK (Green)
ON—TX link is detected
OFF – TX port is not detected
Flashing – TX port is active
4
POE (Amber)
ON – POE functioning.
OFF – POE off
