Installation package

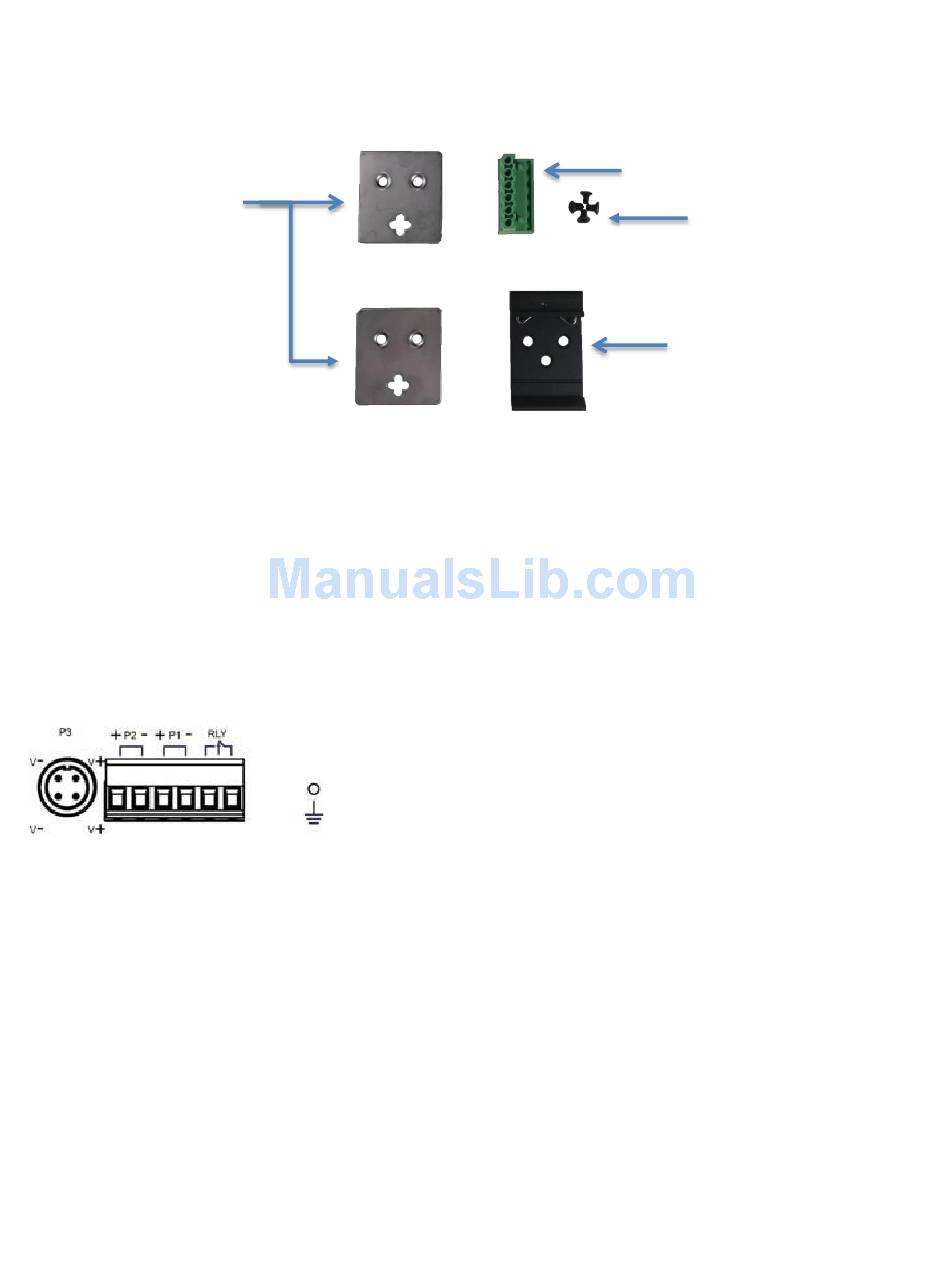

This unit can be din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted brackets are included.
Wall mount bracket x 2
Power connection
This unit provides 6 pin terminal block. The PoE port can be operated from 48-56VDC power source input.
Always make sure your input voltage is within this supported voltage range .
WARNING – any exceeded input voltage will not make this unit function and may damage this unit.
This unit comes with 3 power input sources. P1, P2, and P3
To make power connection – Follow the printed polarity for P1+, P1-, P2+, P2-, and ground. Connect positive
Power connecting procedure:
STEP 1 – Pull out 6 pin terminal block.
STEP 2 – Connect wire to P1+, P1-, or P2+, P2-, and Ground the neutral wire to the ground screw.
STEP 3– Plug back 6 pin terminal block to its place.
Or, Connect the P3 power DIN from external power adopter.
WARNING –
Always ground the power source to maintain a clean power input. Due to too many cheap made power
supplies, it creates too much noise, and it will cause the power input fluctuates when connect to this unit.
To avoid this, always ground the power source to gain a clean power input.
wire to P1+ or P2+, connect negative wire to P1- or P2-, also connect
neutral wire to the ground screw as shown.
Relay -- You may use 24V@1A relay connection to your external
device for special purpose. When 2 powers are connected, the relay
is in OPEN mode. If only one of the power source is connected, the
relay change to SHORT mode. This Relay will only work with P1 and
P2. It is independent to P3
2
6 pin Terminal Block x1
Philips Head Screw x 4
Din Rail Bracket x 1
