Installing external antenna and lightning surge arrestor
procedures for the United States of America

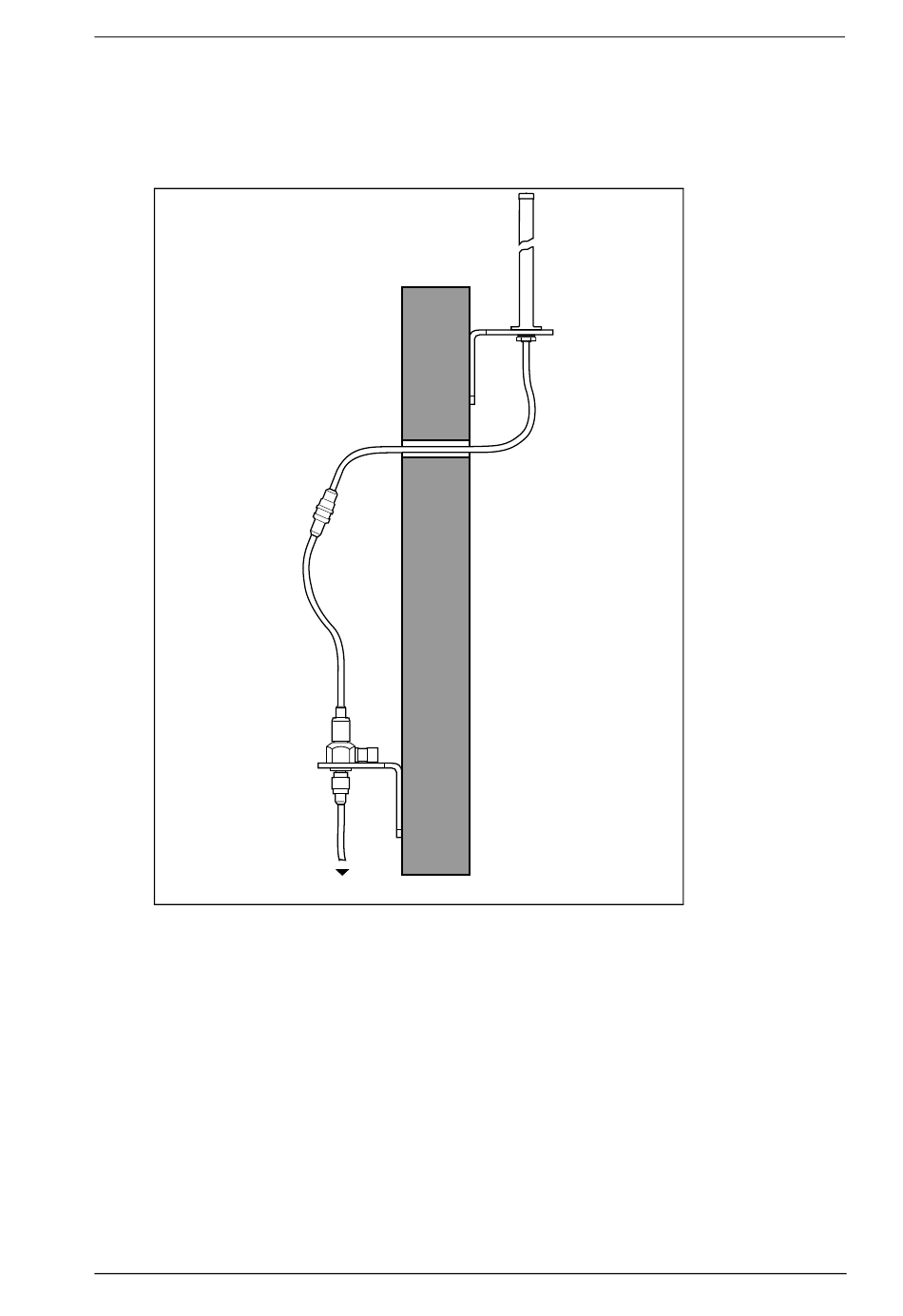

Installed antenna and lightning surge arrestor (USA)
Back to back
proprietary
BNC connectors
Lightning surge arrestor
with mounting bracket
to Base Station or proprietary extension cable
To ensure only recommended antennas are used:
• the external antenna connectors on the base station are
special proprietary BNC connectors
• antennas are supplied with cables already attached and
terminated with special proprietary BNC plugs to join with
the connector on the base station
• cables are not supplied with exterior antennas
P0941568 01
Antenna
Wall
Mounting bracket
