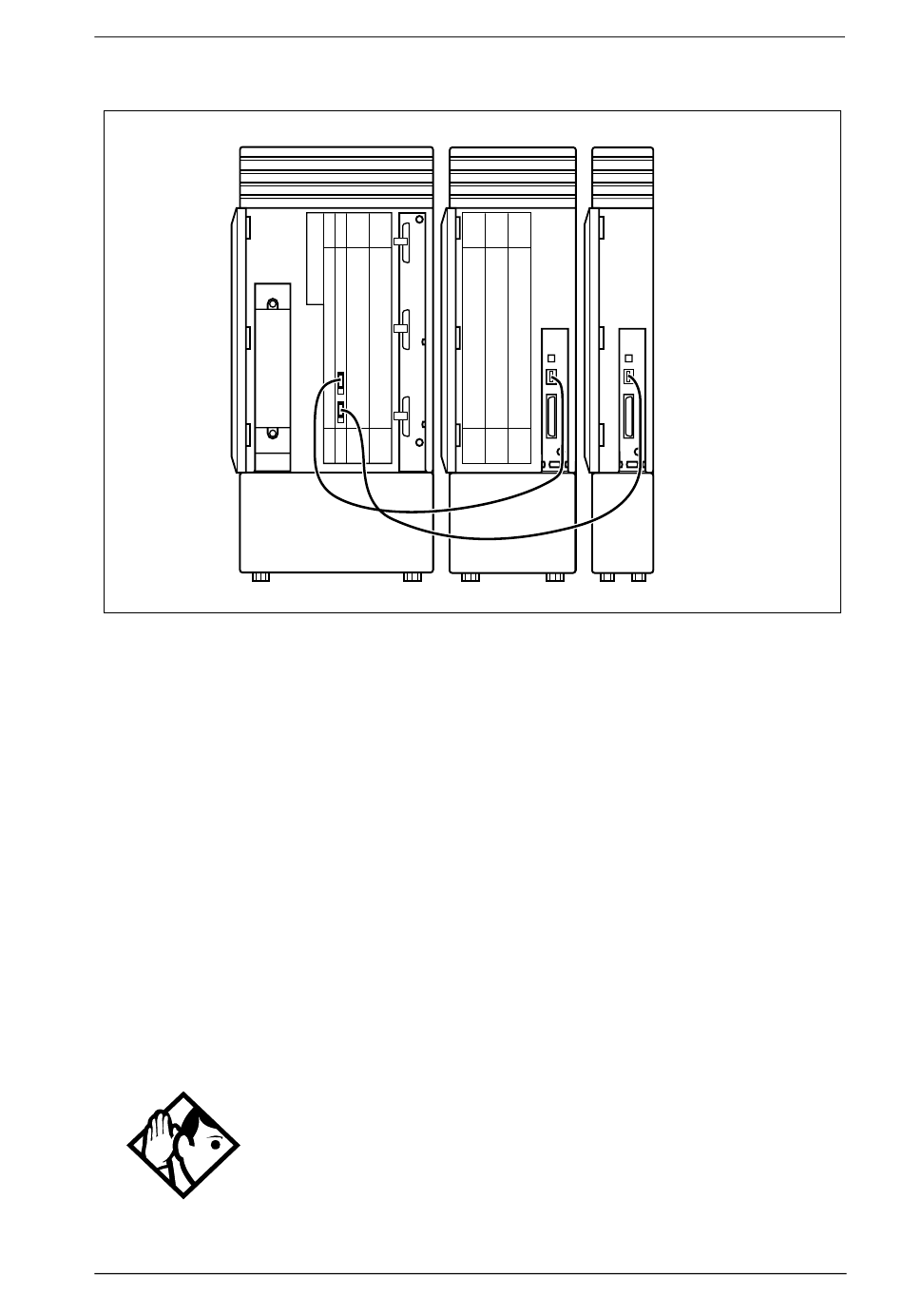

Two-port Expansion Cartridge
On a maxi system
A system expanded to eight ports (maxi size) includes one
6-port expansion cartridge with fiber ports numbered 3 to 8,
and 1 and 2 on the ICS. The base stations must be physically
connected, via a Station Module, to fiber ports 7 and 8
only.There is a maximum number of two Station Modules per
base station. Refer to Six-port Expansion Cartridge with
Companion on page 10
If only one Station Module supporting base stations is
required, connect it to the highest-numbered port (port 8).
Tip -
Station Modules supporting base stations, connect
Trunk Modules starting at port 6 and working down.
Connect Station Modules for the desk sets beginning at
port 3 and working up.
P0941568 01
ICS (modules 1 and 2)
If Both ports 7 and 8 are used for connecting
Planning the installation / 9
TM4
SM3
Modular ICS 5.0 Companion Installer Guide
