10 / Planning the installation

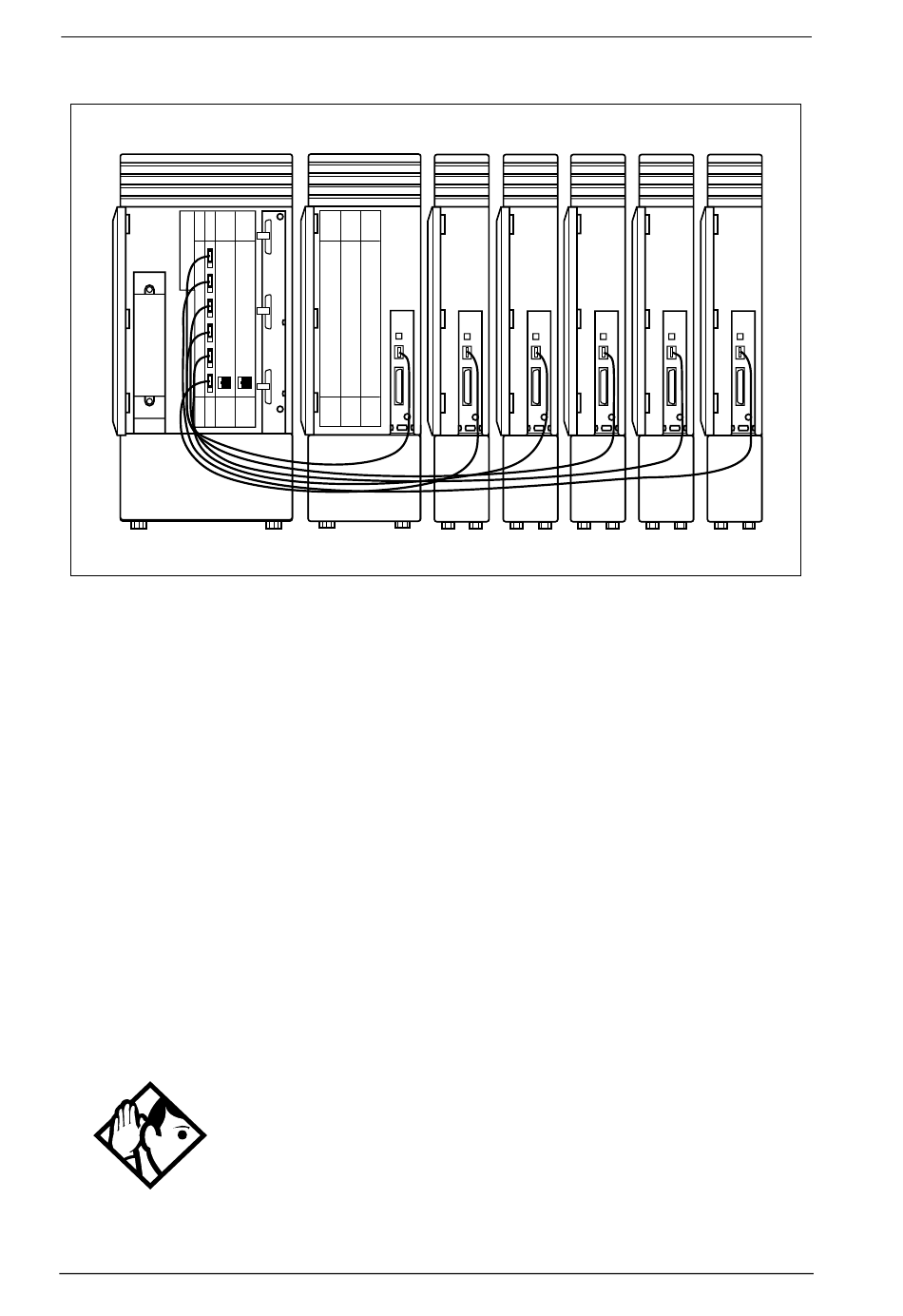

Six-port Expansion Cartridge with Companion
ICS (modules 1 and 2)
On a mega system
Keep in mind that 10 station modules is the limit for regular
Norstar sets, and two station modules for Companion base
stations is the limit on an XC configuration.
For example, a system expanded to 14 ports (mega size)
includes two 6-port expansion cartridges with fiber ports
numbered 3 to 14 on the expansion cartridges, and 1 and 2 on
the ICS. The base stations must be physically connected to
fiber ports 13 and 14 only. 12-port Expansion Cartridge with
Companion on page 11
Tip -
Modules 13 and 14 are reserved for base stations only.
Modular ICS 5.0 Companion Installer Guide
TM8
SM3
In the fully expanded mega configuration, Station
SM4
SM5
SM6
SM7
P0941568 01
