Summary of Contents for SMITH SYSTEM GREEGUARD 24010

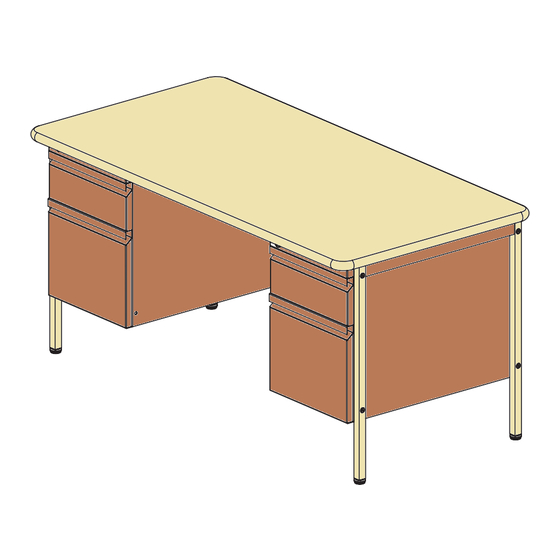

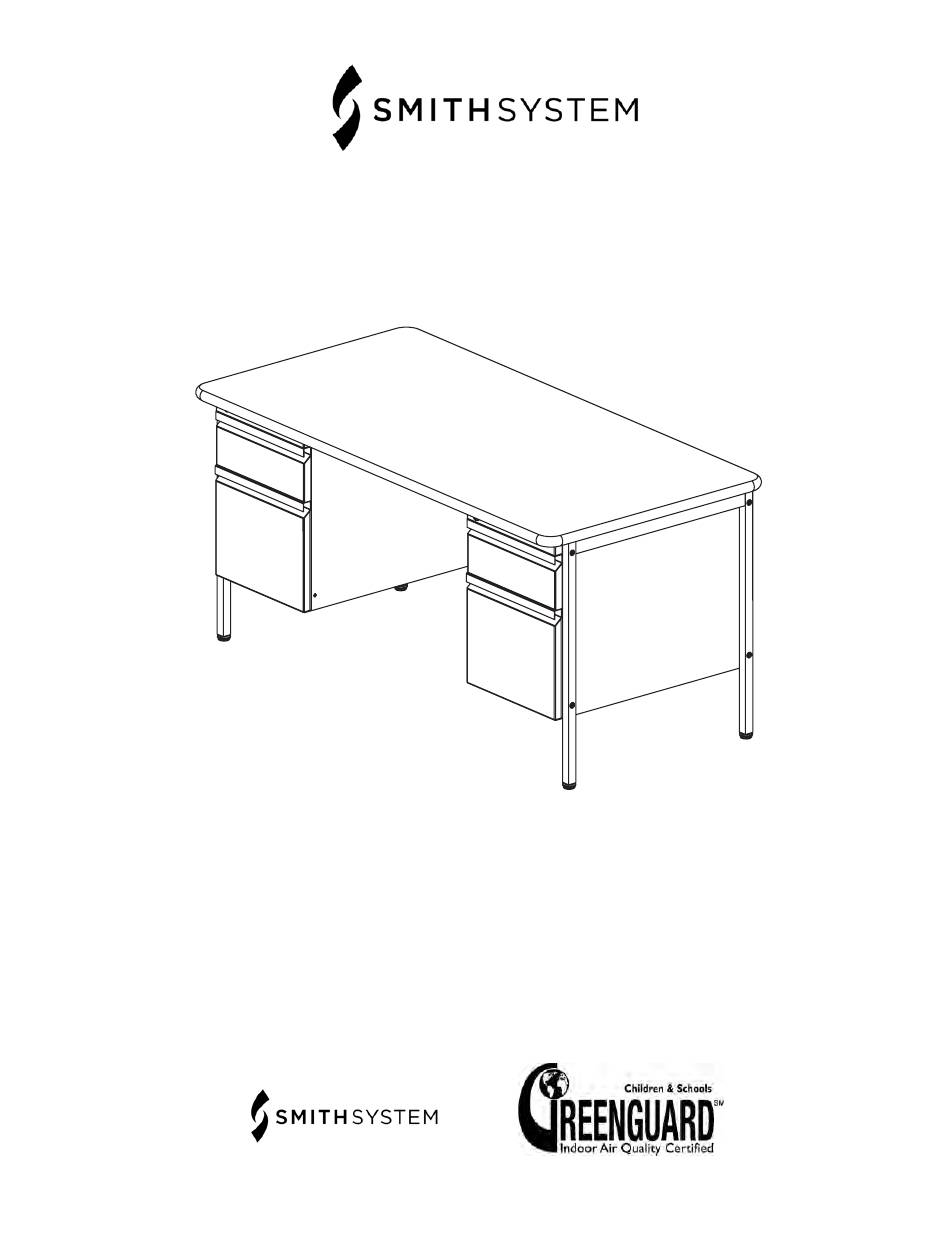

- Page 1 TEACHER DESK - DOUBLE DRAWER PED MODEL 24010 If you have damaged or missing components please contact customer service. 800-328-1061 Form #179821 www.smithsystem.com 03/2008...
- Page 2 PARTS LIST DESCRIPTION: DRAWER PED QTY PER UNIT: PART NUMBER: 19180 COLORS: BLA; CMP; PLT DESCRIPTION: 30" X 60" TOP QTY PER UNIT: PART NUMBER: 68657 COLORS: CHOICE OF LAMINATE; CHOICE OF T-MOLD DOUBLE PED LEG SET (INCLUDES HDWR AND MODESTY PANEL) DESCRIPTION: QTY PER UNIT: 19182...
- Page 3 LAY THE TOP UPSIDE DOWN, WITH THE CUT OF THE T-MOLD AT THE BACK AND MAKE SURE THE LAMINATE IS FACE DOWN AND THE PRE-ATTACHED MOUNTING PLATES ARE FACING UPWARDS. BACK T-MOLD CUT PRE-ATTACHED PLATES FRONT REMOVE BOTH DRAWER PEDS FROM THEIR CARTONS. TURN THEM UPSIDE DOWN SO THE KEYHOLE-SHAPED SLOTS ARE FACE DOWN.
- Page 4 REPEAT STEPS 2 AND 3 WITH THE REMAINING DRAWER PED. SLIDE FORWARD ATTACH LEGS TO DRAWER PEDS USING CONNECTOR BOLTS HARDWARE PACK (PROVIDED IN BOX WITH LEG SET) 35MM CONNECTOR BOLTS (4 PER SIDE) INSERT BOLT HERE INSERT BOLT HERE REPEAT WITH OTHER LEG If you have damaged or missing components please contact customer service.
- Page 5 ATTACH PANEL TO DRAWER PEDS. ATTACH PANEL TO THIS DRAWER PED AND THEN TO OTHER DRAWER PED USING THE 4 MACHINE SCREWS PROVIDED IN THE HARDWARE PACK HARDWARE PACK (PROVIDED IN BOX WITH LEG SET) MACHINE SCREWS TO ATTACH PANEL TO DRAWER PEDS ATTACH PANEL TO TOP.
- Page 6 8. ATTACH THE LEGS TO THE TOP. 2.5" SCREWS HARDWARE PACK (PROVIDED IN BOX WITH LEG SET) USE 2.5" SCREWS TO ATTACH EACH LEG TO THE TOP. 3 SCREWS PER LEG DETAIL A SCALE 1 : 4 9. THE UNIT IS NOW ASSEMBLED. YOU SHOULD NOT HAVE ANY REMAINING SCREWS IN THE HARDWARE PACK.
