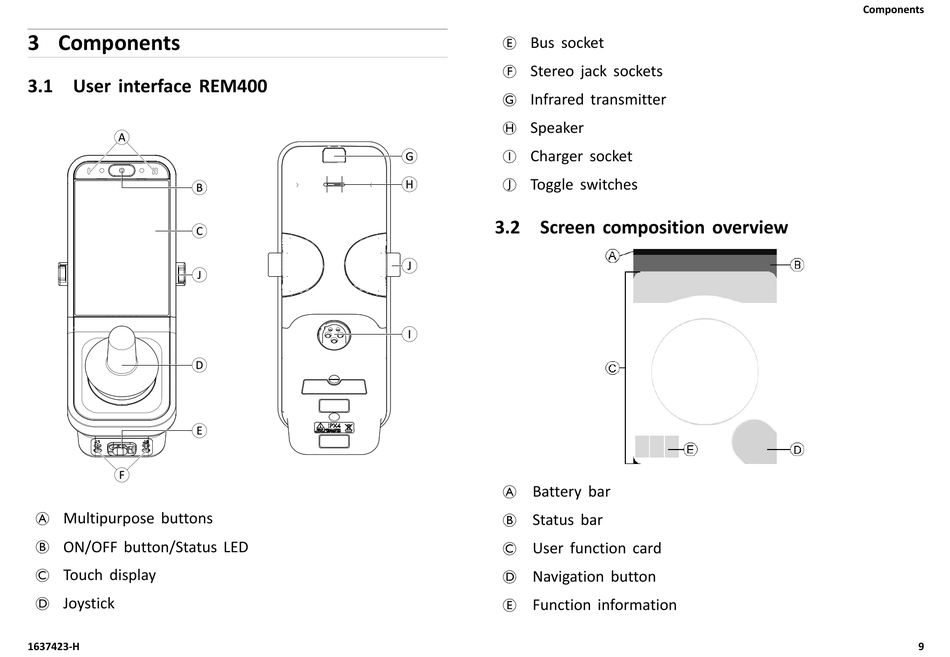

3 Components
3.1 User interface REM400
A Multipurpose buttons
B ON/OFF button/Status LED
C Touch display
D Joystick
1637423-H
E Bus socket
F Stereo jack sockets
G Infrared transmitter
H Speaker
I Charger socket
J Toggle switches
3.2 Screen composition overview
A Battery bar
B Status bar
C User function card
D Navigation button
E Function information
