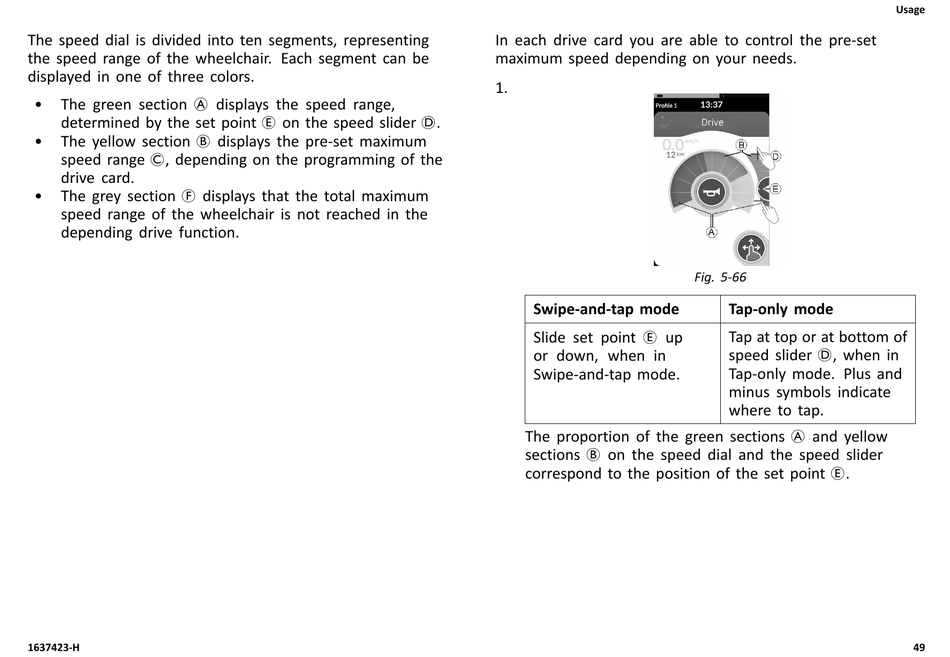

The speed dial is divided into ten segments, representing
the speed range of the wheelchair. Each segment can be
displayed in one of three colors.
• The green section A displays the speed range,
determined by the set point E on the speed slider D.
• The yellow section B displays the pre-set maximum
speed range C, depending on the programming of the
drive card.
• The grey section F displays that the total maximum
speed range of the wheelchair is not reached in the
depending drive function.
1637423-H
In each drive card you are able to control the pre-set
maximum speed depending on your needs.
1.
Swipe-and-tap mode
Slide set point E up
or down, when in
Swipe-and-tap mode.
The proportion of the green sections A and yellow
sections B on the speed dial and the speed slider
correspond to the position of the set point E.
Fig. 5-66
Tap-only mode
Tap at top or at bottom of
speed slider D, when in
Tap-only mode. Plus and
minus symbols indicate
where to tap.
