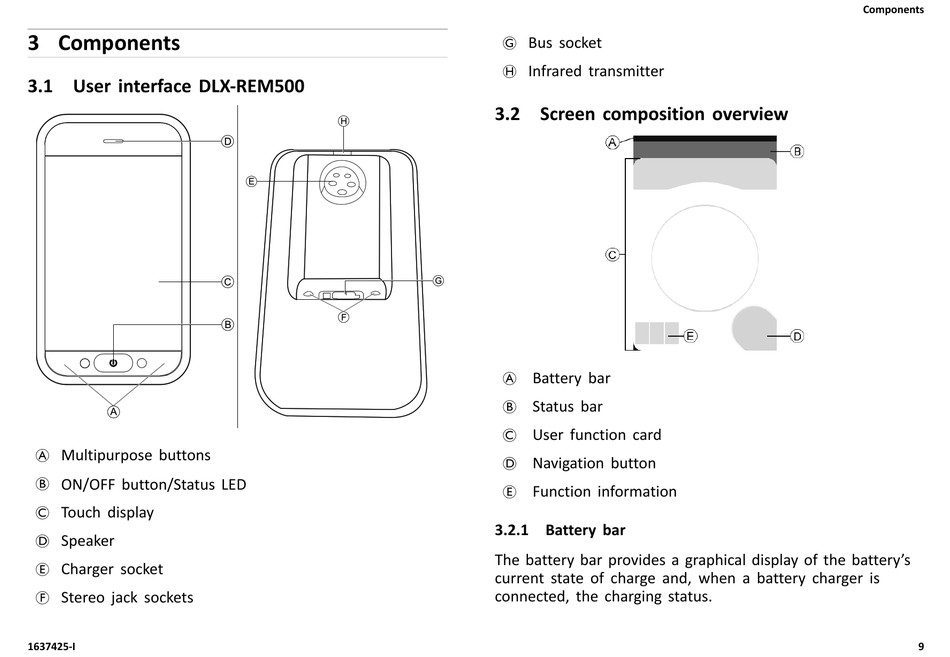

3 Components
3.1 User interface DLX-REM500
A Multipurpose buttons
B ON/OFF button/Status LED
C Touch display
D Speaker
E Charger socket
F Stereo jack sockets
1637425-I
G Bus socket
H Infrared transmitter
3.2 Screen composition overview
A Battery bar
B Status bar
C User function card
D Navigation button
E Function information
3.2.1 Battery bar
The battery bar provides a graphical display of the battery's
current state of charge and, when a battery charger is
connected, the charging status.
Components
9
