Operating The Horn; Operating Lighting Functions And Horn Via Utility Function Card - Invacare LiNX DLX-REM400 User Manual

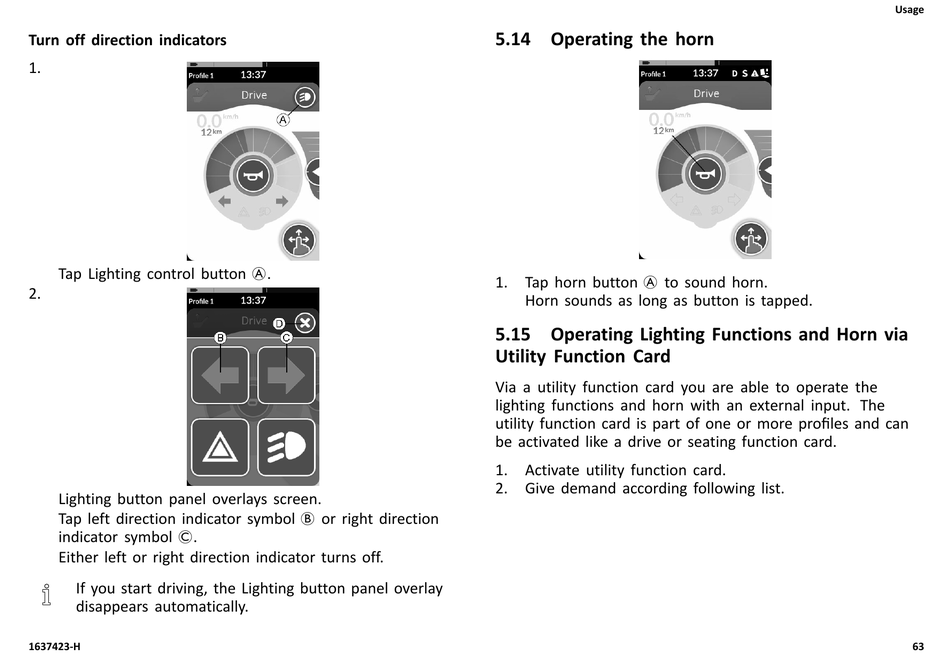

Turn off direction indicators
1.
Tap Lighting control button A.
2.
Lighting button panel overlays screen.
Tap left direction indicator symbol B or right direction
indicator symbol C.
Either left or right direction indicator turns off.
If you start driving, the Lighting button panel overlay
disappears automatically.
1637423-H

5.14 Operating the horn

1. Tap horn button A to sound horn.
Horn sounds as long as button is tapped.
5.15 Operating Lighting Functions and Horn via
Utility Function Card
Via a utility function card you are able to operate the
lighting functions and horn with an external input. The
utility function card is part of one or more profiles and can
be activated like a drive or seating function card.
1. Activate utility function card.
2. Give demand according following list.
Usage
63
