Invacare® LiNX

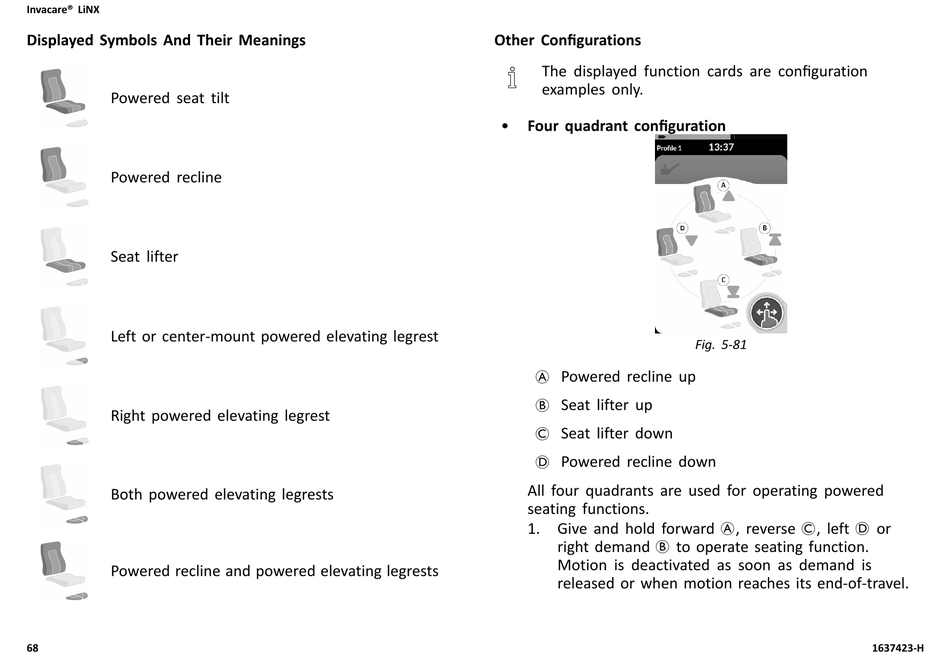

Displayed Symbols And Their Meanings
Powered seat tilt
Powered recline
Seat lifter
Left or center-mount powered elevating legrest
Right powered elevating legrest
Both powered elevating legrests
Powered recline and powered elevating legrests
68
Other Configurations
The displayed function cards are configuration
examples only.
• Four quadrant configuration
A Powered recline up
B Seat lifter up
C Seat lifter down
D Powered recline down
All four quadrants are used for operating powered
seating functions.
1. Give and hold forward A, reverse C, left D or
right demand B to operate seating function.
Motion is deactivated as soon as demand is
released or when motion reaches its end-of-travel.
Fig. 5-81
