3.6.3 HID ProxPro Keypad/Proxy Reader

The proxy reader/keypad interfaces with the ECU via an RJ45 cable. The ECU has five circular openings (two on top,
two on the side and one on bottom) where the RJ45 cable can be inserted. The RJ45 jack is located on the inside of
the ECU casing. Insert the RJ45 cable through one of the openings and connect it to the RJ45 jack labeled "Proxy
A" or "Proxy B".

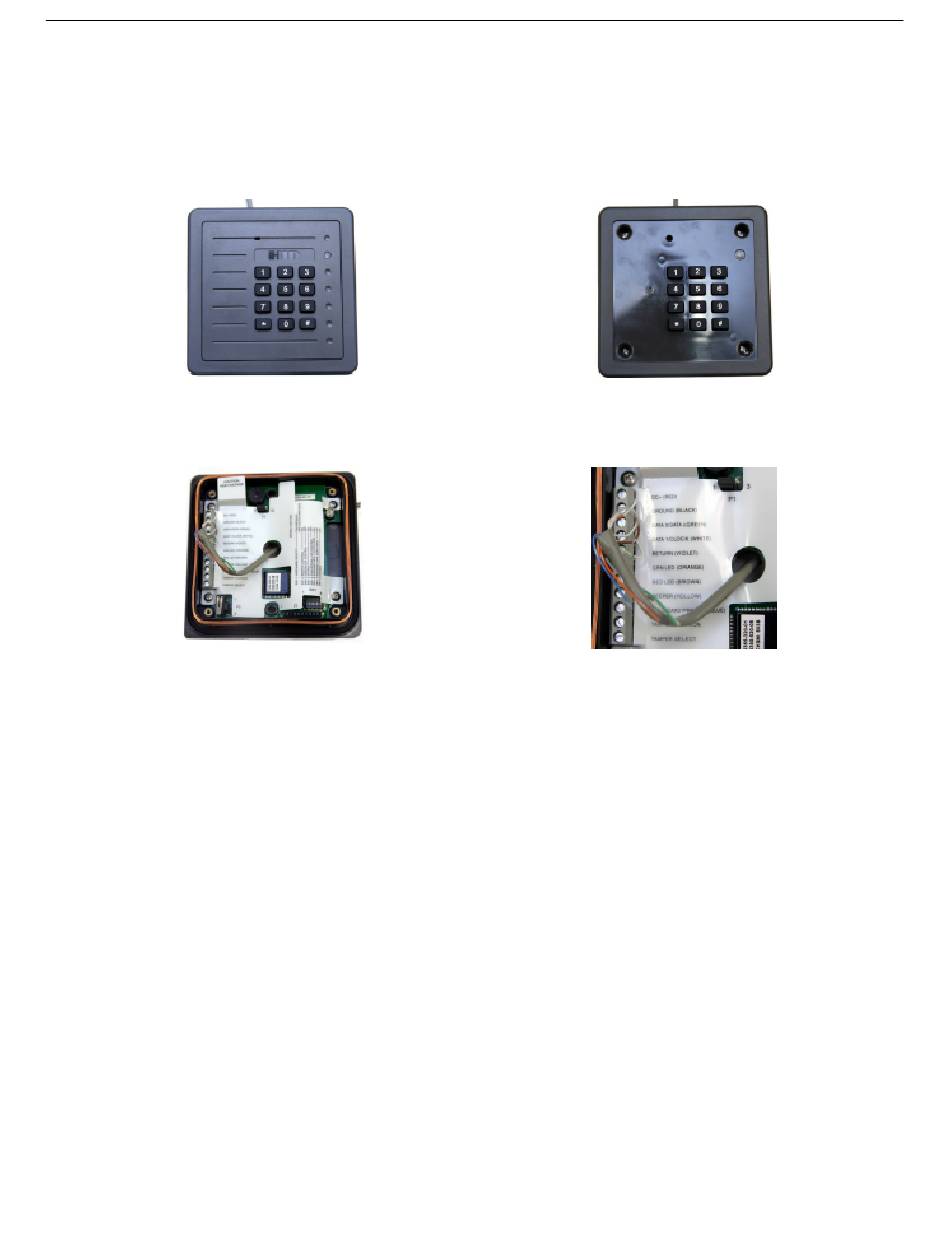

First, remove the front plate of the ProxPro unit.
After the front plate has been removed, 4 holes
containing screws will be revealed. Remove all 4
screws.
Match the corresponding wire to the screw connector.
From the inside of the unit, locate the screw
See pinout table below for additional information.
connectors. This is where you'll attach the wires to the
RJ45 connector.
