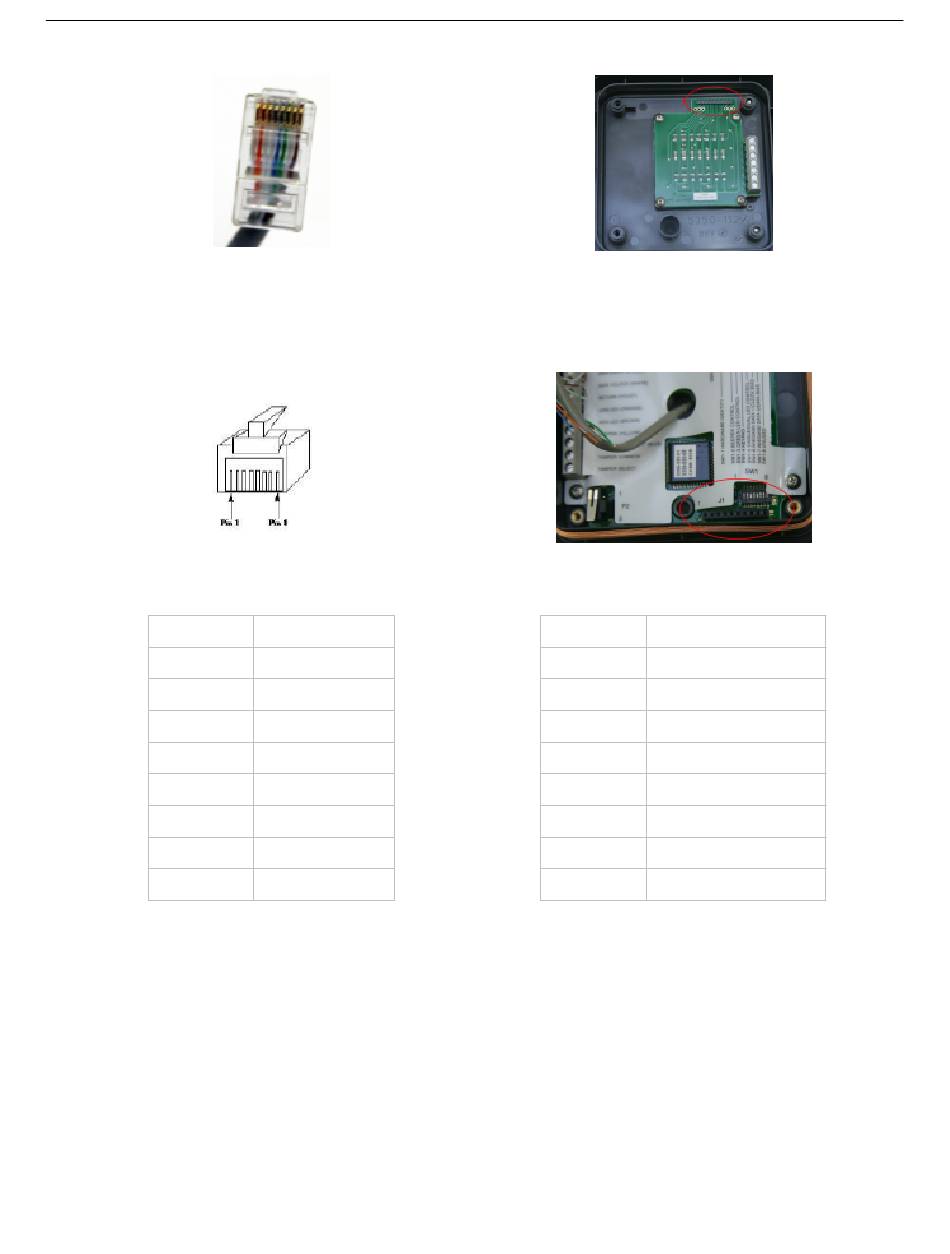

Match the corresponding wire to the appropriate pin on
the RJ45 connector. See pinout table below for
additional information.
RJ45 Connector
RJ45 Connector Pinout
RJ45 Pin #
1
2
3
4
5
6
7
8
4

Speaker and LEDs

Function
DC+ (Red)
No Connect
Data 1
Data 0
No Connect
No Connect
No Connect
Ground
Put the two pieces back together. First, on the inside
cover, locate the 10-pin male connector. This
connector will need to correspond to the 10-pin female
connector on the board on the base unit (image
below).
ProxPro Connector Pinout
Connector*
1
2
3 Data 1/Clock (WHITE)
4 Data 0/Data (GREEN)
5
6
7
8
*Starts from DC+ (RED) and goes down vertically
Function
DC+ (RED)
Ground (BLACK)
No Connect
No Connect
No Connect
No Connect
