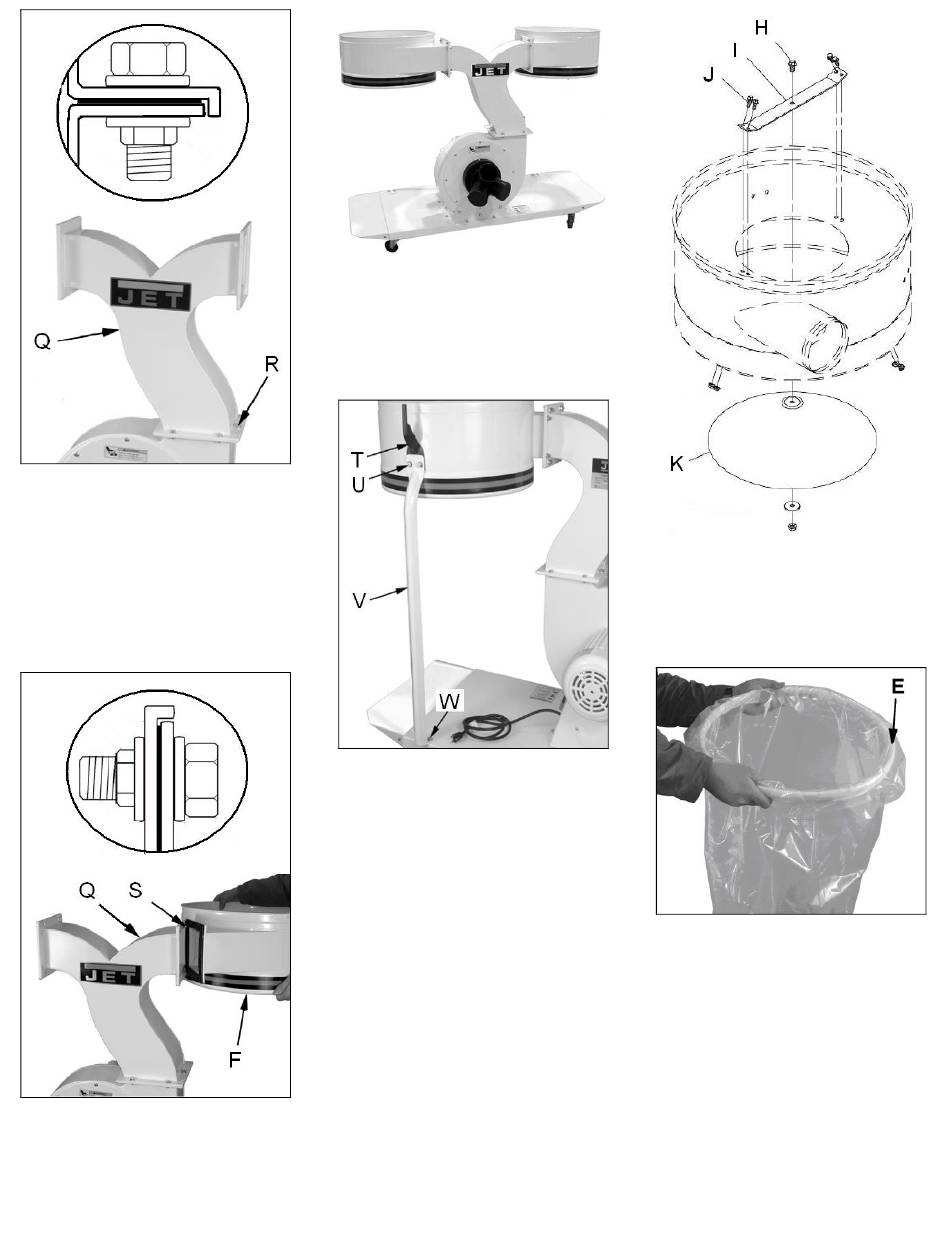

Jet DC-1900A Operating Instructions Manual page 5

Fig 4
Connector Housing:
Place an upper gasket (S, Fig 5) and
attach bag housing (F) with hex cap
screws, washers and nuts.
Fig 5
Refere to Fig 6 for correct assembly.
Fig 6
Support bracket:
Attach support bracket (V, Fig 7) to the
base with 2 hex head screws (W) and
washers.
Fig 7
Insert bag hanger bracket (T) and
attach with 2 hex head screws (U) and
washers.
Cone Assemby:
Mount the cone support bracket (I, Fig
8) to the housing with 4 hex cap
screws (J) and nuts.
Mount the cone (K) from beneath with
hex cap screw (H), washer and nut.
7
Fig 8
Collector bag:
Fold the plastic bag over the top of the
snap ring (E, Fig 9).
Fig 9
Insert the snap ring (E) of the collector
bag into the bottom of the housing at
an angle. Pull down until it engages in
the grove (F, Fig 10)
