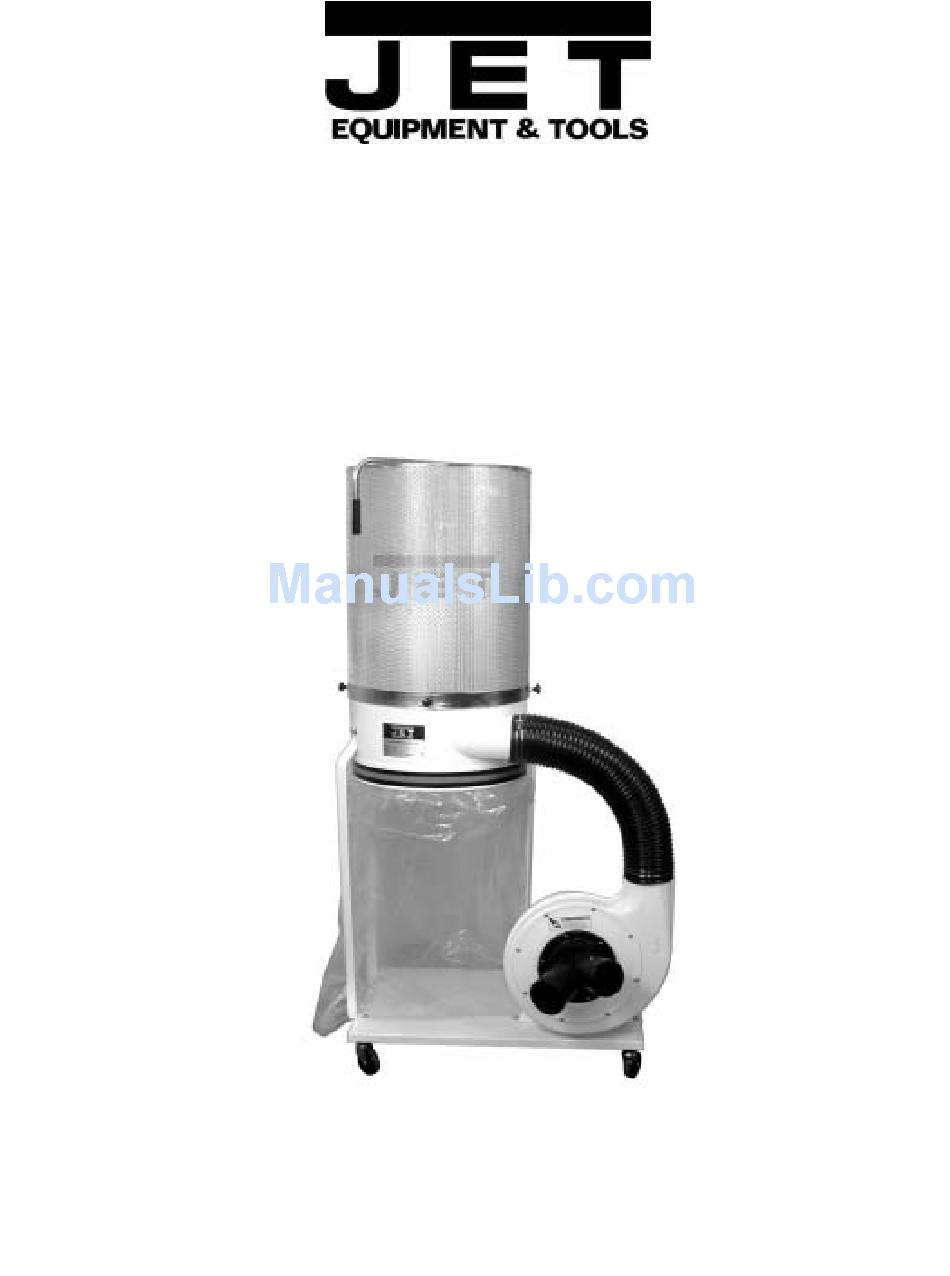

- Page 1 DC-1100C Dust Collector JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com OWNER'S MANUAL P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com Phone:253-351-6000 Fax: 1-800-274-6840 M-708626C 1/02...
- Page 2 This manual has been prepared for the owner and operators of JET’S DC-1100C. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine.
- Page 3 Use only as described in this manual. Use only manufacturer’s recommended attachments. Do not use with damaged cord or plug. If Dust Collector is not working as it should, has been dropped, damaged, left outdoor, or dropped in water, return it to a service center.
- Page 4 115 Volt Operation As received from the factory, your dust collector is ready to run at 115 volt operation. This dust collector, when wired for 115 volts, is intended for use on a circuit that has an outlet and a plug that looks the one illustrated in Figure A.
- Page 5 1. Disconnect the machine from the power source. 2. This dust collector is supplied with four motor leads that are connected for 115V operation, as shown in Figure A. Reconnect these four motor leads for 230V operation, as shown in Figure B.
- Page 6 On-Off Switch Padlock Model No. PB-1, Stock No. 709012 To safeguard your machine from unauthorized operation and to avoid accidental starting by young children, the use of a padlock is highly recommended. JET model PB-1 is available from your local authorized JET distributor or by calling JET Equipment &...
- Page 7 Maintenance... 11 Cleaning the Filter Bag... 11 Removing the Collector Bag... 11 Motor... 11 Connecting the Dust collector to a Machine ... 11 Grounding the Dust Collection System... 11 Parts Breakdown and Parts List ... 13-15 Wiring Diagrams... 16 The specifications in this manual are given as general information and are not binding. JET Equipment &...
- Page 8 Remove all contents from the shipping carton. Report any damage to your distributor. Do not discard any shipping material until after the dust collector has been assembled and is running properly. Contents of the Shipping Cartons Canister Filter Box 1. Canister Filter 1.
- Page 9 2) to the base using four M8 x 16 hex cap bolts, four M8 flat washers (B, Fig. 2), and a 13mm wrench. WARNING The dust collector must be disconnected from the power source during assembly. Failure to comply may result in serious injury! 3.
- Page 10 4. Attach three support brackets (A, Fig. 4) to the base using six M8 x 16 hex cap bolts and six M8 flat washers (B, Fig. 4). Hand tighten only at this time. 5. Install the housing (A, Fig. 5) to two support brackets using four M8 x 16 hex cap bolts, eight M8 flat washers, and four M8 hex nuts (B, Fig.5).
- Page 11 7. Place the ring over the top of the plastic bag and fold over the bag approximately three inches, Figure 7. 8. Insert the snap ring (A, Fig. 8) of the collector bag into the bottom of the housing at an angle. 9.
- Page 12 Failure to comply may result in serious injury! The DC-1100C dust collector is rated at 115/230V, Prewired 115V. Use a plug and outlet rated at least 20 amps. The circuit for the machine should also be protected by at least a 20 amp circuit breaker or fuse.
- Page 13 Parts Breakdown for DC-1100C Dust Collector w/Canister Filter...
- Page 14 Parts List for the DC-1100C Dust Collector w/Canister Filter Index Part Description 1...708739... Filter..1 2...331052... Shaft..1 3...331012... Scraper..2 4...331015... Plate..2 5...331009... Support..1 6...ST049200 ... Tapping Screw...M4x8... 4 7...331050... Handle..1 8...NH101700...
- Page 15 Index Part Description 51 ...TS-1540061 ... Nut ...M8 ... 10 52 ...TS-0561031 ... Nut ...3/8”-16UNC... 4 53 ...TS-1490031... Hex Head Bolt ...M8x20..1 54 ...TS-1490011 ... Hex Head Bolt ...M8x12... 4 55 ...TS-1490021 ... Hex Head Bolt ...M8x16... 16 56 ...TS-1490041 ... Hex Head Bolt ...M8x25... 4 57 ...TS-1554041 ...
- Page 16 Wiring Diagram...
