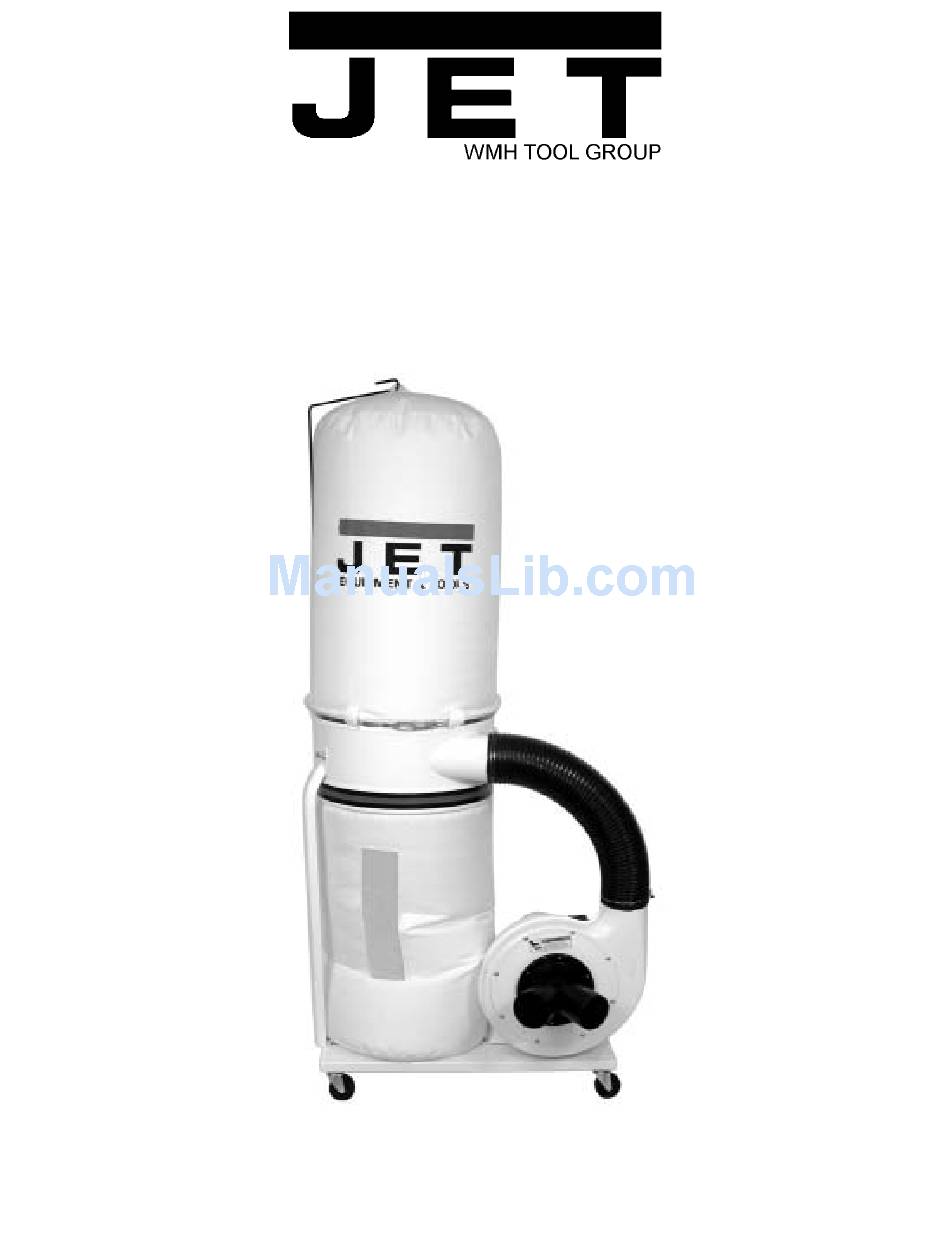

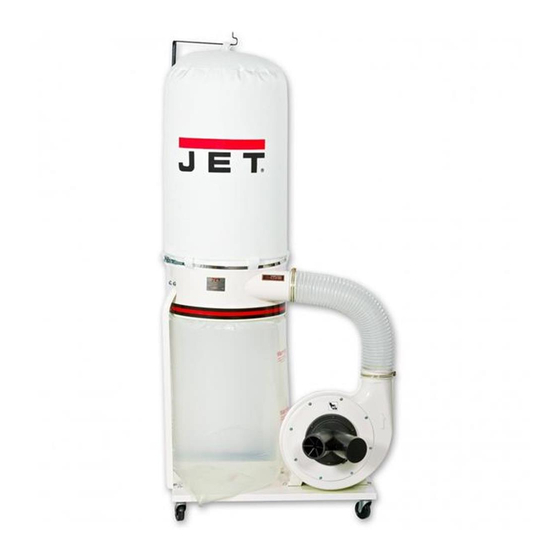

- Page 1 OWNER'S MANUAL DC-1100A Dust Collector WMH Tool Group www.wmhtoolgroup.com P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@wmhtoolgroup.com Phone:253-351-6000 Fax: 1-800-274-6840 M-708639 05/02...
-
Page 2: Warranty And Service
This manual has been prepared for the owner and operators of a JET DC-1100A. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine. -
Page 3: Warnings
Use only as described in this manual. Use only manufacturer’s recommended attachments. Do not use with damaged cord or plug. If Dust Collector is not working as it should, has been dropped, damaged, left outdoor, or dropped in water, return it to a service center. -
Page 4: Grounding Instructions
115 Volt Operation As received from the factory, your dust collector is ready to run at 115 volt operation. This dust collector, when wired for 115 volts, is intended for use on a circuit that has an outlet and a plug that looks the one illustrated in Figure A. -
Page 5: 230V Operation
1. Disconnect the machine from the power source. 2. This dust collector is supplied with four motor leads that are connected for 115V operation, as shown in Figure A. Reconnect these four motor leads for 230V operation, as shown in Figure B. -
Page 6: Padlock
On-Off Switch Padlock Model No. PB-1, Stock No. 709012 To safeguard your machine from unauthorized operation and to avoid accidental starting by young children, the use of a padlock is highly recommended. JET model PB-1 is available from your local authorized JET distributor or by calling JET Equipment &... -
Page 7: Table Of Contents
Maintenance... 12 Cleaning the Filter Bag... 12 Removing the Collector Bag... 12 Motor... 12 Connecting the Dust collector to a Machine ... 12 Grounding the Dust Collection System... 12 Parts Breakdown and Parts List ... 13-14 Wiring Diagrams... 15 The specifications in this manual are given as general information and are not binding. JET Equipment &... -
Page 8: Unpacking Dc-1100
Finish removing all contents from the shipping carton. Report any damage to your distributor. Do not discard any shipping material until after the dust collector has been assembled and is running properly. Contents of the Shipping Carton Bag Hanger Base... -
Page 9: Assembly
2) to the base using four M8 x 16 hex cap bolts, four M8 flat washers (B, Fig. 2), and a 1/2" or 13mm wrench. WARNING The dust collector must be disconnected from the power source during assembly. Failure to comply may result in serious injury! 3. - Page 10 4. Attach three support brackets (A, Fig. 4) to the base using six M8 x 16 hex cap bolts and six M8 flat washers (B, Fig. 4). Hand tighten only at this time. 5. Install the housing (A, Fig. 5) to two support brackets using four M8 x 16 hex cap bolts, eight M8 flat washers, and four M8 hex nuts (B, Fig.5).
-
Page 11: Electrical Connections
Failure to comply may result in serious injury! The DC-1100A dust collector is rated at 115/230V, Prewired 115V. Use a plug and outlet rated at least 20 amps. The circuit for the machine should also be protected by at least a 20 amp circuit breaker or fuse. -
Page 12: Maintenance
The dust collection system includes the dust collector and the hose, or duct work you use to connect the tools. The dust collector is grounded though the ground wire in the cord. The hose or duct work you use to connect the tool to the dust collector must also be grounded. -
Page 13: Parts Breakdown And Parts List
Parts Breakdown... - Page 14 ...DC1200-53... Grounding Label (not shown) ..1 ...DC1200-54... Direction Label (not shown) ..1 ...DC1100A-ID... I.D. Label (not shown)..1 ...DC1100-HP... Hardware Package (not shown) ..1 ...DC1100-WL ... Warning Label (not shown) ..1 Parts List for the DC-1100A Size Qty.
-
Page 15: Wiring Diagrams
Wiring Diagram...
