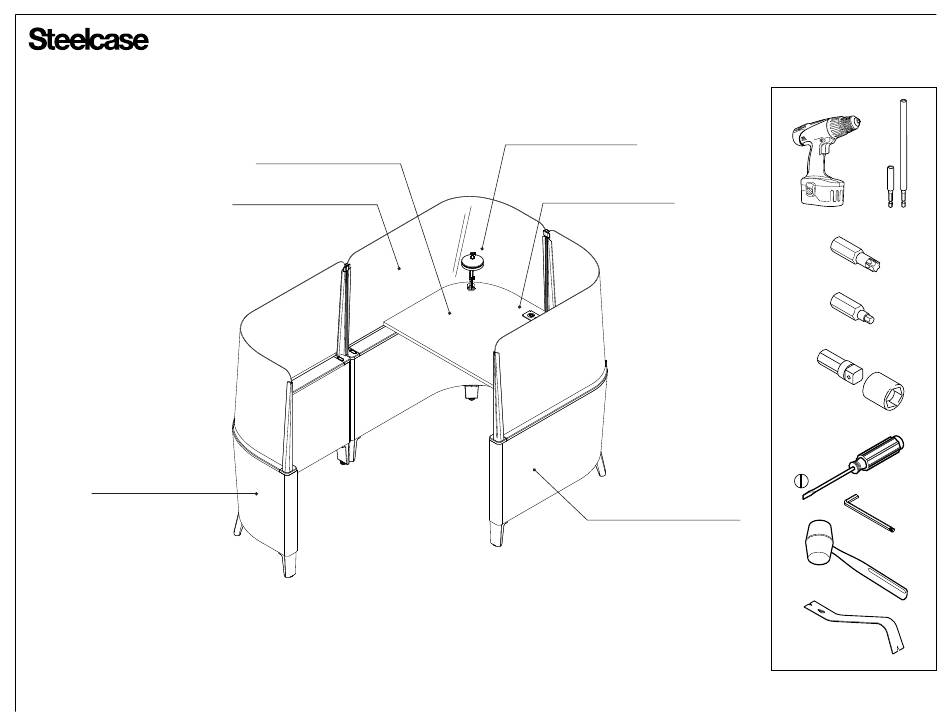

Brody Desk
™
®
Disassembly Direction
Lighting (see page 5)
Worksurface (see page 7)
Power (see page 6)
Screens (see page 2)
3" and 12"
BIT HOLDERS
T20, T30, T40 TORX
4mm, 5mm, 6mm HEX
8mm SOCKET
Extension (see page 8)
Base and Feet (see page 8)
3mm HEX
©
2019 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Page 1 of 9
Printed in U.S.A.
139077 Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brody Desk and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase Brody Desk

Summary of Contents for Steelcase Brody Desk

  • Page 1 Brody Desk ™ ® Disassembly Direction Lighting (see page 5) Worksurface (see page 7) Power (see page 6) Screens (see page 2) 3" and 12" BIT HOLDERS T20, T30, T40 TORX 4mm, 5mm, 6mm HEX 8mm SOCKET Extension (see page 8)
  • Page 2 ® SCREEN DISASSEMBLY Pry top caps off and discard. Remove all screws from the screen bases (T30 TORX + 12" BIT HOLDER). Loosen middle brackets (3mm HEX) if needed. Lift the screens from the base. Set aside. Remove the (2) screws (T30 TORX) from the middle brackets and discard.
  • Page 3 ® T30 TORX SCREEN DISASSEMBLY (continued) T30 TORX Remove all attaching screws (T30 TORX) from the mounting plates and discard. If screen(s) are fabric-covered, refer to Page 5. Remove screws (T20 TORX) from the bottom of screen uprights. Disengage the uprights from the screen hooks and discard.
  • Page 4 ® FABRIC-COVERED SCREEN DISASSEMBLY Locate zipper on the bottom of the fabric sock. Unzip the entire length. Peel fabric sock off of steel screen substrate and remove both top corner pieces. Discard fabric and corner pieces. Remove screws (T20 TORX) from the bottom of screen uprights.
  • Page 5 ® LIGHTING DISASSEMBLY Unplug light power cord. Unplug power cord from light fixture. Lift up to remove light fixture from base and discard. Unscrew nut (8mm socket) from base and discard. Remove base from worksurface and pull power cord through the hole. Remove foam washer and discard base and washer.
  • Page 6 ® POWER MODULE DISASSEMBLY Use a flathead screwdriver to remove the power module. Remove the wire from wire clips. Bins for components removed SCRAP Page 6 of 9 139077 Rev A...
  • Page 7 ® WORKSURFACE DISASSEMBLY Remove all the screws from the underside of the worksurface. Remove the worksurface and discard. Bins for components removed STEEL SCRAP (all) Page 7 of 9 139077 Rev A...
  • Page 8 ® (ANGLED) LEG BASE AND EXTENSION DISASSEMBLY Remove screws (T40 TORX) from legs. T40 TORX Remove glides from legs. Discard glides. Remove threaded inserts from legs with flat bladed screwdriver and discard inserts and legs. (STRAIGHT) LEG Remove screws (T40 TORX) from L-brackets and ganging bracket if an extension unit is involved.
  • Page 9 ® GANGING BRACKET DISASSEMBLY Remove screws (T40 TORX) from ganging bracket. Bins for components removed SCRAP STEEL (2x) Page 9 of 9 (all) 139077 Rev A...
