Avenir

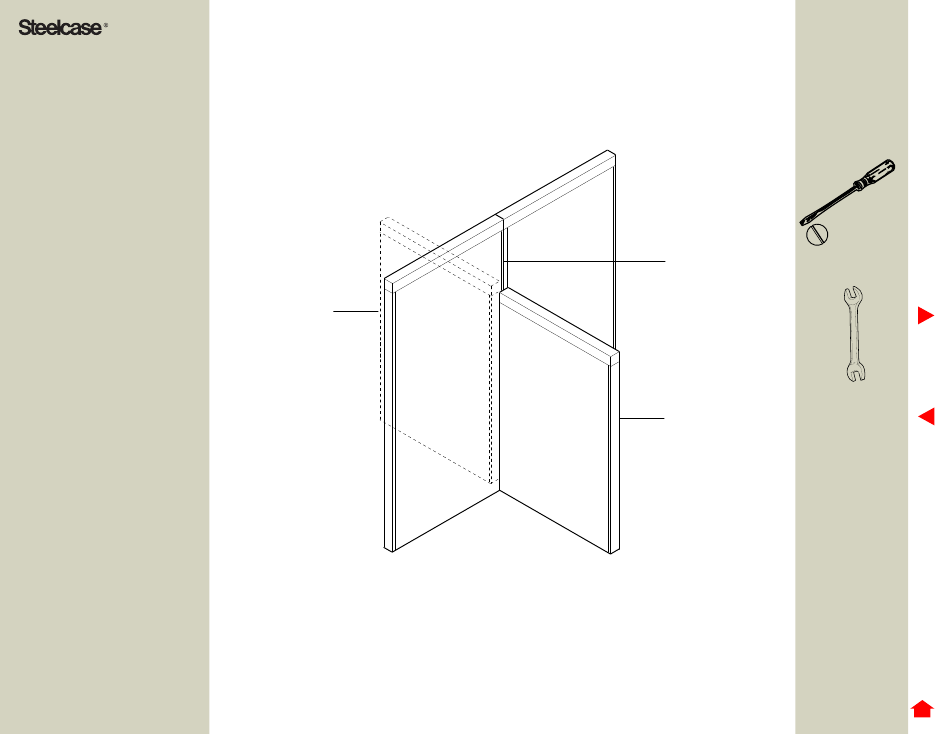

PAB-3 Joining Panels Of Different Heights
SHORTER PANEL
JOINING SEAM OF
TALLER PANELS
3/16" WRENCH
SHORTER PANEL
939500722 Rev A
1
of
4
Advertisement
Related Manuals for Steelcase Avenir PAB-3
Summary of Contents for Steelcase Avenir PAB-3
- Page 1 3/16” WRENCH Si usted tiene un problema, pregunta, SHORTER PANEL o la petición, llama a su distribuidor local, o Línea 1 de Steelcase en 888.STEELCASE (888,783,3522) para la acción inmediata por la gente que desea ayudarle. (fuera de los E.E.U.U., Canadá, Méjico, Puerto Rico, y Los E.E.U.U..
- Page 2 For standard and power panels Remove the top cap by gripping at one end andlifting straight up. For power panels only Remove tape and slide end cap down into TOP CAP place. NOTE: Care should be taken not to scratch or mar painted parts.
- Page 3 Remove extra pin from panel “B” and reinstall it into panel “A”. PANEL “B” Lay new panel onto its side. (A protective or softmaterial should be placed on the floor to prevent damage to the panel surface.) Secure mounting plate to new panel with (2) bolts. PANEL “A”...
- Page 4 For 50”, 53”, 61”, and 65” high power and standard panels ATTACHMENT BRACKET BRACKET ACTUAL NOMINAL HEIGHT OF PANELS Insert the top attachment bracket into the taller PANEL HEIGHT PANEL HEIGHT TO BE JOINED TO panels. Make sure the holes in the bracket are aligned with the holes in the shorter panel.
