6.

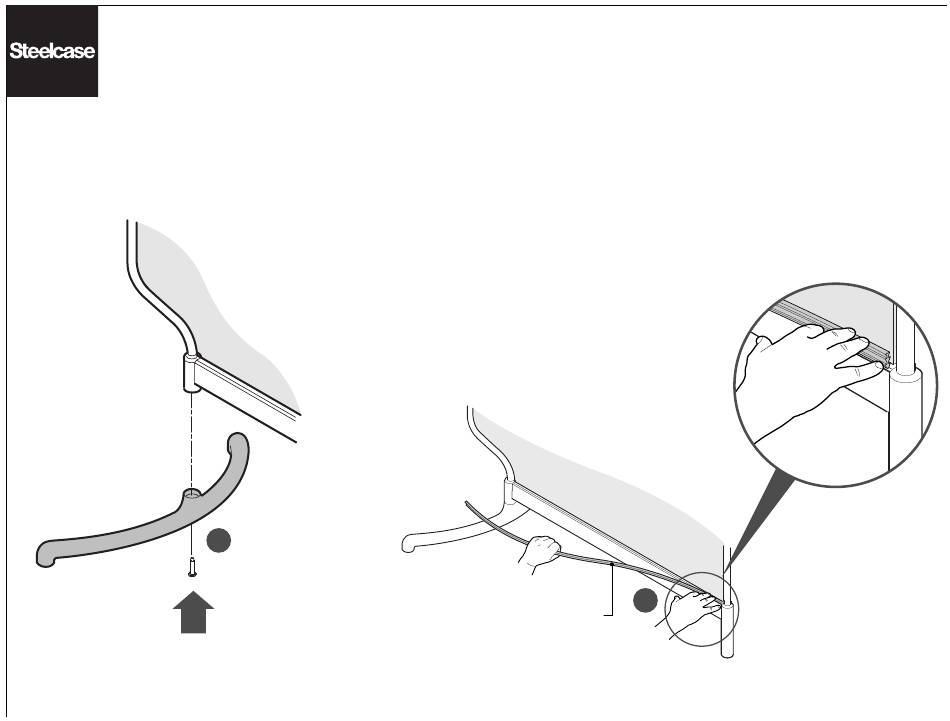

Attach foot base to screen assembly with
1/4-20 x 1-1/2" self-tapping pan head screw
provided.
6
7.
Insert infill connector. Set screen assembly upright. Start at one end
and press infill connector between infill material and base extrusion until
flush with top of base extrusion.
NOTE: Either side permissible. Infill connector supplied is for 1/16" thick
infill material. For thicker infill materials, it will be necessary to either modify
the supplied infill connector or provide other means of constraining the
bottom of the infill material.
7
INFILL CONNECTOR
Page 7 of 8
939500683 Rev E
