Assemble Bow Handle. - Steelcase Pathways Privacy Screen Infill Installation/Replacement Instructions

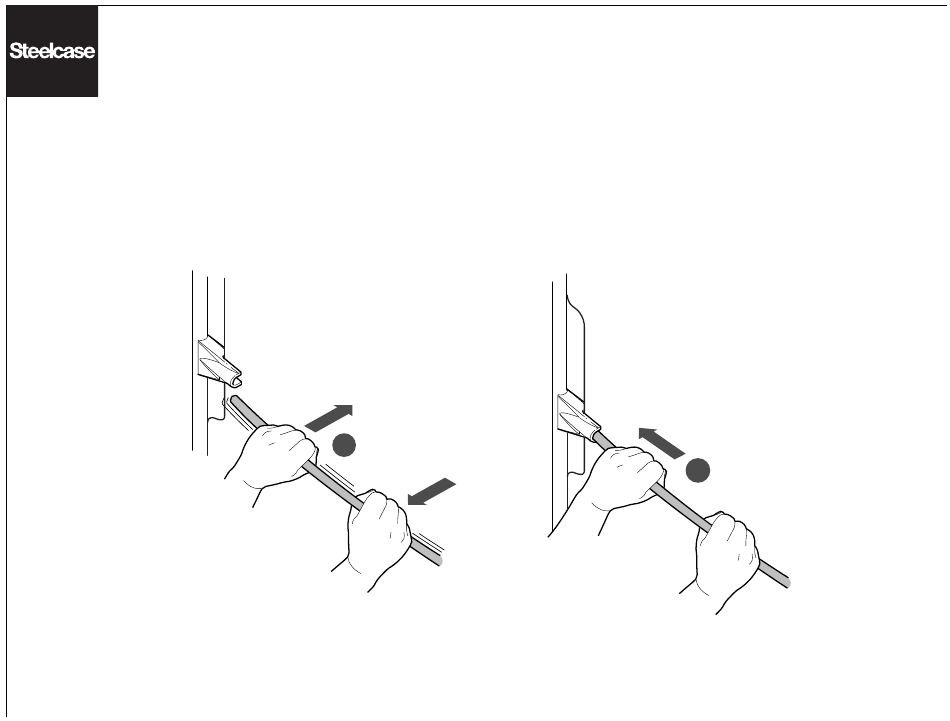

5a.
Assemble bow handle by inserting one end into the bow connector,
then flex the bow handle.
5b.
While flexing the bow handle, insert the other end into the bow
connector on the other vertical tube.
NOTE: Repeat steps 5a and 5b for bow handle on opposite side.
5a
5b
Page 5 of 8
939500683 Rev E
