3.

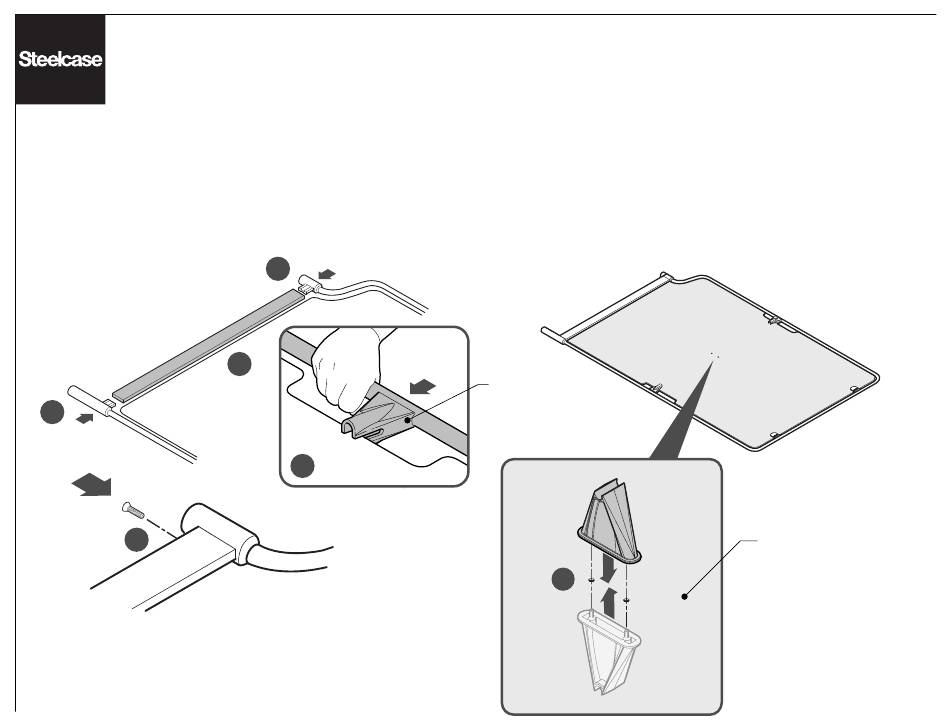

Re-install base extrusion. Slide base extrusion onto edge of
infill material (3a). Slide base extrusion over each tab on single
and dual base end (3b). Re-attach screws into base extrusion
hole in each end and tighten (3c). Press on tube frame, at bow
connectors, to fully engage bow connectors onto infill material (3d).
SINGLE
END BASE
3b
3c
DUAL
3b
END BASE
3a
3d
4.
Connect bow support parts together by
aligning pins with holes and pressing together
by hand only.
NOTE: Bow supports will be fully seated against
the infill material at the end of step 5d.
BOW
CONNECTOR
4
INFILL
MATERIAL
Page 4 of 8
939500683 Rev E
