If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2001 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

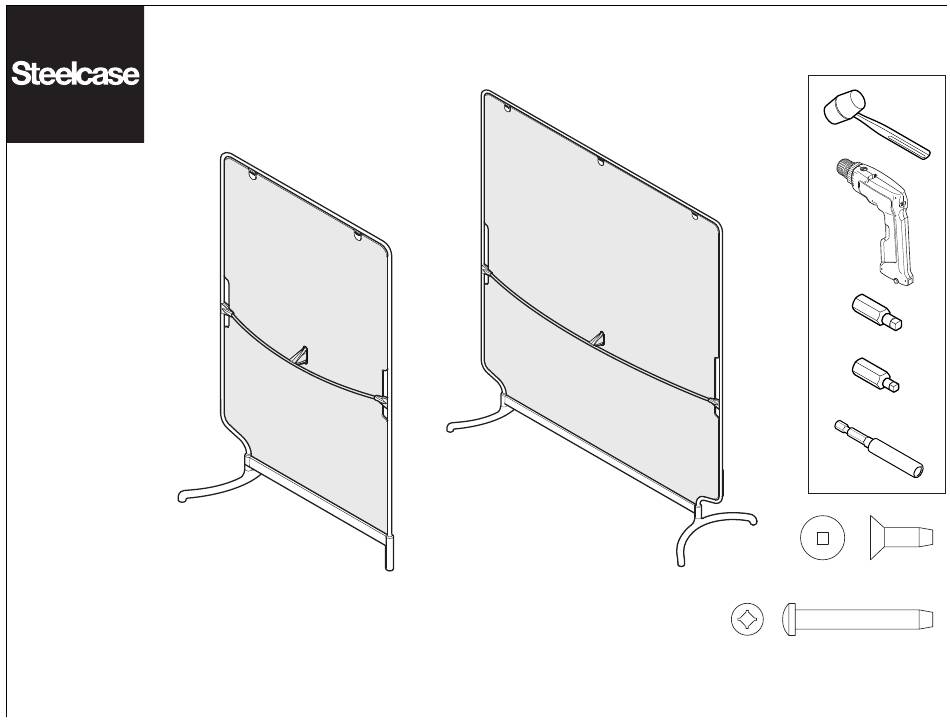

Privacy Screens Infill Installation/Replacement
®
Pathways
(Installation shown - Reverse steps for removal)
#2 Square
#3 Square
1/4-20 x 5/8" Flat Head Tapping Screw
1/4-20 x 1-1/2" Pan Head Tapping Screw
Page 1 of 8
939500683 Rev E
Advertisement
Table of Contents
Related Manuals for Steelcase Pathways Privacy Screen Infill
Summary of Contents for Steelcase Pathways Privacy Screen Infill
- Page 1 #2 Square #3 Square If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 1/4-20 x 5/8" Flat Head Tapping Screw 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
- Page 2 Uncarton and layout parts on the floor. Glossary A. Infill Material B. Tube Frame Assembly C. Bow Support (2) D. Bow Handle (2) E. Infill Connector F. Base Extrusion G. 1/4-20 x 5/8 Flat Head Screw (2) H. Foot Base J.
- Page 3 Insert infill. Orient the infill material to match the offset in the tube frame (2a). Slide the infill material into the top support clips until pins snap into holes (2b). Flex the tube frame out to allow bow connectors to slide on edge of infill material (2c). Remove the base extrusion and the bow handles.
- Page 4 Re-install base extrusion. Slide base extrusion onto edge of Connect bow support parts together by infill material (3a). Slide base extrusion over each tab on single aligning pins with holes and pressing together and dual base end (3b). Re-attach screws into base extrusion by hand only.
- Page 5 Assemble bow handle by inserting one end into the bow connector, then flex the bow handle. While flexing the bow handle, insert the other end into the bow connector on the other vertical tube. NOTE: Repeat steps 5a and 5b for bow handle on opposite side. Page 5 of 8 939500683 Rev E...
- Page 6 Then flex one bow handle and snap it onto the bow support. Repeat for the remaining bow handle. Ensure that both bow supports are fully seated against the infill material at this time. NOTE: This procedure may require tapping with mallet (5d). Page 6 of 8 939500683 Rev E...
- Page 7 Attach foot base to screen assembly with Insert infill connector. Set screen assembly upright. Start at one end 1/4-20 x 1-1/2" self-tapping pan head screw and press infill connector between infill material and base extrusion until provided. flush with top of base extrusion. NOTE: Either side permissible.
- Page 8 All Other Screen Sizes For an electronic data-point version (.dxf) for N/C programming of multiple infills go to: http://fmc.steelcase.com/SCEncyclopedia To view these .dxf files, you must have AutoCad or a compatible software. Click on appropriate infill size to view .dxf file.
