Steelcase 488 Brody Disassembly Instructions Manual

Steelcase 488 Brody Disassembly Instructions Manual

Hide thumbs Also See for 488 Brody:

Advertisement

Quick Links

Download this manual
®

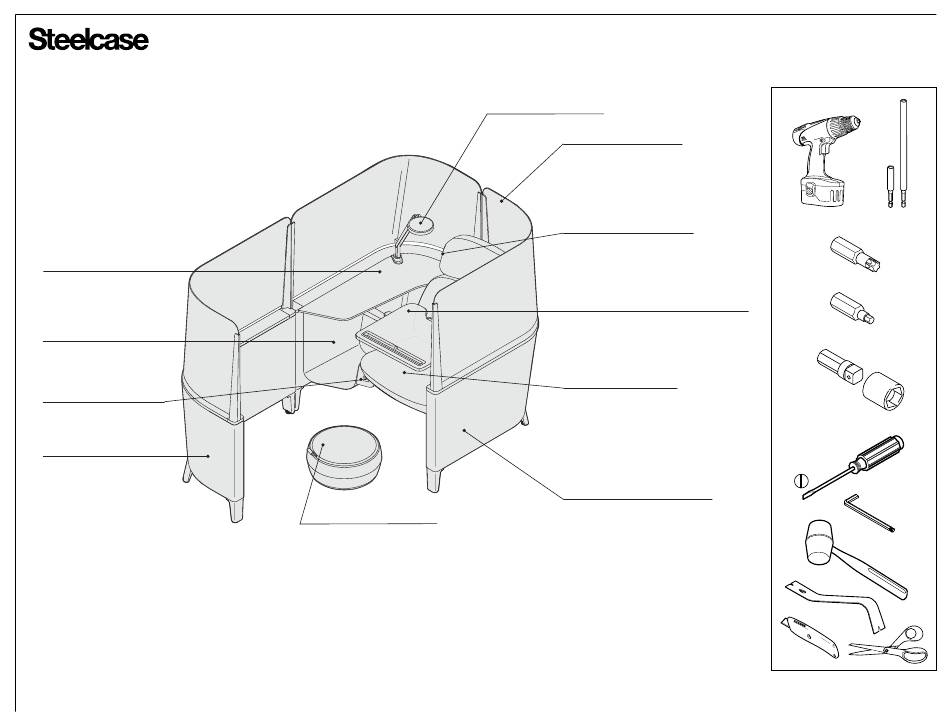

Side Surface (see page 12)
Caddy (see page 12)
Power (see page 9)
Extension (see page 10)
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Lighting (see page 8)
Footrest (see page 2)
Disassembly Direction
Screens (see page 3)
Backrest (see page 14)
Personal worksurface (see page 6)
Seat (see page 15)
Base and feet (see page 9)
488 Brody
™
3" and 12"
BIT HOLDERS
T20, T30, T40 TORX
4mm, 5mm, 6mm HEX
8mm SOCKET
3mm HEX
Page 1 of 15
1027689001 Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 488 Brody and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase 488 Brody

Summary of Contents for Steelcase 488 Brody

  • Page 1 Footrest (see page 2) 3mm HEX If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 ® FOOTREST DISASSEMBLY Foam, fabric and loop Pry off base ring with flat bladed screwdriver and discard. shown removed Remove (5) screws with T30 TORX drive. Cut fabric away from polyurethane foam/shell assembly and discard all parts. Pry off staples and fabric loop. Discard loop and polypropylene parts as shown.
  • Page 3 ® T30 TORX SCREEN DISASSEMBLY Pry top caps off and discard. Remove all screws from the screen bases (T30 TORX + 12" BIT HOLDER). Loosen middle brackets (3mm HEX) if needed. Lift the screens from the base. Set aside. Remove the (2) screws (T30 TORX) from the middle brackets and discard.
  • Page 4 ® T30 TORX SCREEN DISASSEMBLY (continued) T30 TORX Remove all attaching screws (T30 TORX) from the mounting plates and discard. If screen(s) are fabric-covered, refer to Page 5. Remove screws (T20 TORX) from the bottom of screen uprights. Disengage the uprights from the screen hooks and discard.
  • Page 5 ® FABRIC-COVERED SCREEN DISASSEMBLY Locate zipper on the bottom of the fabric sock. Unzip the entire length. Peel fabric sock off of steel screen substrate and remove both top corner pieces. Discard fabric and corner pieces. Remove screws (T20 TORX) from the bottom of screen uprights.
  • Page 6 ® T40 TORX PERSONAL WORKSURFACE DISASSEMBLY Remove screens (not shown), if applicable. Refer to Page 3. Pry off top caps (unless already done in screen removal step). Discard. a. Remove (2) screws (T30 TORX) underneath, b. (1) screw (T40 TORX) from the side c.
  • Page 7 ® PERSONAL WORKSURFACE DISASSEMBLY (continued) T40 TORX Pry bottom cover off and discard. BOTTOM COVER Remove (6) screws (T40 TORX) and separate worksurface from mechanism. Turn worksurface over and pry out the insert. Discard worksurface and insert in the appropriate bins. WORKSURFACE Remove remaining screws and discard items into appropriate bins.
  • Page 8 ® LIGHTING DISASSEMBLY Unplug light power cord. Unplug power cord from light fixture. Lift up to remove light fixture from base and discard. Unscrew nut (8mm socket) from base and discard. Remove base from worksurface and pull power cord through the hole. Remove foam washer and discard base and washer.
  • Page 9 ® (ANGLED) LEG BASE AND EXTENSION DISASSEMBLY Remove screws (T30 TORX) from legs. T30 TORX Remove glides from legs. Discard glides. Remove threaded inserts from legs with flat bladed screwdriver (STRAIGHT) LEG and discard inserts and legs. Remove screws (T30 TORX) from L-brackets and ganging bracket if an extension unit is involved.
  • Page 10 ® POWER DISASSEMBLY Unplug power cord from power source. Turn thumbwheel counterclockwise until unit is loose. Remove and discard unit. Bins for components removed SCRAP Page 10 of 15 1027689001 Rev A...
  • Page 11 ® BASE DISASSEMBLY Disengage backrest from mounting panel by depressing the release trigger with a finger. Lift backrest up and put aside. Disengage seat from base by removing (4) screws (6mm HEX). Lift seat up and put aside. BACKREST RELEASE TRIGGER BACKREST MOUNTING...
  • Page 12 ® SIDE SURFACE BASE DISASSEMBLY (continued) T40 TORX Remove (2) screws (4mm HEX) from the under the side surface and remove it. If unit did not have a Personal Worksurface (shown on page 6), locate and remove (3) screws T30 TORX (T30 TORX) and (2) screws (T40 TORX) to remove the brace shown.
  • Page 13 ® 6mm HEX BASE DISASSEMBLY (continued) Remove (2) bolts (6mm HEX), washers and nuts. Remove (7) screws (T40 TORX). Discard welded steel structure and base halves. Bins for components removed SCRAP STEEL T40 TORX (all) (2X) Page 13 of 15 1027689001 Rev A...
  • Page 14 ® BACKREST DISASSEMBLY Cut fabric away from foam/shell assembly and discard. Peel foam from shell and discard. Disassemble outer backrest components. Remove all staples and discard. Pry steel lumbar wires from the backrest inner shell and discard. Discard inner shell. LUMBAR WIRES Bins for components removed FABRIC...
  • Page 15 ® SEAT DISASSEMBLY Cut fabric away from foam/shell assembly and discard. Peel foam from shell and discard. Pry out (4) threaded inserts and staples before discarding shell. Bins for components removed FOAM FABRIC STEEL POLYPROPYLENE (4X) Page 15 of 15 1027689001 Rev A...
