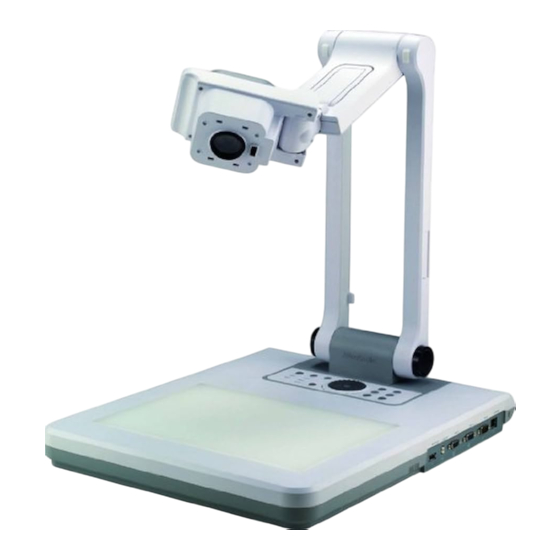

Avermedia SPB350 Quick Manual

1.
AVerVision

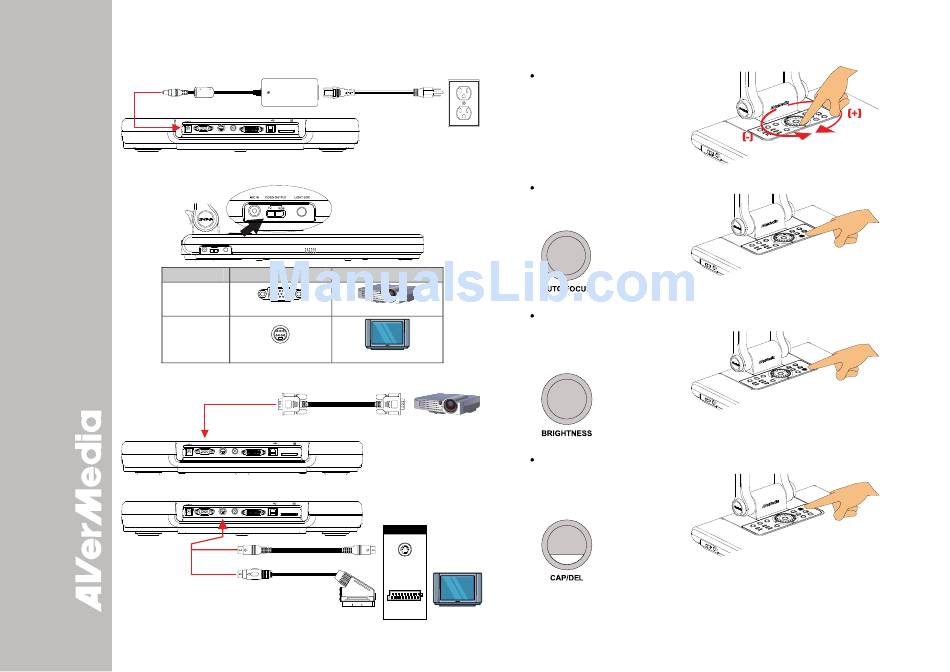

Connect the Power.
SPB Series
Quick Guide
DC 12V
2.
Select the video display output.
Switch
a. RGB
b. TV
a. RGB Connection
DC 12V
b. TV Connection
DC 12V
Power adapter
Power cord
RGB S-VIDEO VIDEO DVI-I OUTPUT USB SD CARD
OUTPUT OUTPUT OUTPUT
MIC IN VIDEO OUTPU T LIGH T BOX
TV RGB
AVerVision Port Device
RGB OUTPUT
LCD/DLP Projector
S-VIDEO OUTPUT
Television
RGB cable
R GB S-VIDEO VIDEO DVI-I OU TPUT U SB SD CARD
OU TPUT OUTPU T OU TPUT
RGB S-VIDEO VIDEO
OU TPUT OU TPUT OUTPU T DVI-I OUTPU T U SB SD C ARD
S-Video cable
S-Video to SCART cable
(not supplied)
3.
Basic Operation
Wall outlet
Use the shuttle wheel to
zoom in and out the
image.
Press AUTO FOCUS to
adjust the focus
automatically.
SPB370
Press BRIGHTNESS to
adjust the brightness
level to improve the
visibility.
LCD/DLP projector
Press CAP/DEL to
capture and save the
image in the built-in
memory.
I N P U T
S-VIDEO
SCART
Te l e v i s i o n
