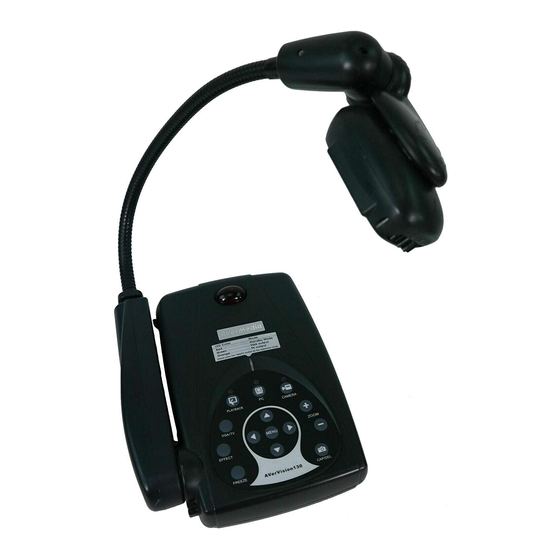

Avermedia AVerVision 130 Quick Manual

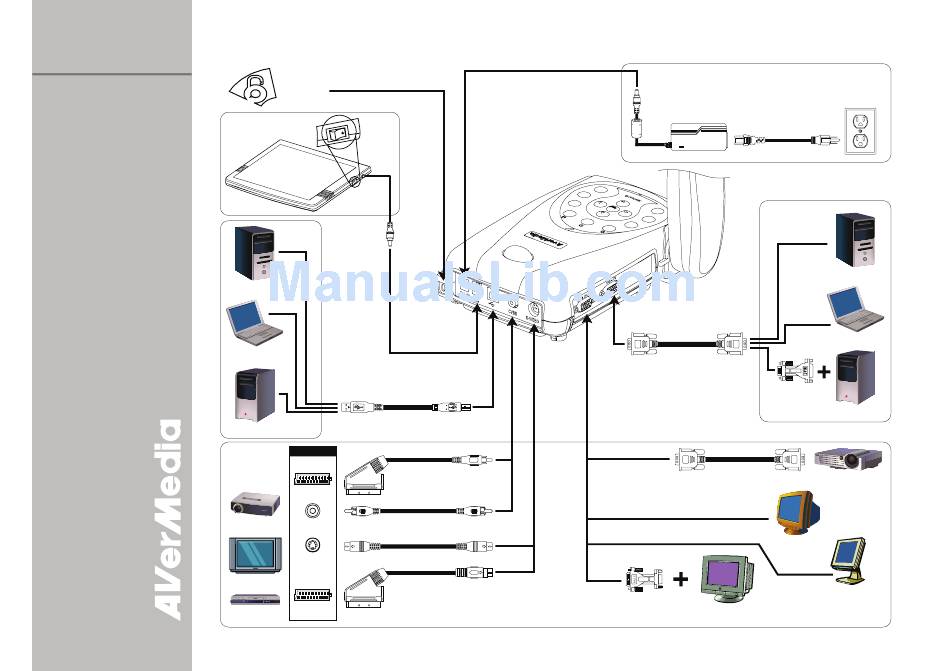

A V e r M e d i a ® Connection Diagram
A V e r M e d i a ®
A A V V e e r r V V i i s s i i o o n n 1 1 3 3 0 0
Q Q u u i i c c k k G G u u i i d d e e
Making the Connection :
1. Connect the power adapter
and the LED on the front
panel will turn green.
2. Connect the video output
display. You may choose to
output video from VGA OUT,
S-Video, or CVBS port.
3. To display computer
material, connect the VGA
cable from the computer
VGA OUT port to VGA IN
port.
4. To use the AVerVision as
USB camera or transfer
file, connect the USB
cable to the computer
USB port.
5. Connect a light box
(optional) to display x-ray,
transparency.
6.
Attach a Kensington
compatible anti-theft device.
6
Anti-theft
security lock
5
TURN ON
Light Box
4
Computer
Laptop
USB cable
MAC
2
I N P U T
RCA to SCART cable
(not supplied)
SCART
RCA cable
P r o j e c t o r VIDEO
S-VIDEO
S-Video cable
T e l e v i s i o n
S-Video to SCART cable
SCART
V C R
(not supplied)
Power adapter
Power cord
3
Computer extension cable
(VGA cable)
Monitor Adapter
(not supplied)
RGB (VGA) cable
(not supplied)
CRT monitor
Monitor Adapter
(not supplied) MAC monitor
1
Wall outlet
Computer
Laptop
MAC
LCD/DLP projector
LCD monitor
