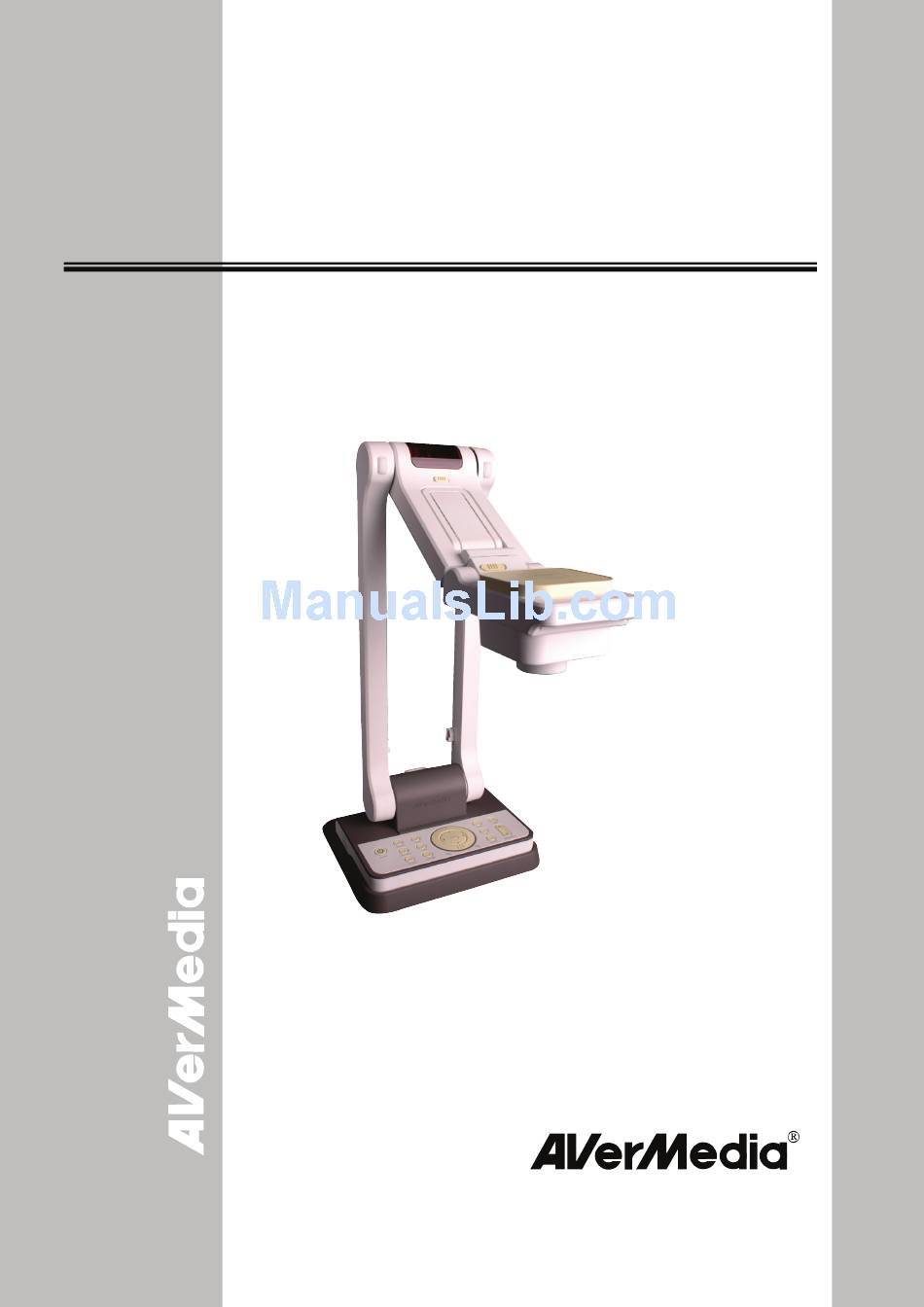

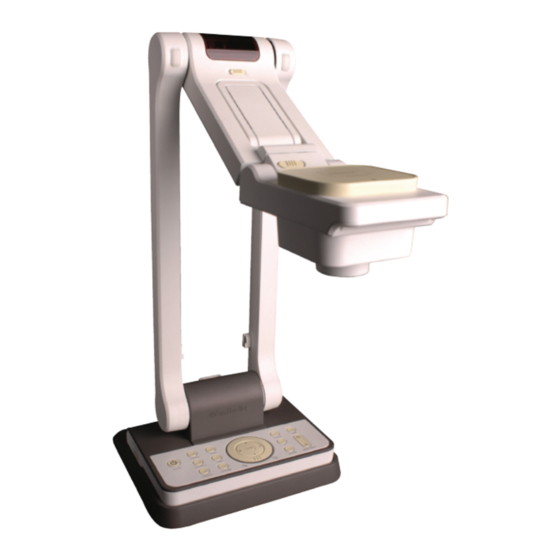

  • Page 1 ® ® Digital Document Camera...
  • Page 2 P / N 3 0 0 A A C F P M a d e i n T a i w a n...
  • Page 3 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 4 Ba tte r y S a f et y I n f o rmat i on Store the batteries in a cool dry place. Do not dispose of used batteries in domestic waste. Dispose of batteries at special collection points or return to point of sale if applies. Remove the batteries during long periods of non-use.

  • Page 5: Table Of Contents

    To Set the Timer:.................... 13 To View and Start the Timer Countdown: ............13 OSD Navigation Tree..............14 Menu Functions ................15 Using AVerVision SPC300 as a Mass Storage ........ 17 Technical Specifications ............... 17 Image......................17 Optics ......................17 Power ......................

  • Page 7: Introduction

    ® Your AVerMedia AVerVision SPC300 package contains the following: Thank you for purchasing ® the AVerMedia AVerVision SPC300. This document camera displays any documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making demonstrations a snap.

  • Page 8: Avermedia® Avervision Spc300 Parts

    ® ® The illustrations below identify the parts of SPC300. LED lamp Camera head latch Camera head Camera lens Control panel Left panel Support stand IR sensor 10. Arm latch (10) 11. Label slot 12. Rear panel 13. Antitheft slot (11) 14.

  • Page 9: Making The Connections

    The ports at the back and right panel of the SPC300 enable you to connect the unit to a computer, graphics display monitor, LCD/DLP projector, TV or other devices. Illustrated below are the ports located at the back and right panel of the SPC300 with their corresponding labels.

  • Page 10: Right Panel

    Right Panel Name Function (1) Antitheft slot Attach a Kensington compatible security lock or antitheft device. (2) RGB input port Input RGB signal from a computer or other sources and pass it through to the RGB and DVI-I output port only. Connect this port to the RGB output port of the computer.

  • Page 11: Connecting A Tv

    Connecting a TV Locate the video (yellow), s-video or SCART RGB input port of the TV or AV equipment (i.e., VCR) to record your presentation on a videotape. If you are not sure, please refer to the user manual of the TV or AV equipment. Make sure the TV/RGB switch is set to TV.

  • Page 12: Connecting The Power Adapter

    Locate the USB port of the computer or laptop. This enables you to use SPC300 as a USB Camera and Mass Storage to transfer the captured images to and from the memory source and computer. Also see “Using AVerVision SPC300 as a Mass Storage”. Computer...

  • Page 13: Setting Up Spc300

    This section tells how to setup and adjust the SPC300 to meet your needs. PUSH the latch before unfolding and folding the arm. 90° 90° Camera Head PUSH the latch before folding the camera head. 4 5 ° 4 5 ° 9 0 °...

  • Page 14: Infrared Sensor

    Infrared Sensor Aim the remote control at the infrared sensor to operate the unit. LED Power Button The LED power button on the control panel of SPC300 indicates the status of the unit. Color Description Blue : The unit is in standby mode. Orange : The unit is in operating mode.

  • Page 15: Using The Infrared Remote Control

    Use the AVerVision SPC300 Remote Control to enhance your presentation, switch between (3) three presentation modes and access additional features. To use the remote control, first insert the batteries (2 size “AAA” batteries are provided) into the battery compartment at the back of the remote.
  • Page 16 Name Button Function (10) PIP Display a thumbnail of the captured image from the memory source at the corner of the screen while in camera mode. Use the ◄ or ► buttons to move to the previous or next image. To move the thumbnail mini preview screen to different corners, press the PIP button again.

  • Page 17: Touch Button Control Panel

    Toggle to cover or uncover a part of the screen in camera mode. Use the ▲,▼,◄,&► buttons to reveal the covered part. The touch button control panel located on the top side of AVerVision SPC300 provides quick access to commonly used functions. Name...

  • Page 18: Presentation Highlight Functions

    Name Function (13) AWB Lock/unlock Auto White Balance (AWB). The camera constantly looks at the overall color of the image and calculates the best- fit white balance. Each time when the layout of the captured image changes the color shifts. To lock the reference point which represent the white, place a piece of white paper, adjust till it fills the screen then press AWB and wait till “AWB LOCK”...

  • Page 19: Timer Function

    SHADE. The AVerVision SPC300 enables you to control the pace of your presentation by displaying the remaining time on the countdown screen. This merely serves as a reminder. When the time is up, the timer blinks at the top right corner of the screen and the presentation screen will not be affected in any way.

  • Page 20: Osd Navigation Tree

    VIDEO OUTPUT OSD For TV output, RESOLUTION is not included in the menu list. MENU THEME THEME TEXT GRAPHICS EFFECT HIGH FRAME ROTATE MICROSCOPE EFFECT POINTER COLOR VISOR NEGATIVE SPLIT SCRN MANUAL ROTATE ROTATE MIRROR Activate/deactivate  FLICKER the function. 50 HZ 60 HZ SETTING...

  • Page 21: Menu Functions

    The SPC300 provides MENU functions enabling you to fine-tune your screen display, set the timer, and more. Press the MENU button to call up and exit from the main menu or sub- menu display. Then use ▲or▼ buttons to select the items in the menu list. Use ENTER button to enter sub-menu.
  • Page 22 OSD Menu Description BRIGHTNESS : BRIGHTNESS Press ►or◄ buttons to increase or decrease the brightness level and improve the visibility of the image. The brightness level can be set up to ±50. CONTRAST : CONTRAST Press ►or◄ buttons to emphasize or reduce the difference between light and dark conditions.

  • Page 23: Using Avervision Spc300 As A Mass Storage

    This enables you to transfer the captured image to and from the memory source and PC. You MUST read and follow the instructions below BEFORE connecting the USB cable. Every time when using the SPC300 as Mass Storage, the following MUST be done: 1.

  • Page 24: Dimension

    Dimension Fully Unfolded 229mm x 429mm x 488mm (9”x 16.9” x 19.2”) Folded 229mm x 508mm x 140mm (9” x 20” x 5.5”) Weight 4kg (about 8.8 lb) with mounting base Card Supported Secure Digital (SD) 16~512MB SPC300 can be controlled using a PC through RS-232 connection. Computer S-Video/RS-232 cable RS-232 cable...

  • Page 25: Rs-232C Command Table

    When you turn on the computer, it will auto-detect the type of monitor you have. During auto-detection, there won’t be any display on your presentation screen. To avoid this problem, connect your computer and all the necessary cables to the AVerVision SPC300 first before you power on your computer.

  • Page 26: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVerMedia under this paragraph shall be, at AVerMedia’s option, the repair or replacement of...
