  • Page 1 ® ® User Manual AVerMedia ® Document Camera...
  • Page 3 FCC NOTICE This device has been tested and found to comply with the limits for a digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
  • Page 4 In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. T R AD E M AR K S AVerMedia and AVerVision130 are registered trademarks of AVerMedia TECHNOLOGIES, Inc.

  • Page 5: Table Of Contents

    Connecting an IBM Compatible PC or Macintosh Computer ....7 Connecting a Computer via USB Connection ........8 Installing the Optional Light Box ............8 Connecting a Microscope ..............9 Adjusting the AVerVision130..........10 Camera Head ..................10 Flexible Gooseneck and Mechanical Arm ........... 10 Anti-glare Sheet ................... 11 Touch Button Control Panel ..........
  • Page 6 Installing the Software ................. 14 Application User interface..............15 OSD Navigation Tree ............17 Menu Functions ..............18 Troubleshooting ..............20 Limited Warranty ...............22...

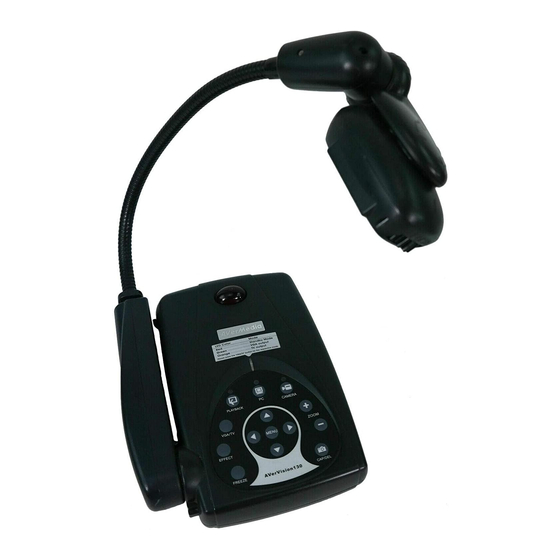

  • Page 7: Introduction

    ® Thank you for purchasing the AVerMedia AVerVision130. This document camera displays any documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making presentations a snap. The AVerVision 130’s advanced features, including 4 times (400%) digital zoom, negative to positive, B&W to color image, dynamic image capture and image...

  • Page 8: Package Contents

    Driver CD User Manual RCA Cable ® AVerMedia AVerVision130 S-Video Cable with LED Light Module Computer Extension cable Power Adapter (VGA Cable) USB Cable Power Cord * The power cord will vary depending on the standard power outlet of the country where it is sold.

  • Page 9: Optional Accessories

    Light Box 34mm Coupler 28mmCoupler Monitor Adapter Computer Adapter (for MAC) (for MAC)

  • Page 10: Technical Specifications

    Image Sensor 1/2” CMOS Effective Pixels 790K 1024 (H) x 768 (V) Frame Rate 12 fps White Balance Auto / Manual Exposure Auto / Manual / Flicker Image mode Text / Graphics Effect Color / B/W / Negative; Analog RGB output XGA 75 Hz;...

  • Page 11: Installing And Setting Up The Hardware

    The ports on the back and side panel of the AVerVision130 enable you to connect the unit to a computer, graphics display monitor or LCD / DLP projector, TV or other device. Illustrated below are the ports that are located at the back and side panel of the AVerVision130 with their corresponding labels.

  • Page 12: Connecting The Power Adapter

    You can connect the power adapter to a standard 100V~240V AC power source. AVerVision130 enables you to display a presentation on a VGA /MAC display monitor, or LCD/DLP projector with an outstanding video quality.

  • Page 13: Connecting A Tv

    To display a presentation on TV, connect AVerVision130 and TV by using the Video Cable or S-Video cable, switch the output mode to TV system by pressing VGA/TV button on the control panel. If you are using a SCART RGB monitor, connect it by using the RCA to SCART Cable.

  • Page 14: Connecting A Computer Via Usb Connection

    To access the software application as a PC Camera via the USB cable, just connect the USB cable to a computer. (Refer to the section, using the AVerVision Application, for more details.) Connecting an optional light box enables you to view x-rays, transparencies and negative slides.

  • Page 15: Connecting A Microscope

    Connecting the AVerVision130 to a microscope enables you to examine microscopic objects on a big screen without straining your eyes. C oup ler Press the latch here to detach the light module from the camera head. LED Light Module AVerMedia AVerVision130...

  • Page 16: Adjusting The Avervision130

    This section provides useful tips on how to adjust the AVerVision130 to meet your needs. The camera head can be rotated 135 degrees from left to right. You can also manually adjust the focus from here to improve the quality of the pictures.

  • Page 17: Anti-Glare Sheet

    Then LED light module provides white light and it is best use when presenting in low lighting condition. The anti-glare sheet is a special coated film that helps eliminate any glare you may encounter when you are displaying very shiny object or glossy surfaces such as magazines, pictures, etc.

  • Page 18: Touch Button Control Panel

    In Camera mode, press to capture an image. The captured image is automatically stored in the built-in dynamic memory at 1024 x 768 resolution. AVerVision130 could save up to 4 frames. CAPTURE In Playback Mode, press this button to delete the saved frame.

  • Page 19: Led Panel

    - Press MENU to call the OSD menu and then use the ▲, ►, ▼ and ◄ around the menu button to make a selection and adjustment. - In playback mode, use the ▲, ►, ▼ and ◄ to make a selection and 8 &...

  • Page 20: Using The Avervision Application

    Use the AVerVision PC Camera applications provided to control the AVerVision130 to save any captured images or video clips to your PC, or send them via emails. Note: When a USB cable is connected between the document camera and the PC, the document camera features are controlled by the application software directly instead on the control panel.

  • Page 21: Application User Interface

    Click “Finish” to complete installation. After the installation, connect the USB cable between the AVervVsion130 and your PC. Open the applications by clicking “VisionAP” icon on your desktop.
  • Page 22 A. Basic Setting Function Description Digital Zoom and Pan Control Return to normal view (1X ) Convert the image to Negative Convert the image to Black and White Back to the original image Function Description Restore to original factory setting Select between text and graphic image enhancement mode Display the image from AVerVision’s camera or from the PC IN port Freeze image...

  • Page 24: Menu Functions

    The MENU functions of AVerVision130 enhance fine-tuning your screen display, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list.
  • Page 25 Description Use ▲or▼ buttons to select between text and MODE graphics image enhancement mode. In text mode, the AVerVision130 corrects the intensity of the adjacent pixel making it more uniform producing sharper and clearer images. While in graphics mode, the...

  • Page 26: Troubleshooting

    PC Mode. I have set up the AVerVision130 and checked all the connections as specified in the manual, but I cannot get a picture on the preferred presentation screen.
  • Page 27 1. Check all the cable connections among the display device, AVerVision130 and your PC. 2. Connect your PC to the AVerVision130 first before you power on your computer. I plug in the power of AVerVision130, but still couldn't see anything.

  • Page 28: Limited Warranty

    This limited warranty extends only to You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.
  • Page 29 OF OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVERMEDIA HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 32 P / N 3 0 0 A A B 5 A MADE IN TAIWAN...
