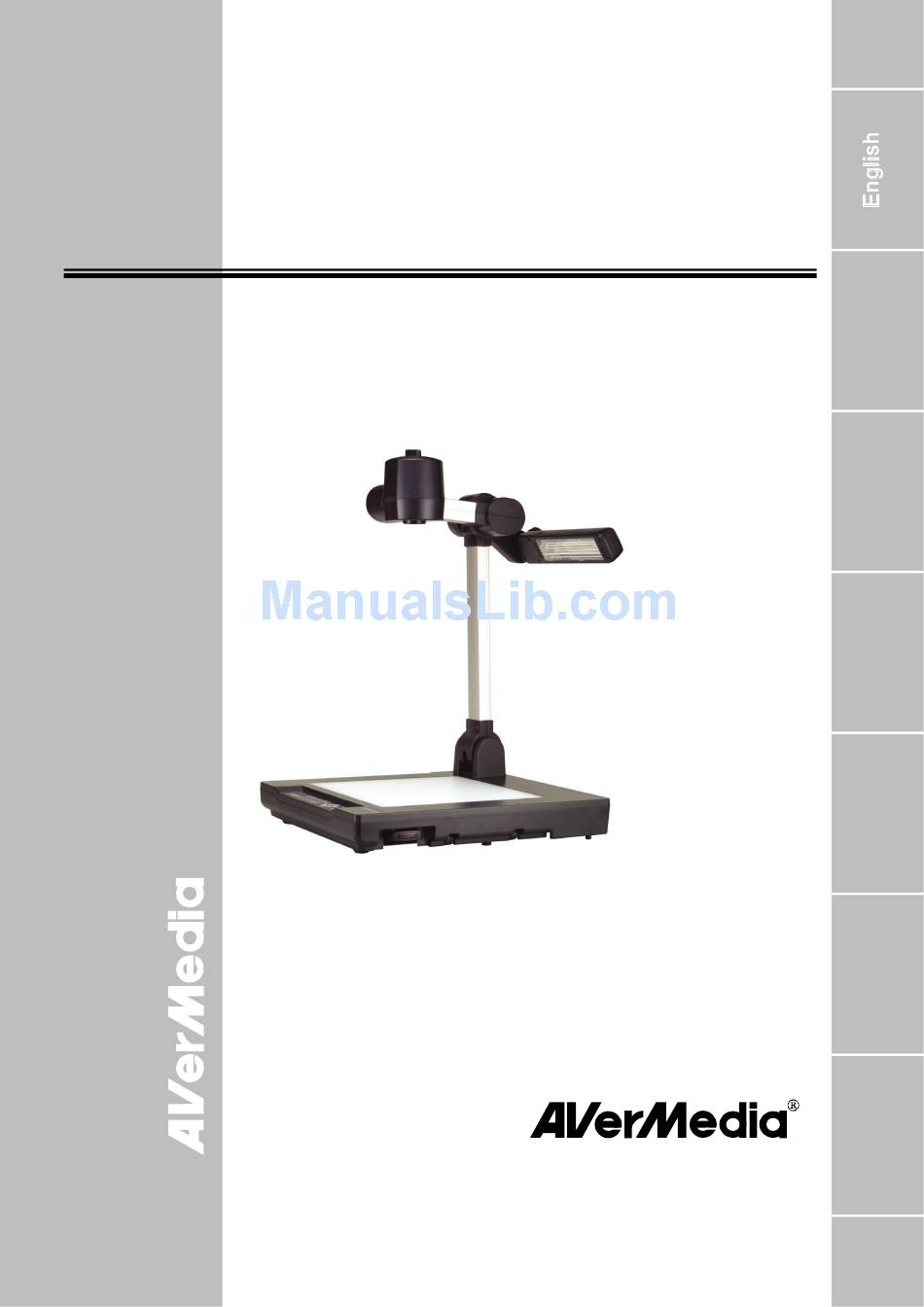

  • Page 1 ® ® Digital Document Camera...
  • Page 2 P / N 3 0 0 A A C B 9 M a d e i n T a i w a n...
  • Page 3 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 4 Ba tte r y S a f et y I n f o rmat i on Store the batteries in a cool dry place. Do not dispose of used batteries in domestic waste. Dispose of batteries at special collection points or return to point of sale if applies. Remove the batteries during long periods of non-use.

  • Page 5: Table Of Contents

    Table of Contents Introduction ... E-1 Package Contents ... E-1 AVerMedia® AVerVision530 Components... E-2 Making the Connections... E-3 Back Panel ...E-3 Left Panel ...E-4 Connecting a VGA, Mac Display Monitor or LCD/DLP Projector...E-4 Connecting a TV...E-5 Connecting a Computer ...E-5 Connecting the Power Adapter ...E-6...
  • Page 6 RS-232C Communication Format... E-22 RS-232C Command Table... E-22 Troubleshooting ... E-23 Limited Warranty ... E-24...

  • Page 7: Introduction

    Your AVerMedia Thank you for purchasing ® the AVerMedia AVerVision530. This document camera displays any documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making demonstrations a snap. The advanced features of the AVerVision530 make it a versatile and multi- functional product.

  • Page 8: Rear Panel

    The following illustrations identify the key components of your AVerVision530. Lens rotary dial Camera head Camera lens Base light Left panel Control panel IR sensor Overhead light 10. Rear panel 11. Carrying handle 12. Remote control compartment 13. CF card slot 14.

  • Page 9: Making The Connections

    The ports at the back and left panel of the AVerVision530 enable you to connect the unit to a computer, graphics display monitor, LCD/DLP projector, TV or other devices. Illustrated below are the ports located at the back and left panel of the AVerVision530 with their corresponding labels.

  • Page 10: Left Panel

    Left Panel Name Function (1) CF card slot Insert the CF card with the label facing up. This supports 16~512MB card capacity and only accepts FAT16 formatted card. (2) SD card slot Insert the SD card with the label facing up. This supports 16~512MB card capacity and only accepts FAT16 formatted card.

  • Page 11: Connecting A Tv

    Connecting a TV Locate the audio (red), video, s-video or SCART RGB input port of the TV or AV equipment (i.e., VCR) to record your presentation on a videotape. If you are not sure, please refer to the user manual of the TV or AV equipment. For better video quality, we strongly suggest using s-video connection.

  • Page 12: Connecting The Power Adapter

    Connecting the Power Adapter Connect the power adapter to a standard 100V~240V AC power source. Wall outlet Power adapter Power cord Connecting a Microphone Plug a φ 6.3mm jack Microphone. M i c r o p h o n e ( n o t s u p p l i e d ) Inserting and Ejecting a Memory Card Insert the card with the label facing up until it reaches the end.

  • Page 13: Connecting A Computer Via Usb Connection

    Connecting a Computer via USB Connection Locate the USB port of the computer or laptop. This enables you to use AVerVision530 as a PC Camera and Mass Storage to transfer the captured images to and from the memory source and computer. Also see “Using AVerVision530 as PC Camera” and “Using AVerVision530 as a Mass Storage”.

  • Page 14: Base Light

    Base Light Use to view x-ray film, transparency and negatives. DO NOT place an object weighing more than 8kg on top of the base light. light weight object photos x-ray film document Lens Rotary Dial Turn the lens rotary dial to your desired direction. To rotate the image by 180°, use the REVERSE MENU remote control and press...

  • Page 15: Infrared Sensor

    Infrared Sensor Aim the remote control at the infrared sensor to operate the unit. Carrying Handle Unfold the handle to carry the AVerVision530 around and fold to store the handle. LED Power Button The LED power button on the control panel of AVerVision530 indicates the status of the unit. Color Description Blue...

  • Page 16: Using The Infrared Remote Control

    Use the AVerVision530 Remote Control to enhance your presentation, switch between (3) three presentation modes and access additional features. To use the remote control, first insert the batteries (2 size “AAA” batteries are provided) into the battery compartment at the back of the remote.
  • Page 17 Name Button (13) ZOOM +/ - (14) ZOOM RESET (15) MENU (16) ▲ ▼ ◄ (► ENTER) ENTER (17) LASER (18) CAPTURE (20) MIRROR (21) DELETE E-11 Function - Zoom in and zoom out the picture digitally in Playback mode. - Zoom in and zoom out the image optically and digitally in Camera mode.

  • Page 18: Touch Button Control Panel

    The touch button control panel located on the top side of AVerVision530 provides quick access to commonly used functions. (10) CAPTURE DELETE PLAYBACK CAMERA (9) (8) (7) Name Button (1) POWER (2) MENU MENU ( ENTER) MENU (4) LIGHT (5) NIGHT VIEW (6) DELETE (7) CAMERA MODE...
  • Page 19 Name Button (11) AWB/ MEASURE (12) AUTO FOCUS (13) FOCUS (14) ZOOM +/ - (15) Switch Resolution ENTER MENU E-13 Function Lock/unlock Auto White Balance (AWB). The camera constantly looks at the overall color of the image and calculates the best-fit white balance.

  • Page 20: Timer Function

    The AVerVision530 enables you to control the pace of your presentation by displaying the remaining time on the countdown screen. This merely serves as a reminder. When the time is up, the timer blinks at the top right corner of the screen and the presentation screen will not be affected in any way.

  • Page 21: Osd Navigation Tree

    VIDEO OUTPUT OSD For TV output, RESOLUTION is not included in the menu list. BRIGHTNESS CONTRAST MENU BRIGHTNESS ZOOM CONTRAST OPTICAL ZOOM DIGITAL TIMER TIMER : MIN. MODE EFFECT DEFAULT MODE ADVANCED TEXT GRAPHICS EFFECT COLOR NEGATIVE MIRROR REVERSE DEFAULT EXPOSURE AUTO MANUAL...

  • Page 22: Menu Functions

    The AVerVision530 provides MENU functions enabling you to fine-tune your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list. Use (►ENTER) button to enter sub-menu.
  • Page 23 OSD Menu Description EXPOSURE EXPOSURE : AUTO Use ▲or▼ buttons to select between Auto and Manual. MANUAL AVerVision530 allows you to automatically or manually adjust the FLICKER camera to determine how much light is required. NIGHT VIEW If you choose to manually adjust the exposure, press ►or◄ buttons to MANUAL adjust the exposure level.
  • Page 24 OSD Menu Description MENU PLAYBACK MENU : SLIDE SHOW Press MENU when you are in Playback mode then use the ▲or▼ TYPE buttons to make a selection. DELETE SLIDE SHOW: Automatically display all the pictures one at a time. TYPE : Select the source of the picture. DELETE: Permanently remove the selected picture.

  • Page 25: Basic Setting

    Step 3 Using the PC Camera Application To run the application, click VisionAP icon on your PC desktop or click Start > Programs > AVerVision > VisionAP. Click (Ctrl + F) to view in full screen. A. Basic Setting Function Auto Focus Return to normal view (1X ) Optical and Digital zoom selection...

  • Page 26: Advanced Setting

    B. Advanced Setting Function Description Restore to original factory setting Select between text and graphic image enhancement mode Display the image from AVerVision530 camera or from the PC IN port Freeze image Adjust White Balance Adjust Exposure C. SnapShot/Video Function Description Control the video display by moving the progressive bar Play and control the video display...

  • Page 27: Technical Specifications

    Image Sensor Effective Pixels Frame Rate White Balance Exposure Image mode Effect Analog RGB output S-Video, Composite Video Output Image Capture Optics Lens Shooting Area Zooming Power Power Source Consumption Lighting Overhead light Base light Input VGA Input DC 12V Output RGB (VGA ) DVI-I...
  • Page 28 AVerVision530 can be controlled using a PC through RS-232 connection. C o m p u t e r RS-232 cable (not supplied) L a p t o p Make sure the RS-232 cable matches the cable spec design. PC COM Port DSUB-9P (Female) RI (CI) Star bit...
  • Page 29 FUNCTION LIGHT VGA/TV CAMERA MODE SELECTION PREVIEW FULL SCREEN DELETE PREVIEW MODE PAGE UP PAGE DOWN ZOOM ZOOM RESET AUTO FOCUS FOCUS NEAR MENU DOWN RIGHT LEFT MIRROR EFFECT ROTATE COLOR / B.W / NEGATIVE This section provides useful tips describing how to solve common problems while using the AVerVision530.

  • Page 30: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVerMedia under this paragraph shall be, at AVerMedia’s option, the repair or replacement of...
