FCC NOTICE (Class A)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Class A ITE:
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the
class B ITE limits. Such equipment should not be restricted in its sale but the following
warning shall be included in the instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
CE Class A (EMC)
This product is herewith confirmed to comply with the requirements set out in
the Council Directives on the Approximation of the laws of the Member States
relating to Electromagnetic Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures to
correct this interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the
contents of this documentation, its quality, performance, merchantability, or fitness for a
particular purpose. Information presented in this documentation has been carefully
checked for reliability; however, no responsibility is assumed for inaccuracies. The
information contained in this documentation is subject to change without notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages.
TRADEMARKS
AVerVision is registered trademarks of AVerMedia Information, Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Macintosh is a
registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and
Windows is a trademark of Microsoft Corporation. All other products or corporate names
mentioned in this documentation are for identification and explanation purposes only, and
may be trademarks or registered trademarks of their respective owners.
COPYRIGHT
© 2008 by AVerMedia Information, Inc. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form by any means without the written permission of AVerMedia
INFORMATION, Inc.
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS
PRODUCT
MUST
HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE
WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED
COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL
AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT
WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING,
PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR
THE SHOP WHERE YOU PURCHASED THE PRODUCT.
NOT
BE DISPOSED OF WITH YOUR OTHER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerVision SPB370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

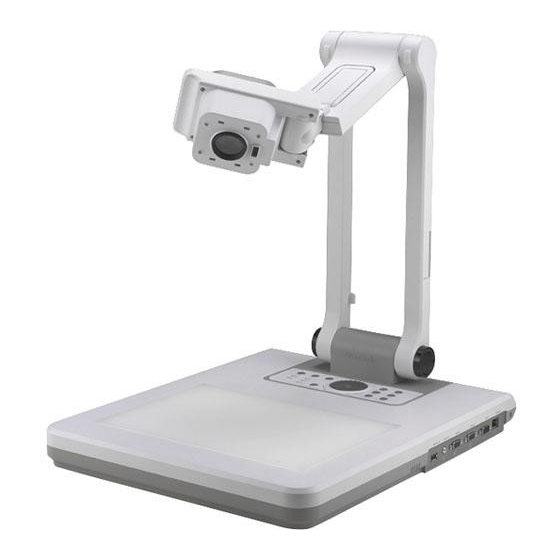

Summary of Contents for Avermedia AVerVision SPB370

  • Page 1 COPYRIGHT © 2008 by AVerMedia Information, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia INFORMATION, Inc.
  • Page 2 Ba tte r y S a f et y I n f o rmat i on Store the batteries in a cool dry place. Do not dispose of used batteries in domestic waste. Dispose of batteries at special collection points or return to point of sale if applies. Remove the batteries during long periods of non-use.
  • Page 3: Table Of Contents

    Light Box ...E-9 Anti-glare ...E-9 Microscope Connection...E-10 Control Panel Light Color ...E-10 Using Web Browser to Control SPB370 ... E-10 Using the Infrared Remote Control ... E-11 Touch Button Control Panel... E-13 Using AVerVision SPB370 as a Mass Storage... E-14 OSD Navigation Tree...
  • Page 5: Introduction

    The power cord varies depending on the standard power outlet of the country where it is sold. 34mm Microscope Adapter ® AVerVision SPB370 package contains the following: ® AVerMedia AVerVision SPB370 Anti-glare Sheet Power Adapter Power Cord...
  • Page 6 The illustrations below identify the parts of SPB370. Overhead light Camera head Camera lens Left panel Control panel Light box Label slot IR sensors 10. Rear panel 11. Right panel 12. MIC IN port 13. Video output switch 14. Light box power button 15.
  • Page 7: Left Panel

    The ports on the rear, left and right panel of SPB370 enable you to connect the unit to a computer, graphics display monitor or LCD/DLP projector, TV or other device. Illustrated below are the ports that are located at the rear and right panel of SPB370 with their corresponding labels.
  • Page 8: Right Panel

    Locate the RGB (VGA) input port of the display device and connect it to RGB OUTPUT port of SPB370. If you are not sure, please refer to the user manual of the device. Make sure the Video Output switch is set to RGB.
  • Page 9: Connecting A Monitor Or Lcd/Dlp Projector With Dvi Interface

    Locate the VIDEO (yellow), S-VIDEO or SCART RGB input port of the TV or Video equipment (i.e., VCR) to record your presentation on a videotape and connect it to S-VIDEO or VIDEO OUTPUT port of SPB370. If you are not sure, please refer to the user manual of the TV or Video equipment.
  • Page 10: Connecting The Power Adapter

    Locate the RGB (VGA) output port of the computer or laptop to display your PC presentation on screen and connect it to RGB IN 1 or RGB IN 2 ports of SPB370. The video signal from the RGB INPUT port is streamed to RGB and DVI-I OUTPUT ports only, and displayed on the screen even in stand-by mode.
  • Page 11: Connecting To Audio Output Device

    Connecting a Computer via USB Connection Locate the USB port of the computer or laptop and connect it to USB port of SPB370. This enables you to use SPB370 as a USB Camera and to transfer the captured images from the memory source and to computer.
  • Page 12: Inserting And Ejecting A Sd Card

    The supported SD card capacity is from 16MB to 2GB. Make sure the card is formatted to FAT16. SPB370 automatically creates and stores the images in AVERJPG folder. This section provides useful tips on how to adjust the SPB370 to meet your needs. The arm must be unfolded fully in upright position.
  • Page 13: Overhead Light

    Aim the remote control at the infrared sensors to operate the unit. Light Box Press LIGHT BOX button on the left panel of SPB370 to turn on and off light. Use this to view negatives film, and 35mm slides. : DO NOT place an object weighing more than 8kg on top of the light box.
  • Page 14: Microscope Connection

    Explorer). Make sure SPB370 is connected to an IP-based network. To use web browser to control SPB370: 1. Use an RJ-45 Ethernet cable and connect it from the Ethernet port of SPB370 to RJ-45 wall jack or Ethernet hub. RJ-45 wall jack (not supplied) 2.
  • Page 15: Using The Infrared Remote Control

    3. Type the IP address of SPB370 in the web browser. The Web browser will access the embedded web server and can remotely control SPB370. To use the SPB370 remote control interface, refer to section “Using the Infrared Remote Control”.
  • Page 16 - PC mode displays the video signal from the RGB IN 1 and RGB IN 2 port of SPB370. It will first display the signal from RGB IN 1. To display the signal from RGB IN 2, press the SOURCE button again. The PC LED light will remain on when it is in PC 1 and PC2.
  • Page 17: Touch Button Control Panel

    ◄ & ► or ▲&▼ buttons. To switch to different split screen type, press MENU, go to SPLIT SCREEN and select between vertical or horizontal splitting type. The touch button control panel located on the top side of AVerVision SPB370 provides quick access to commonly used functions. POWER...
  • Page 18 You MUST read and follow the instructions below BEFORE connecting the USB cable. Every time when using the SPB370 as Mass Storage, the following MUST be done: 1. Select the memory source. To select the memory source, press MENU >...
  • Page 19: Osd Navigation Tree

    VIDEO OUTPUT OSD For TV output, RESOLUTION is not included in the menu list. PLAYBACK OSD E-15...
  • Page 20: Menu Functions

    The MENU functions of SPB370 enhance fine-tuning your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list.
  • Page 21 If you are presenting in a low-light condition, Night View enables the image of the object to appear as though under normal lighting conditions. SPB370 can automatically adjust the exposure to compensate for the adverse condition, but the captured image will appear to be in slow motion.
  • Page 22 Select DHCP and press ► to turn DHCP ON to automatically request for 000.000.000.000 NETMASK 000.000.000.000 network address or OFF to manually set the network address. For detailed GATEWAY 000.000.000.000 instruction, refer to “Using Web Browser to Control SPB370”. TIMER MENU EFFECT MIRROR Press ►...
  • Page 23: Card Supported

    OSD Menu Description DEFAULT MENU EFFECT Press ► and use ▲or▼ buttons to select YES to restore to original MIRROR PRESENTER factory default setting or NO to exit then press ►/ENTER to make the SPLIT SCREEN selection. SETTING TIMER CAPTURE RECALL DEFAULT Image...
  • Page 24: Send Command Format

    SPB370 can be controlled using a PC through RS-232 connection. Computer Laptop Make sure the RS-232 cable matches the cable spec design. PC COM Port DSUB-9P (Female) RI (CI) Start bit Data bit Stop bit Parity bit X parameter Baud rate(Communication speed) Send Command Format: Send Format︰0x52 + 0x05 + 0x01 + Command + 0x53 + CheckSum...
  • Page 25: Set Value Format

    FUNCTION ZOOM RESET FREEZE ROTATE MIRROR EFFECT BRT UP BRT DOWN AUTO IMAGE TIMER PROFILE CAPTURE / DELETE SPLIT SCRN AVERBOX ON / OFF AVERVISOR ON / OFF AVERBOX COLOR Set Value Format: Send Format︰0x52 + 0x0B + 0x03 + Data[0] + Data[1] + Data[2] + 0x53 + CheckSum Receive Format︰0x53 + 0x00 + 0x01 + 0x0B + 0x53 + 0x59 Function Data[0]...
  • Page 26: Get Value Format

    When you turn on the computer, it will auto-detect the type of monitor you have. During auto-detection, there won’t be any display on your presentation screen. To avoid this problem, connect your computer and all the necessary cables to the AVerVision SPB370 first before you power on your computer.
  • Page 27: Limited Warranty

    This limited warranty extends only to You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.

Table of Contents
