F C C N O T I C E ( C l a s s A)
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
F e d e r a l C o m m u n i c a t i o n s C o m m i s s i o n
S t a t e m e n t
NOTE- This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance
with
the
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
tuning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician
for help.
C l a s s A I T E :
Class A ITE is a category of all other ITE which satisfies the
class A ITE limits but not the class B ITE limits. Such
equipment should not be restricted in its sale but the following
warning shall be included in the instructions for use:
Warning - This is a class A product. In a domestic environment
this product may cause radio interference in which case the
user may be required to take adequate measures.
C E C l a s s A ( E M C )
This product is herewith confirmed to comply
with the requirements set out in the Council
Directives on the Approximation of the laws of
the Member States relating to Electromagnetic
Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment
this product may cause radio interference in which case the
user may be required to take adequate measures to correct this
interference.
instructions,
may
cause
harmful

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerVision CP130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avermedia AVerVision CP130

  • Page 1 F C C N O T I C E ( C l a s s A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 2 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3: Table Of Contents

    Connecting an IBM Compatible PC or Macintosh Computer..........E-7 Installing the Optional Light Box......E-8 Connecting to a Microscope ........E-9 Setting Up AVerVision CP130......E-9 Camera Head ............E-9 LED Light ..............E-9 Flexible Gooseneck and Arm ........ E-10 Anti-glare Sheet ............
  • Page 5: Introduction

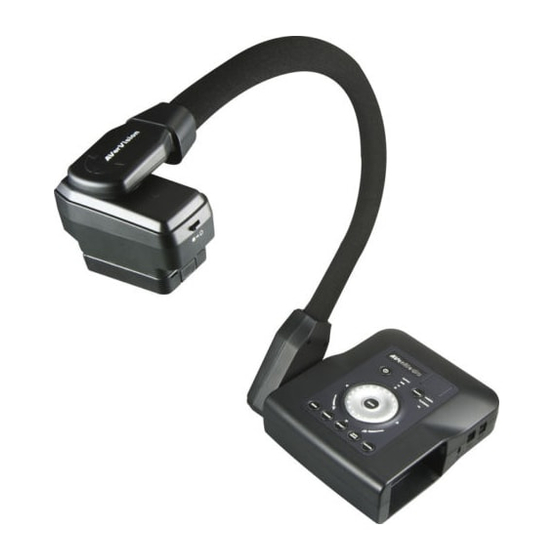

    AVerVision CP130. This document camera displays documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making presentations a snap. AVerVision CP130 is an ideal presentation tool for business, academic, ® AVerMedia AVerVision CP130 medical and the scientific community.
  • Page 6: Optional Accessories

    34mm Microscopic Adapter 28mm Microscopic Adapter Light Box...
  • Page 7: Rear Panel

    The illustrations below identify the parts of AVerVision CP130 (1) Camera head (2) LED light module (3) Camera lens (4) LED switch (5) Control panel (6) Right panel (7) Gooseneck (8) Rear panel (9) Left panel (10) Light box power...
  • Page 8: Technical Specifications

    Image Sensor 1/2" CMOS color image sensor Total Pixels 850K Frame Rate 12 fps (max.) White Balance Auto / Manual Exposure Auto / Manual / Flicker / Night View Image mode Text / Graphics Effect Color / B/W / Negative Analog RGB output XGA 60 Hz;...
  • Page 9: Making The Connections

    The ports on the rear, left and right panel of CP130 enable you to connect the unit to a computer, graphics display monitor or LCD/DLP projector, TV or other device. Illustrated below are the ports that are located at the rear, left and right panel of CP130 with their corresponding labels.
  • Page 10: Connecting The Power Adapter

    Locate the video, S-VIDEO or SCART RGB input port of the TV or Video equipment (i.e., VCR) to record your presentation on a videotape and connect it to S-VIDEO or VIDEO OUTPUT port of CP130. If you are not sure, please refer to the user manual of the TV or Video equipment.
  • Page 11: Lcd/Dlp Projector

    Locate the RGB (VGA) input port of the display device and connect it to RGB OUTPUT port of CP130. If you are not sure, please refer to the user manual of the device. Make sure the TV/RGB switch is set to RGB.
  • Page 12 Locate the USB port of the computer or laptop and connect it to USB port of CP130. This enables you to use CP130 as a USB Camera and to transfer the captured images from the memory and to computer. Also see “Transfer Image from AVerVision CP130 to PC”.
  • Page 13: Connecting To A Microscope

    Microscope This section provides useful tips on how to adjust the CP130 to meet your needs. The camera head can be turned 90° to the left and right. The latch must be pressed to open and unfold the LED light.
  • Page 14: Flexible Gooseneck And Arm

    The flexible gooseneck and arm design allows you to position the camera head from any angle. 90 ° The anti-glare sheet is a special coated film that helps eliminate any glare that maybe encountered while displaying very shiny objects or glossy surfaces such as magazines and pictures.
  • Page 15 The touch button control panel located on the top side of the CP130 provides quick access to commonly used functions. (10 ) (11) Function Description (1) POWER Turn the unit on/off. Indicate the setting of the TV to RGB switch to which (2) Output LED the video signal is being sent out.
  • Page 16 Select INTERVAL to set the display time interval between frames in second. - PC mode displays the video signal from the RGB INPUT port of AVerVision CP130. Automatically adjust and set the white balance and (9) AUTO IMAGE exposure setting.
  • Page 17: Osd Navigation Tree

    E-13...
  • Page 18: Menu Functions

    The MENU functions of CP130 enhance fine-tuning your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list. Use ►/ENTER button to enter sub-menu and ◄/ ENTER to return to main menu.
  • Page 19 If you are presenting in a low-light condition, Night View enables the image of the object to appear as though under normal lighting conditions. CP130 can automatically adjust the exposure to compensate for the adverse condition, but the captured image will appear to be in slow motion.
  • Page 20 OSD Menu Description SETTINGS > IMAGE > CONTRAST IMAGE EXPOSURE Use ◄or► buttons to emphasize or reduce the WHITE BALANCE BRIGHTNESS difference between light and dark conditions. The CONTRAST RESOLUTION contrast level can be adjustable up to 255. SETTINGS > IMAGE > RESOLUTION IMAGE EXPOSURE Press ►/ENTER and use ▲or▼...
  • Page 21: Transferring The Captured Image To Pc

    PC Mode. I have set up the CP130 and checked all the connections as specified in the manual but I cannot get a picture on the preferred presentation screen.
  • Page 22: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.
  • Page 23 AVerMedia specifications, (iii) use of the Product with any accessories or options not furnished by AVerMedia or its authorized agents, or (iv) installation, alteration, or repair of the Product by anyone other than AVerMedia or its authorized agents. Disclaimer of Warranty...
