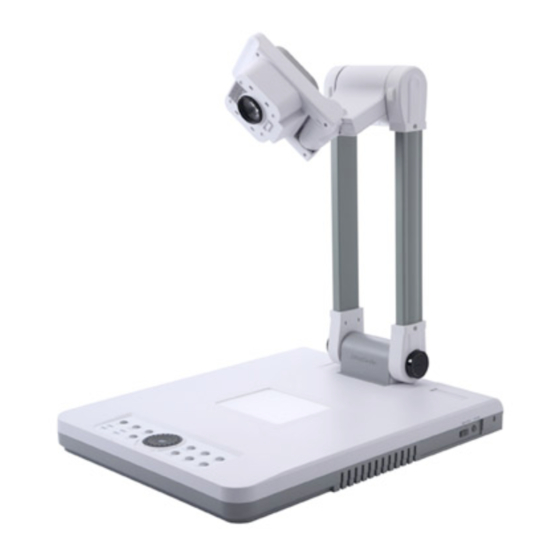

Avermedia avervision spb350+ Manual

Avermedia avervision spb350+ Manual

Full hd 1080p

Advertisement

Quick Links

FCC NOTICE (Class A)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the
-
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
-
Class A ITE:
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the
class B ITE limits. Such equipment should not be restricted in its sale but the following
warning shall be included in the instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
CE Class A (EMC)
This product is herewith confirmed to comply with the requirements set out in
the Council Directives on the Approximation of the laws of the Member States
relating to Electromagnetic Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures to
correct this interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the
contents of this documentation, its quality, performance, merchantability, or fitness for a
particular purpose. Information presented in this documentation has been carefully
checked for reliability; however, no responsibility is assumed for inaccuracies. The
information contained in this documentation is subject to change without notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages.
TRADEMARKS
AVerVision is registered trademarks of AVerMedia Information, Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Macintosh is a
registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and
Windows is a trademark of Microsoft Corporation. All other products or corporate names
mentioned in this documentation are for identification and explanation purposes only, and
may be trademarks or registered trademarks of their respective owners.
COPYRIGHT
© 2008 by AVerMedia Information, Inc. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form by any means without the written permission of AVerMedia
INFORMATION, Inc.
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS
PRODUCT
MUST
HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE
WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED
COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL
AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT
WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING,
PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR
THE SHOP WHERE YOU PURCHASED THE PRODUCT.
NOT
BE DISPOSED OF WITH YOUR OTHER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the avervision spb350+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avermedia avervision spb350+

  • Page 1 COPYRIGHT © 2008 by AVerMedia Information, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia INFORMATION, Inc.
  • Page 2 Ba tte r y S a f et y I n f o rmat i on Store the batteries in a cool dry place. Do not dispose of used batteries in domestic waste. Dispose of batteries at special collection points or return to point of sale if applies. Remove the batteries during long periods of non-use.
  • Page 3: Table Of Contents

    Table of Contents Introduction..................1 Package Contents................1 Optional Accessories...............1 AVerMedia® AVerVision SPB350+ Parts...........2 Making the Connections ..............3 Connecting a VGA, Mac Monitor or LCD/DLP Projector ......... 4 Connecting a Monitor or LCD/DLP Projector with DVI interface...... 5 Connecting a TV ....................5 Connecting the Power Adapter ................
  • Page 4: Introduction

    ® Your AVerMedia AVerVision SPB350+ package contains the following: Thank you for purchasing ® the AVerMedia AVerVision SPB350+. This interactive visualizer displays documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making demonstrations a snap. Remote Control...
  • Page 5: Avermedia® Avervision Spb350+ Parts

    ® ® The illustrations below identify the parts of SPB350+. Camera head Camera lens Left panel Light box Control panel Overhead light IR sensors Rear panel 10. Label slot 11. Right panel (10) (11) Left Pane l (14) 12. CVBS OUT (12) (RCA/Composite) (15)
  • Page 6: Making The Connections

    The ports on the rear, left and right panel of SPB350+ enable you to connect the unit to a computer, graphics display monitor or LCD/DLP projector, TV or other device. Illustrated below are the ports that are located at the rear and right panel of SPB350+ with their corresponding labels.
  • Page 7: Connecting A Vga, Mac Monitor Or Lcd/Dlp Projector

    Right Panel LIGH T BOX VIDEO OUTPUT (1) (2) (3) Name Function (1) VIDEO : Select to output video signal between RGB (RGB & DVI-I) or OUTPUT TV (Composite Video/S-Video) display output. (2) LIGHT BOX : Turn on/off the light box. (3) Antitheft slot : Attach a Kensington compatible security lock or antitheft device.
  • Page 8: Connecting A Monitor Or Lcd/Dlp Projector With Dvi Interface

    Connecting a Monitor or LCD/DLP Projector with DVI interface Locate the DVI input port of the display device and connect it to DVI-I OUT port of SPB350+. If you are not sure, please refer to the user manual of the device. Make sure the Video Output switch is set to RGB.
  • Page 9: Connecting The Power Adapter

    Connecting the Power Adapter Connect the power adapter to a standard 100V~240V AC power source. DC 12V RS-232 RGB IN 2 RGB IN 1 RGB OUT IOIOI Wall outlet Power adapter Power cord Connecting a Computer Locate the RGB (VGA) output port of the computer or laptop to display your PC presentation on screen and connect it to RGB IN 1 or RGB IN 2 ports of SPB350+.
  • Page 10: Inserting And Ejecting A Sd Card

    Inserting and Ejecting a SD Card Insert the card with the label facing up until it reaches the end. To remove, pull the card out. The supported SD card capacity is from 16MB to 2GB. Make sure the card is formatted to FAT16.
  • Page 11: Overhead Light

    Overhead Light Press LAMP button on the control panel to turn on and off light. S-VIDEO OUT CVBS OUT DVI-I OUT SD CARD Infrared Sensor Aim the remote control at the infrared sensors to operate the unit. Light Box Press LIGHT BOX button on the right panel of SPB350+ to turn on and off light. Use this to view negatives film, and 35mm slides.
  • Page 12: Microscope Connection

    Microscope Connection Connecting the SPB350+ to a microscope enables you to examine microscopic objects on a big screen without straining your eyes. 1. Change the image display mode to Microscope. Press MENU > select SETTING > MODE > MICROSCOPE and press ENTER. 2.
  • Page 13: Using The Infrared Remote Control

    Use the SPB350+ Remote Control to enhance your presentation by having the ability to switch between three (3) presentation modes and access various features. To use the remote control, first insert the batteries (2 “AAA” size batteries are provided) into the battery compartment at the back of the remote.
  • Page 14 Name Function (11) PIP Display/hide a thumbnail of the captured image from the memory source at the corner of the screen while in Camera mode. Use ◄ or ► buttons to move to the previous or next image and ENTER to display the image in full screen.
  • Page 15: Touch Button Control Panel

    The touch button control panel located on the top side of AVerVision SPB350+ provides quick access to commonly used functions. POWER CAMERA/PC PLAYBACK AUTO IMAGE ROTATE LAMP ENTER MENU AUTO FOCUS FREEZE CAP/DEL (14) (13) (12) (11) (10) Name Function (1) POWER Turn the unit on/off.
  • Page 16: Using Avervision Spb350+ As A Mass Storage

    Name Function SHUTTLE WHEEL - Press the shuttle wheel ▲,▼,◄, & ► to pan the image while in digital zoom mode, to make a selection on 16-thumbnail images or move to the next or previous single full screen preview in Playback mode, or to make a selection or adjustment on the OSD main- menu and sub-menu (See Menu Functions for more details).
  • Page 17: Osd Navigation Tree

    VIDEO OUTPUT OSD For TV output, RESOLUTION is not included in the menu list. PLAYBACK OSD...
  • Page 18: Menu Functions

    The MENU functions of SPB350+ enhance fine-tuning your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list. Use ►/ENTER button to enter sub-menu and ◄/ ENTER to return to main menu.
  • Page 19 OSD Menu Description MENU EFFECT MIRROR Press ► and use ▲or▼ buttons to select the location of the mini playback PRESENTER screen. Then press ►/ENTER to make a selection. SPLIT SCREEN LOWER LEFT SETTING UPPER LEFT Display a thumbnail of the captured image from the memory source at the TIMER UPPER RIGHT CAPTURE...
  • Page 20 OSD Menu Description SETTING > IMAGE > BRIGHTNESS IMAGE EXPOSURE Use ►or◄ buttons to increase or decrease the brightness level and WHITE BALANCE BRIGHTNESS improve the visibility of the image. The brightness level can be set up to CONTRAST RESOLUTION SETTING >...
  • Page 21: Technical Specifications

    OSD Menu Description DEFAULT MENU EFFECT Press ► and use ▲or▼ buttons to select YES to restore to original MIRROR PRESENTER factory default setting or NO to exit then press ►/ENTER to make the SPLIT SCREEN selection. SETTING TIMER CAPTURE RECALL DEFAULT Image...
  • Page 22: Rs-232C Diagram Connection

    SPB350+ can be controlled using a PC through RS-232 connection. DC 12V RS-232 RGB IN 2 RGB IN 1 RGB OUT IOIOI Computer RS-232 cable Laptop (not supplied) Make sure the RS-232 cable matches the cable spec design. PC COM Port AVerVision RS-232 Port DSUB-9P (Female) DSUB-9P (Female)
  • Page 23: Set Value Format

    FUNCTION DATA CODE CHECKSUM CODE ZOOM OUT 0x2E 0x79 ZOOM RESET 0x2F 0x78 FREEZE 0x0C 0x5B ROTATE 0x0E 0x59 MIRROR 0x2C 0x7B EFFECT 0x2B 0x7C BRT UP 0x29 0x7E BRT DOWN 0x2A 0x7D AUTO IMAGE 0x0A 0x5D TIMER 0x0F 0x58 PROFILE 0x10 0x47...
  • Page 24: Get Value Format

    Get Value Format: Send Format︰0x52 + 0x0A + 0x01 + Data[0] + 0x53 + CheckSum Receive Format︰0x53 + 0x0C + 0x01 + ReData[0] + 0x53 + ReCheckSum Function Data[0] CheckSum Code ReData[0] ReCheckSum Code Red Value 0x02 0x5A Value[0~255] Blue Value 0x03 0x5B Value[0~255]...
  • Page 25: Limited Warranty

    This limited warranty extends only to You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.
