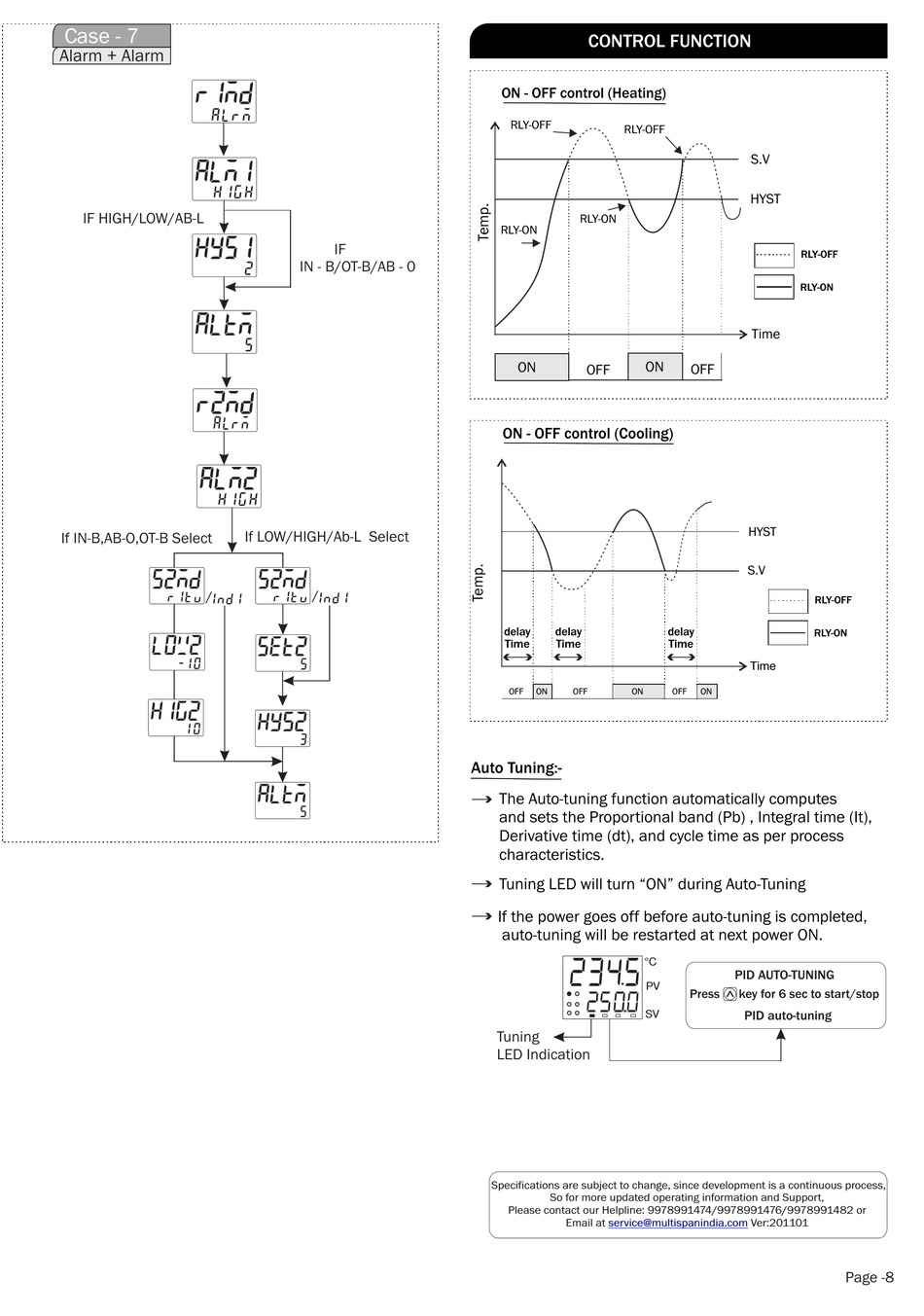

Control Function - MULTISPAN UTC-2200G Quick Start Manual

Case - 7
Alarm + Alarm
IF HIGH/LOW/AB-L
If IN-B,AB-O,OT-B Select
/
IF
IN - B/OT-B/AB - 0
If LOW/HIGH/Ab-L Select
/

CONTROL FUNCTION

ON - OFF control (Heating)
RLY-OFF
RLY-OFF
RLY-ON
RLY-ON
ON
OFF
ON - OFF control (Cooling)
delay delay
Time Time
OFF ON OFF ON
Auto Tuning:-
The Auto-tuning function automatically computes
and sets the Proportional band (Pb) , Integral time (It),
Derivative time (dt), and cycle time as per process
characteristics.
Tuning LED will turn "ON" during Auto-Tuning
If the power goes off before auto-tuning is completed,
auto-tuning will be restarted at next power ON.
2345 °C
2500
Tuning
LED Indication
