Basic Configuration - MULTISPAN UTC-2200G Quick Start Manual

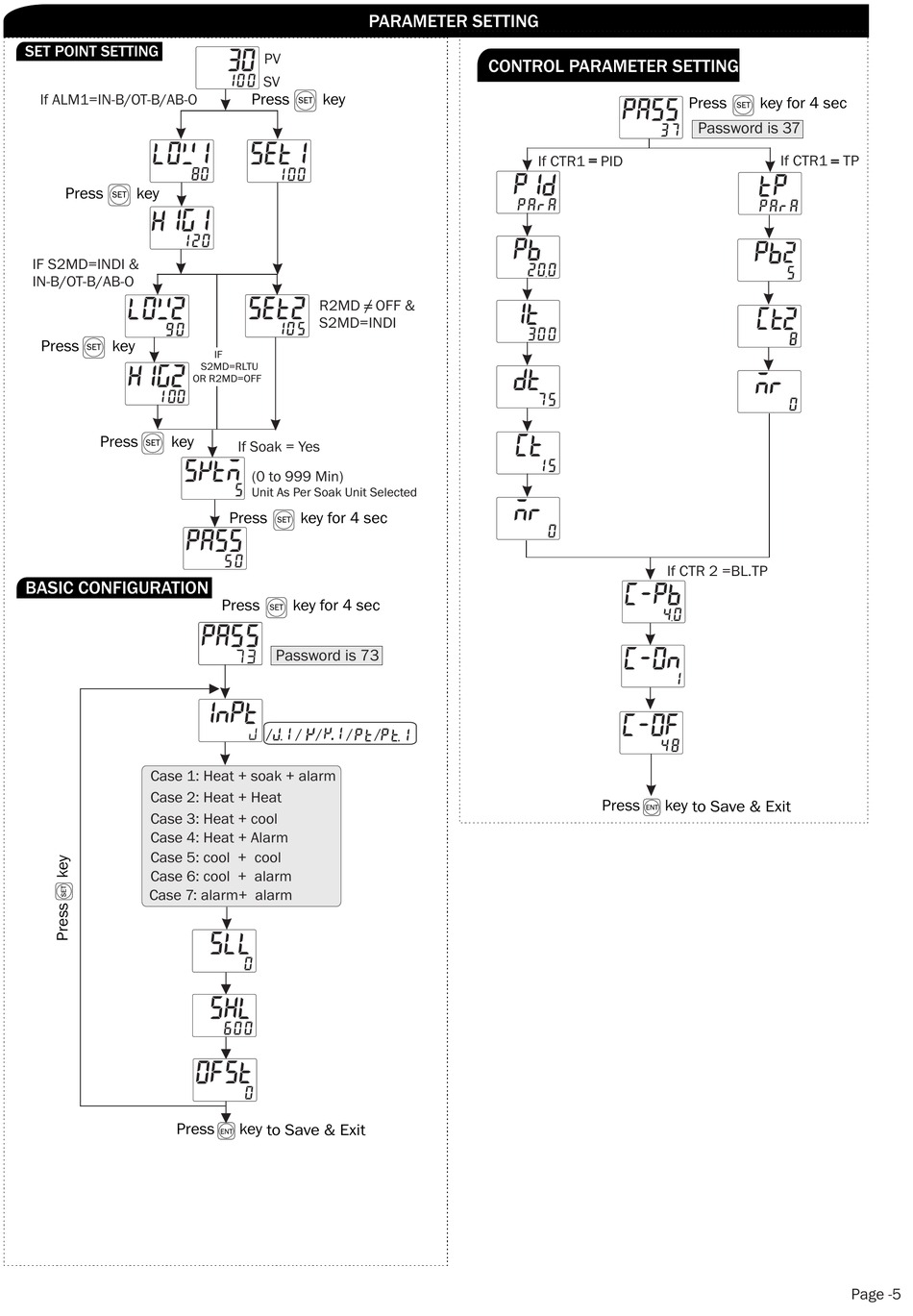

SET POINT SETTING
If ALM1=IN-B/OT-B/AB-O
Press key
IF S2MD=INDI &
IN-B/OT-B/AB-O
Press key
OR R2MD=OFF
Press key

BASIC CONFIGURATION

Case 1: Heat + soak + alarm
Case 2: Heat + Heat
Case 3: Heat + cool
Case 4: Heat + Alarm
Case 5: cool + cool
Case 6: cool + alarm
Case 7: alarm+ alarm
Press
PARAMETER SETTING
PARAMETER SETTING
PV
SV
Press key
/
R2MD OFF & =
S2MD=INDI
IF
S2MD=RLTU
If Soak = Yes
(0 to 999 Min)
Unit As Per Soak Unit Selected
Press key for 4 sec
Press key for 4 sec
73 Password is 73
j
/ / / /
key to Save & Exit
CONTROL PARAMETER SETTING
If CTR1 PID
/
Press key for 4 sec
Password is 37
=
If CTR 2 =BL.TP
Press key to Save & Exit
If CTR1 TP =
Page -5
