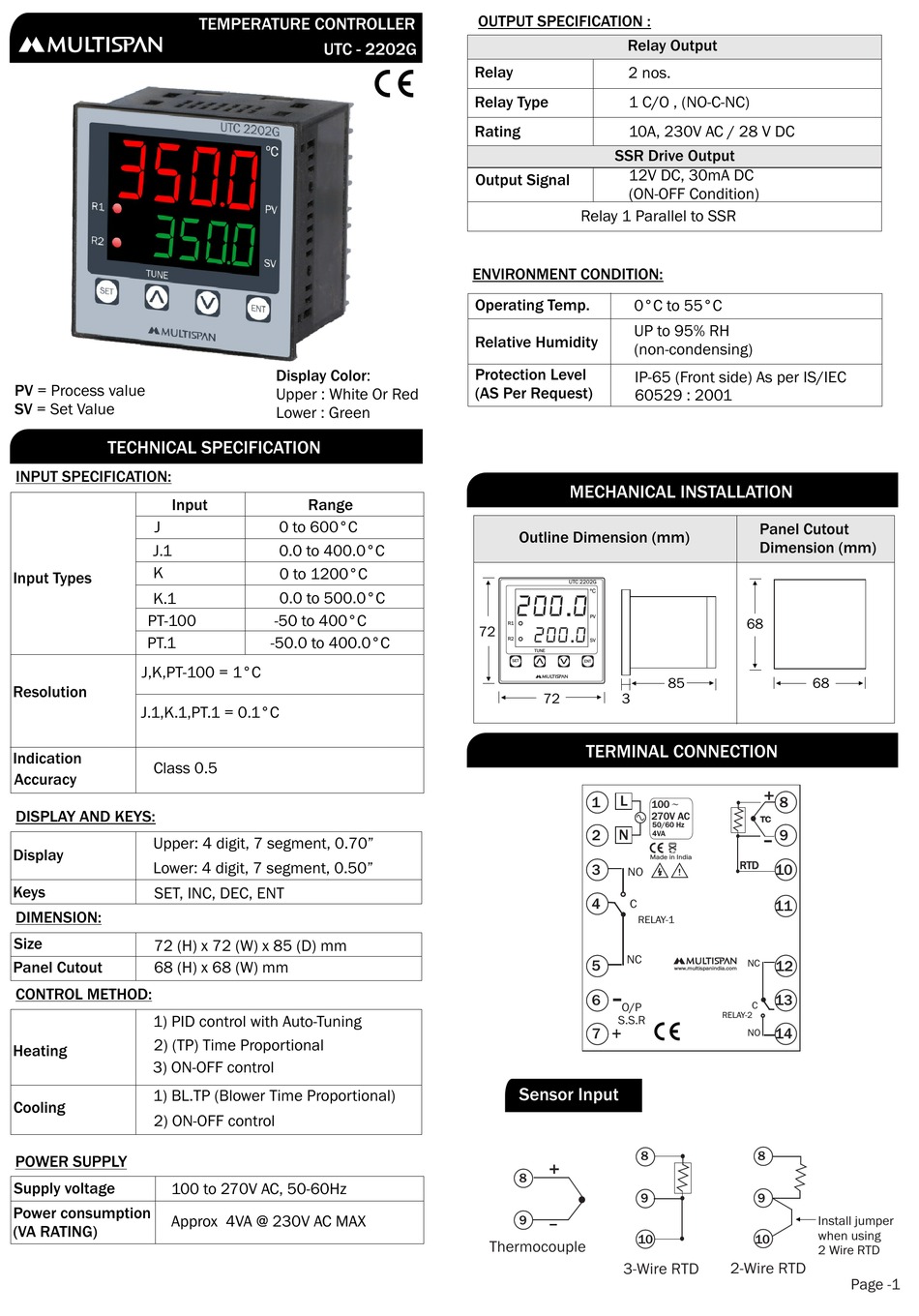

MULTISPAN UTC-2200G Quick Start Manual

PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
Class 0.5
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.70"
Display
Lower: 4 digit, 7 segment, 0.50"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 85 (D) mm
Panel Cutout 68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
1) BL.TP (Blower Time Proportional)
Cooling
2) ON-OFF control
POWER SUPPLY
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 4VA @ 230V AC MAX
(VA RATING)

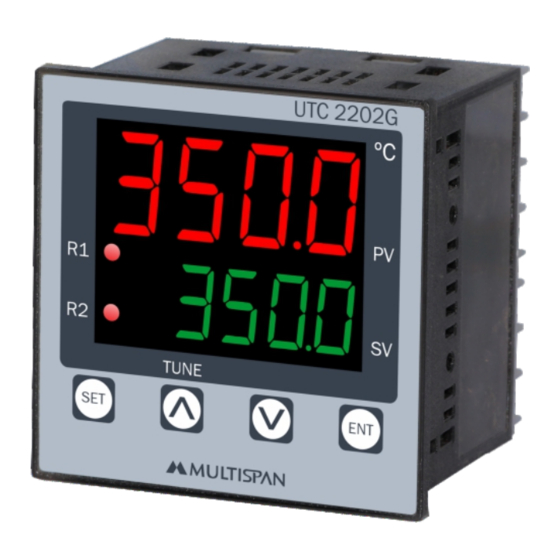

TEMPERATURE CONTROLLER
UTC - 2202G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION :
Relay Output
Relay 2 nos.
Relay Type 1 C/O , (NO-C-NC)
Rating 10A, 230V AC / 28 V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(ON-OFF Condition)
Relay 1 Parallel to SSR
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(AS Per Request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 2202G
ºC
200.O
PV
R1
72
200.O
R2
SV
TUNE
SET ENT
72 3
TERMINAL CONNECTION
L
1
N
2
3
NO
4
C
RELAY-1
NC
5
-
6
O/P
S.S.R
7
Sensor Input
8
8
9
9
10
Thermocouple
3-Wire RTD
Panel Cutout
Dimension (mm)
68
85 68
8
~
100
270V AC
TC
50/60 Hz
9
4VA
-
Made in India
RTD
10
!
11
NC
12
www.multispanindia.com
13
C
RELAY-2
14
NO
8
9
Install jumper
when using
10
2 Wire RTD
2-Wire RTD
Page -1
