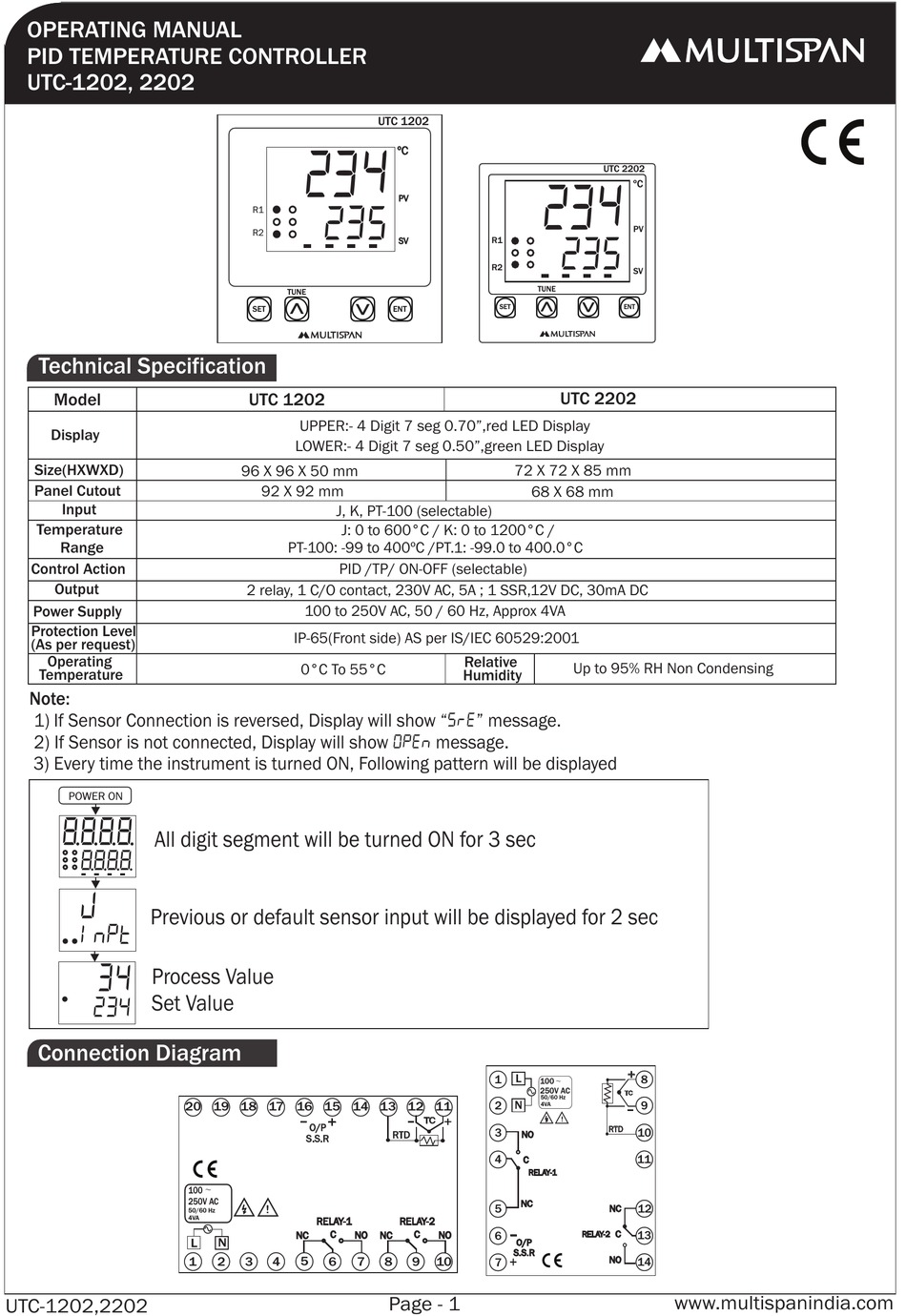

MULTISPAN UTC-1202 Operating Manual

OPERATING MANUAL
OPERATING MANUAL
PID TEMPERATURE CONTROLLER
PID TEMPERATURE CONTROLLER
UTC-1202, 2202
UTC-121P,221P & 421P
Technical Specification Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Temperature
Range
Control Action
Output
Power Supply
Protection Level
(As per request)
Operating
Temperature
Note:
1) If Sensor Connection is reversed, Display will show "
2) If Sensor is not connected, Display will show
3) Every time the instrument is turned ON, Following pattern will be displayed
POWER ON
8 8 88
All digit segment will be turned ON for 3 sec
8888
j
Previous or default sensor input will be displayed for 2 sec
INpt
34
Process Value
Set Value
234
Connection Diagram Connection Diagram
UTC-1202,2202
3 2 4
R1 235
R2
TUNE
SET

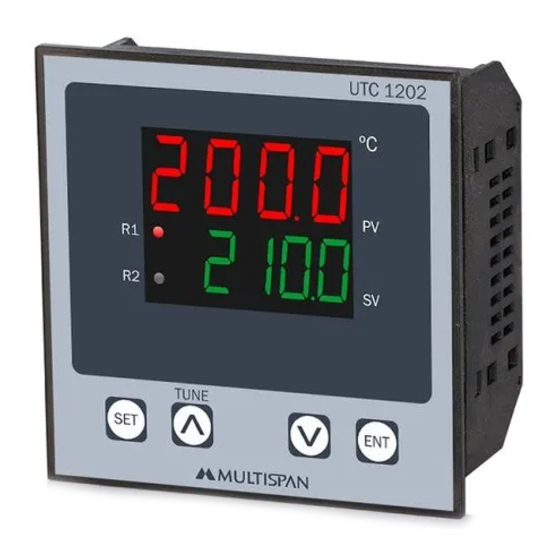

UTC 1202
UPPER:- 4 Digit 7 seg 0.70",red LED Display
LOWER:- 4 Digit 7 seg 0.50",green LED Display
96 X 96 X 50 mm
92 X 92 mm
J, K, PT-100 (selectable)
J: 0 to 600°C / K: 0 to 1200°C /
PT-100: -99 to 400ºC /PT.1: -99.0 to 400.0°C
PID /TP/ ON-OFF (selectable)
2 relay, 1 C/O contact, 230V AC, 5A ; 1 SSR,12V DC, 30mA DC
100 to 250V AC, 50 / 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
20 19 18 17 16 15 14
-
+
O/P
S.S.R
~
100
250V AC
!
50/60 Hz
4VA
RELAY-1
C NO
NC
L N
1 2 3 4 5 6
UTC 1202
ºC
PV
SV R1
R2
SET
ENT
72 X 72 X 85 mm
Relative
Humidity
SRE
" message.
Open
message.
L
1
2 N
13 12 11
TC
3
RTD NO
4
C
NC
5
RELAY-2
C NO
NC 6
-
O/P
S.S.R
7 8 9 10
7
Page - 1
UTC 2202
ºC
3 2 4
PV
235
SV
TUNE
ENT
UTC 2202
68 X 68 mm
Up to 95% RH Non Condensing
8
~
100
250V AC
TC
50/60 Hz
9
4VA
-
!
RTD
10
11
RELAY-1
12
NC
RELAY-2 C 13
NO
14
www.multispanindia.com
