PV = Process value
SV = Set Value

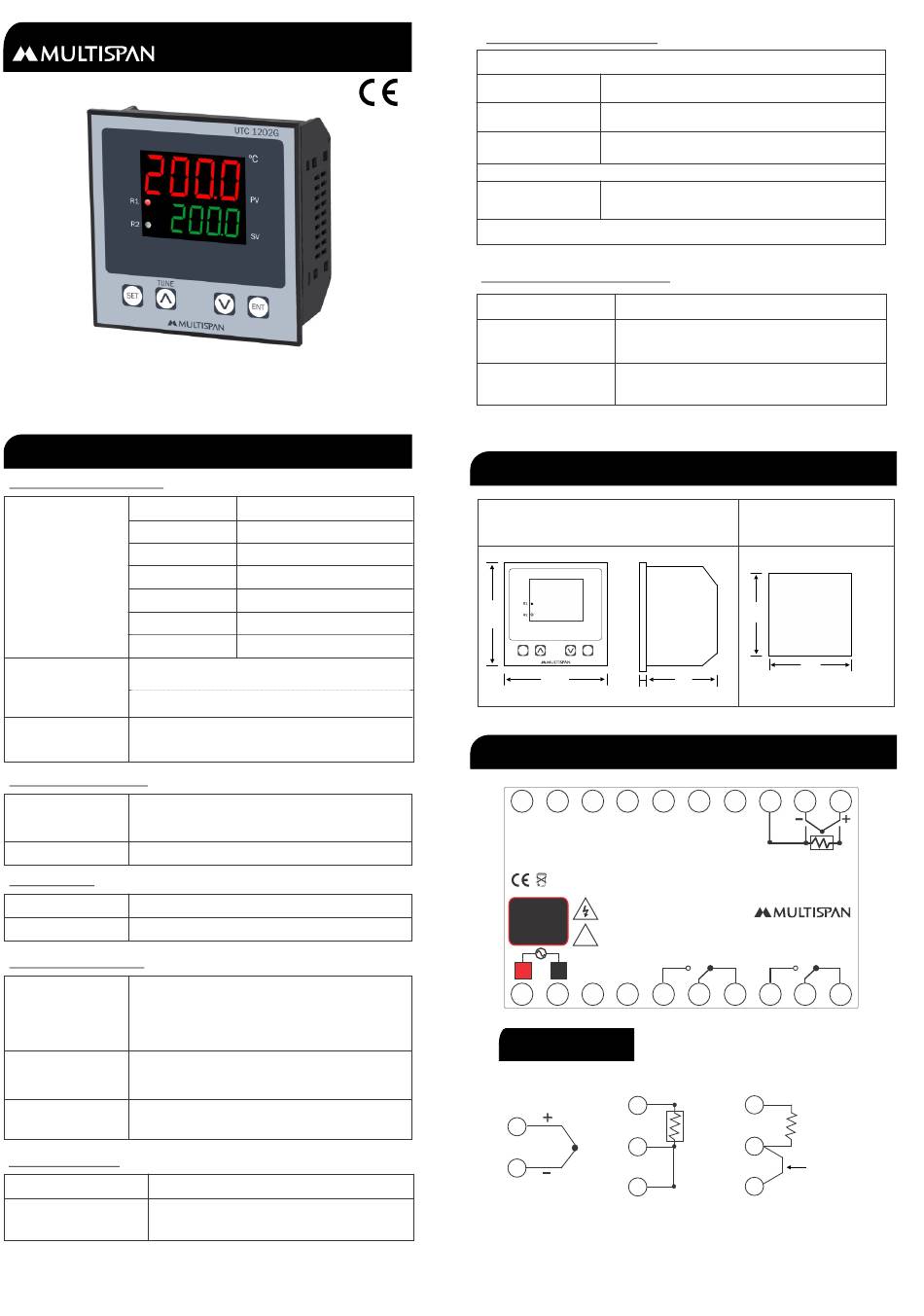

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.70"
Display
Lower: 4 digit, 7 segment, 0.50"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
96 (H) x 96 (W) x 52 (D) mm
92 (H) x 92 (W) mm
Panel Cutout
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
1) BL.TP (Blower Time Proportional)
Cooling
2) ON-OFF control
High /Low /Absolute Low/ Inband
Alarm
/Absolute Outband/Outband/End Alarm
POWER SUPPLY
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 4VA @ 230V AC MAX
(VA RATING)
TEMPERATURE CONTROLLER
UTC - 1202G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION :
Relay Output
Relay
2 nos.
Relay Type
1 C/O , (NO-C-NC)
Rating
10A, 230V AC / 28 V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(ON-OFF Condition)
Relay 1 Parallel to SSR
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 1202G
ºC
150.0
PV
160.0
96
SV
TUNE
SET
ENT
96
3
TERMINAL CONNECTION
20
19
18
17
16
Made in India
~
100
270V AC
50/60 HZ
!
4VA
NO
L
N
1
2
3
4
Sensor Input
11
11
12
12
13
Thermocouple
3-Wire RTD
Panel Cutout
Dimension (mm)
92
92
52
15
14
13
12
11
-
+
T/C
O/P
RTD
S.S.R
www.multispanindia.com
RELAY-1
RELAY-2
C
C
NC
NO
NC
5
6
7
8
9
10
11
12
Install jumper
when using
13
2 Wire RTD
2-Wire RTD
Page -1
