User Manual - DPM1-P Series Panel Meters

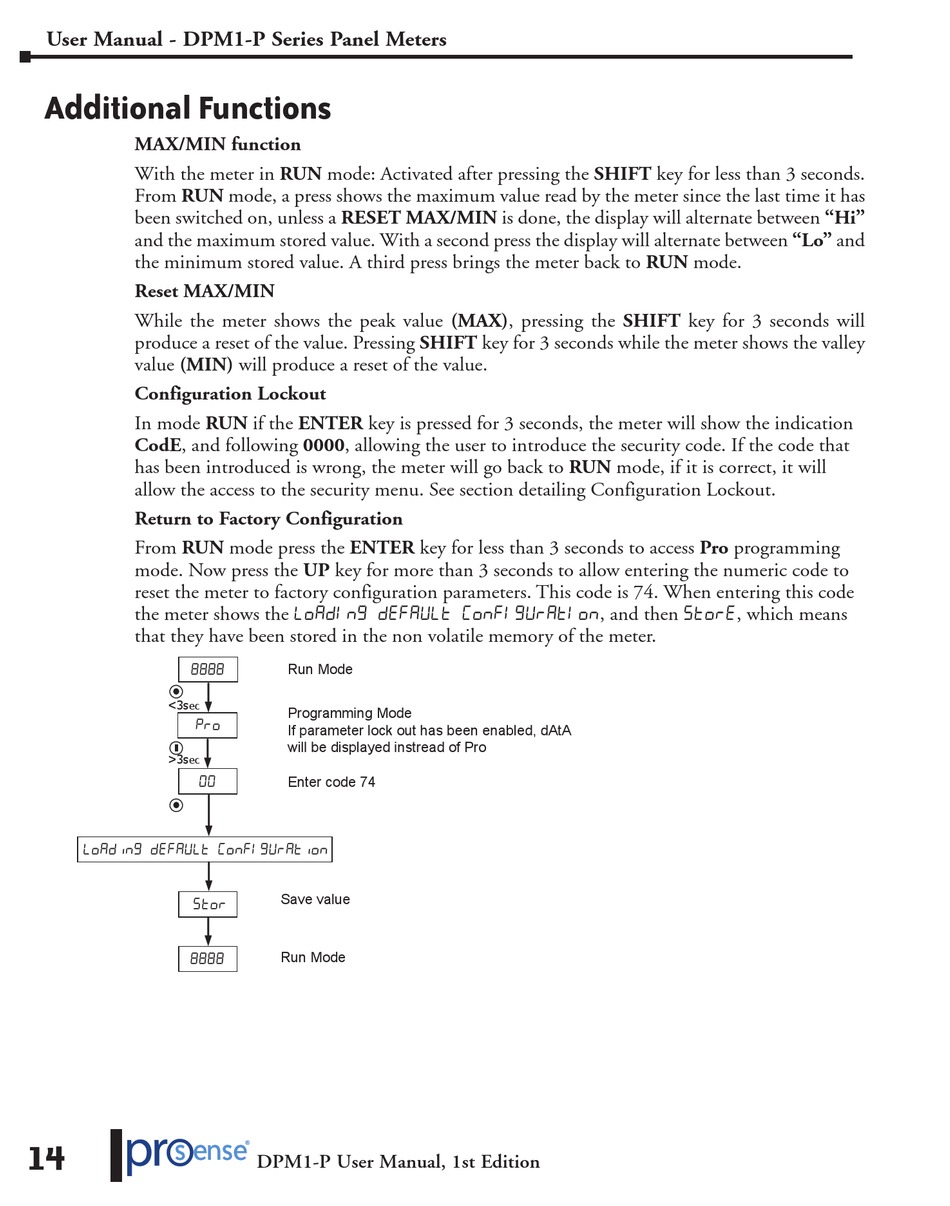

Additional Functions

MAX/MIN function
With the meter in RUN mode: Activated after pressing the SHIFT key for less than 3 seconds.
From RUN mode, a press shows the maximum value read by the meter since the last time it has
been switched on, unless a RESET MAX/MIN is done, the display will alternate between "Hi"
and the maximum stored value. With a second press the display will alternate between "Lo" and
the minimum stored value. A third press brings the meter back to RUN mode.
Reset MAX/MIN
While the meter shows the peak value (MAX), pressing the SHIFT key for 3 seconds will
produce a reset of the value. Pressing SHIFT key for 3 seconds while the meter shows the valley
value (MIN) will produce a reset of the value.
Configuration Lockout
In mode RUN if the ENTER key is pressed for 3 seconds, the meter will show the indication
CodE, and following 0000, allowing the user to introduce the security code. If the code that
has been introduced is wrong, the meter will go back to RUN mode, if it is correct, it will
allow the access to the security menu. See section detailing Configuration Lockout.
Return to Factory Configuration
From RUN mode press the ENTER key for less than 3 seconds to access Pro programming
mode. Now press the UP key for more than 3 seconds to allow entering the numeric code to
reset the meter to factory configuration parameters. This code is 74. When entering this code
the meter shows the LoAdIng dEFAuLt ConFIGurAtIon, and then StorE, which means
that they have been stored in the non volatile memory of the meter.

<3s
ec

>3s
ec

  


14
Run Mode
Programming Mode
If parameter lock out has been enabled, dAtA
will be displayed instread of Pro
Enter code 74
Save value
Run Mode
DPM1-P User Manual, 1st Edition
