462 Leap

Fixed and Depth Seat Replacement

(For chairs manufactured prior to July 18, 2005)

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2003 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Page 1 of 4

Printed in U.S.A.

939504704 Rev D

Need help?

Do you have a question about the Leap 462 and is the answer not in the manual?

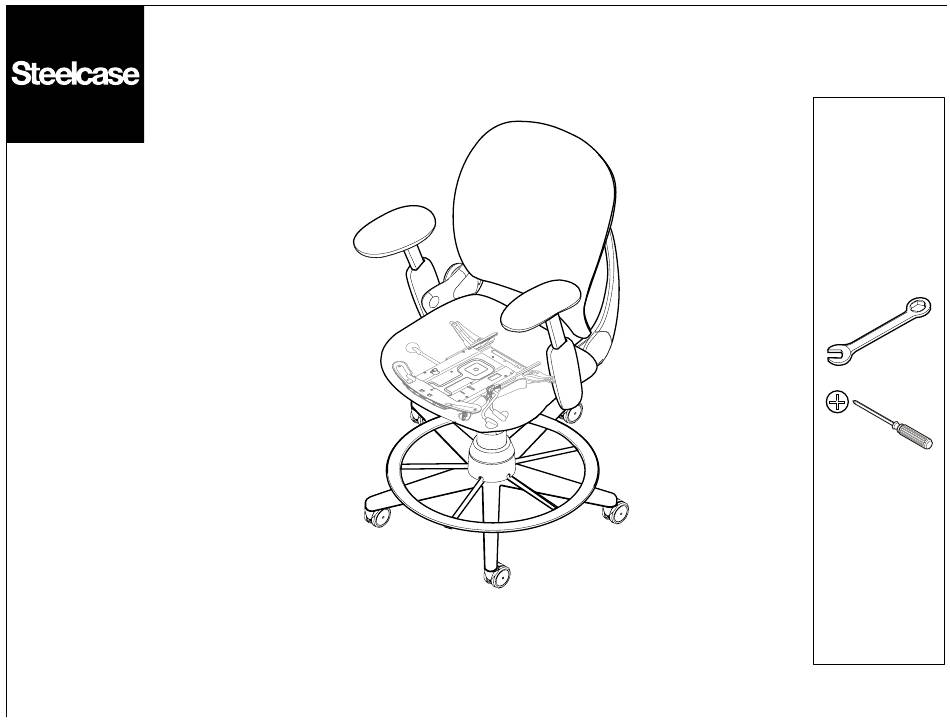

Page 1 (For chairs manufactured prior to July 18, 2005) ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 Fixed Seat Remove screws (2) and slide seat off. Remove shell screws (10). Remove seat support plate screws (4). Reassemble. Make sure plate is captured in tab. REMOVE REMOVE Page 2 of 4 939504704 Rev D...
Page 3 Depth and Angle Seat Slide seat fully forward while holding side lever. Disengage quick release located on the left hand side of the chair between plates. Page 3 of 4 939504704 Rev D...
Page 4 Depth and Angle Seat Remove shell screws (11). Remove front panel screws (4). Reassemble. Make sure plate is captured in tab. REMOVE REMOVE Page 4 of 4 939504704 Rev D...
