Steelcase 462 Leap Quick Start Manual

Steelcase 462 Leap Quick Start Manual

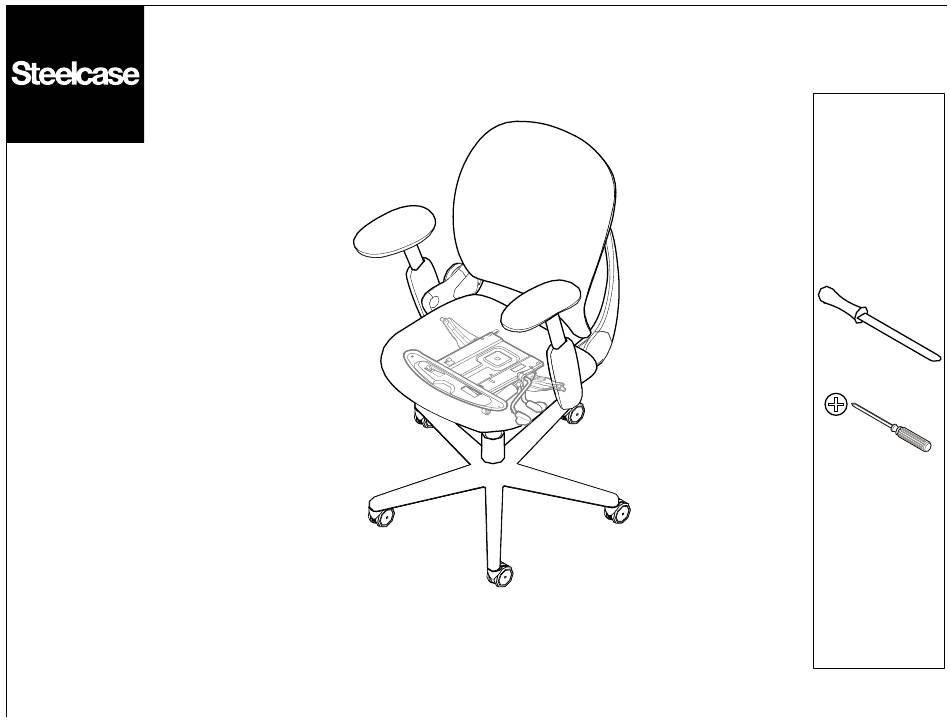

Leg angle front strap for customer service
Hide thumbs Also See for 462 Leap:

Advertisement

Quick Links

®
462 Leap
Leg Angle Front Strap for Customer Service
(For chairs manufactured prior to July 18, 2005)
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2004 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 3
Printed in U.S.A.
939504225 Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 462 Leap and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase 462 Leap

  • Page 1 (For chairs manufactured prior to July 18, 2005) ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 Slide seat fully forward while holding side lever. Disengage quick release Front of chair Back of chair Disengage quick release located on the left hand side of the chair between plates. Slide seat forward and off. Page 2 of 3 939504225 Rev B...
  • Page 3 REMOVE FRONT SEAT Remove (11) shell screws and outer PANEL seat shell. Remove leg angle cylinder cover. LEG ANGLE CYLINDER COVER Remove (4) screws and front seat panel. LEG ANGLE FRONT STRAP ASSEMBLY Lift front of seat plate assembly and remove leg angle front strap assembly.
