TS380 Springboard

Springboard

Manager Seating

and 461 Drive

with or without Back Lock Assembly

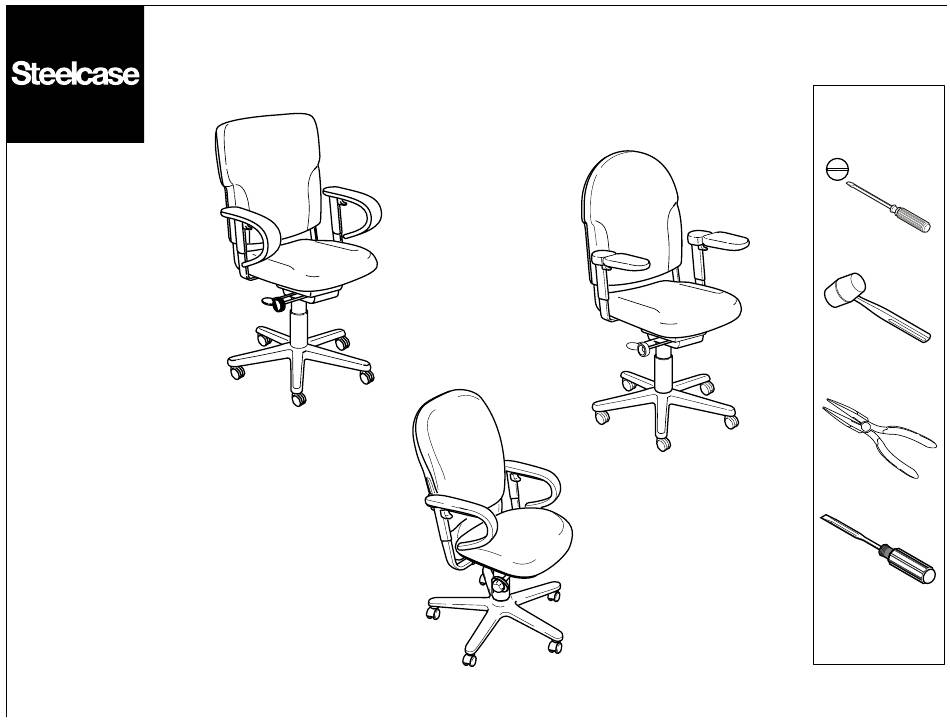

Drive: Full Back Model Shown

Power Pack/Chair Control

Springboard

Task Seating

Page 1 of 3

939504743 Rev B

Table of Contents

Need help?

Do you have a question about the TS380 Springboard and is the answer not in the manual?

Page 1 Manager Seating Springboard Task Seating If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 Task Seating Shown Adjust chair to maximum seat height. Turn chair upside down and set on stand or table. Slide plastic telescopic cover all the way down the column. Remove the base assembly from chair control by using the disassembly tool for taper fit joint, or twisting and pulling using a pipe wrench.
Page 3 Upright Remove upright and back assembly by removing (4) upright screws (a). Then tapping upright out of chair (b). Upright Remove synchro pivot pins on both Screws sides of chair control by (a) first removing retaining clips on inside ends of pins, (b) then use pliers to pull the Retaining Clip pins out.
