Steelcase 464 Leap Assembly Instructions

Worklounge headrest replacement, customer service

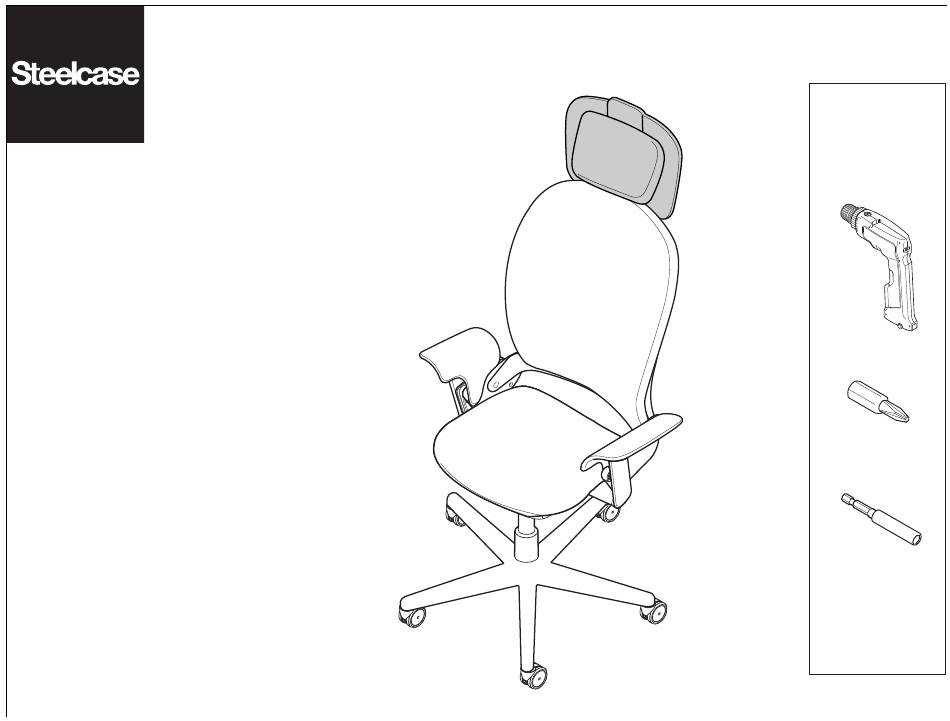

464 Leap

WorkLounge Headrest Replacement

(Customer Service)

#3 Phillips

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2005 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Page 1 of 4

Printed in U.S.A.

939504810 Rev A

Table of Contents

Need help?

Do you have a question about the 464 Leap and is the answer not in the manual?

Page 1 (Customer Service) ® #3 Phillips If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 RIBBON Remove nameplate by pulling down (1a). Remove the two (2) small screws from the back of pivots (1b). NAME PLATE Grab the ribbon on either side of the nameplate and push the back forward with the soft pads of the thumb.
Page 3 Remove the three (3) headrest attachment screws with a #3 phillips screwdriver. Push the backrest forward while tipping the headrest rearward to remove it. Page 3 of 4 939504810 Rev A...
Page 4 Install the new headrest with the three (3) new screws provided. Snap the back shell sockets into the rear pivot cups (6a) (by slapping the back cushion with the palm of your hand (6b), so that the screw holes are aimed at the floor).
