Worklounge chair control replacement

Advertisement

Quick Links

®
464 Leap

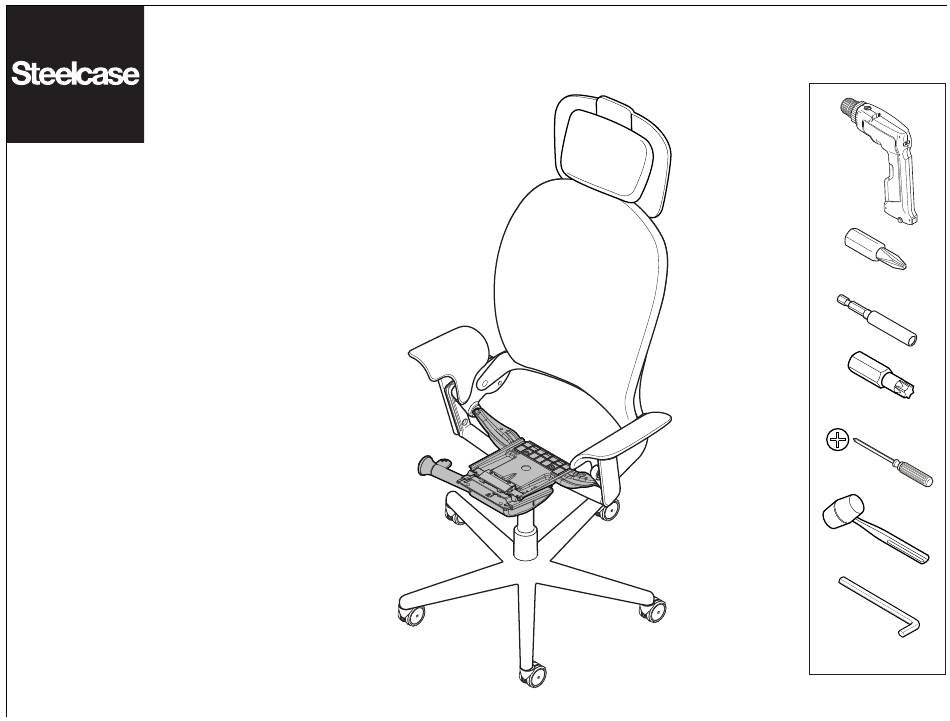

WorkLounge Chair Control Replacement
(Customer Service)
®
#3 Phillips
T-30 Driver
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
1/8 Allen Wrench
©
2005 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 7
Printed in U.S.A.
939504807 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leap 464 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase Leap 464

  • Page 1 #3 Phillips T-30 Driver If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 Underside of Arm Remove arm cap screws from underside of aluminum armrest structure (1a) and remove both arm caps (1b). Flip chair over. Remove rear seat screws (2a) and remove seat by sliding seat forward and lifting (2b). Underside Rear of Chair Page 2 of 7 939504807 Rev A...
  • Page 3 FRONT STRAP PLATE Remove front strap screws and front strap. Remove rear cowl screws and FRONT STRAP loosen top part of cowl. COWL FOLDS BACK Page 3 of 7 939504807 Rev A...
  • Page 4 SCREW HEAD COVER Pivot backrest assembly forward. Using a flat head screwdriver, remove the screw head covers (5a). Using a #3 phillips, remove both the lower back belt screws (5b). Using a flat head screwdriver, remove the screw head covers (6a). Using a #3 phillips, remove both the upper back belt screws (6b).
  • Page 5 Flex the back belt inward, and it will disengage from the ribbon. Page 5 of 7 939504807 Rev A...
  • Page 6 Remove pneumatic cylinder and base from chair control. a. Adjust chair to maximum seat height. b. Turn chair upside down or set on its side. c. Remove the pneumatic cylinder/base assembly from the chair control by twisting and pulling on the column with a pipe wrench or by using the removal tool.
  • Page 7 Pneumatic cylinder adjustment directions a. If chair rises by itself, sinks with an occupent or does not raise and lower when seat height lever is lifted, the cylinder adjustment screw may not be in the correct adjustment. b. Place the seat at its lowest position.
