Steelcase 462 Leap Disassembly

Task chair and stool
Hide thumbs Also See for 462 Leap:

Advertisement

Quick Links

Download this manual
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2010 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
®

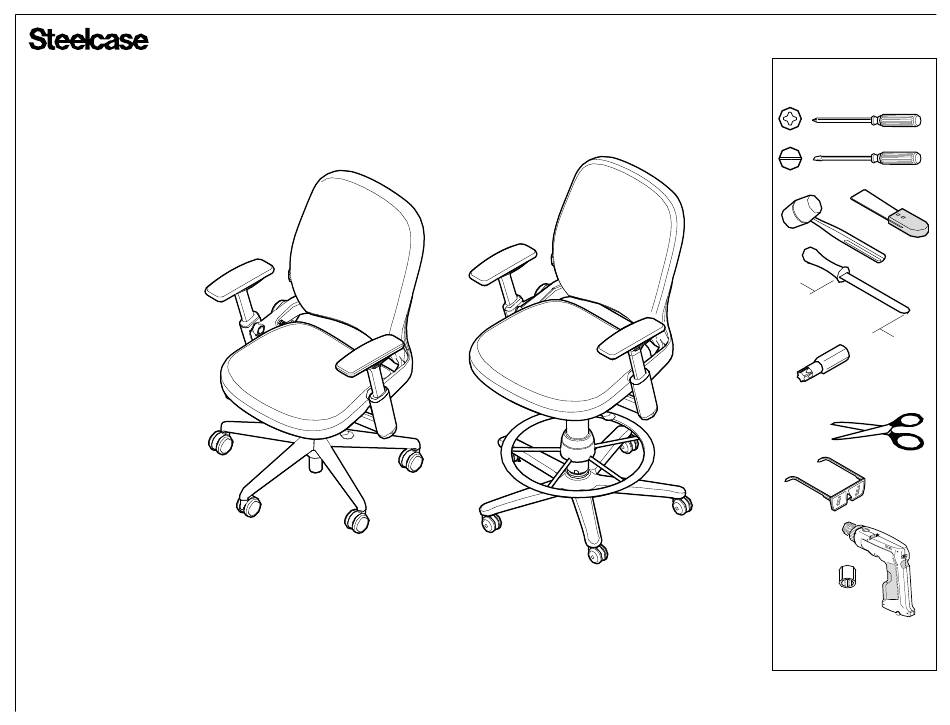

462 Leap
Task Chair and Stool Disassembly
8 "
m i
n i m
u m
T-20, T-25, T-30
1/2"
Page 1 of 20
939546225 Rev A
