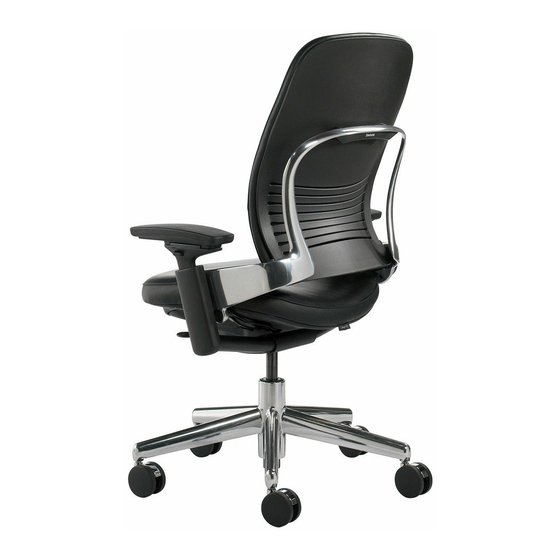

Steelcase 462 Leap V2 Service Manual
Chair control replacement instructions
Hide thumbs
Also See for 462 Leap V2:
- Disassembly (20 pages) ,
- Replacement manual (9 pages) ,
- Assembly replacement (9 pages)
Table of Contents
Advertisement
Quick Links
®
462 Leap
V2 Chair Control Replacement Instructions
(Removal Shown - Reverse Steps for Installation)
(For chairs built after March 20, 2006)
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
or a flat-bladed
888.STEELCASE (888.783.3522)
screwdriver that is 8"
for immediate action by people who want to help you.
or longer
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2005 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 6
U.S.A.
939546214 Rev E
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Steelcase 462 Leap V2
Summary of Contents for Steelcase 462 Leap V2
- Page 1 (Removal Shown - Reverse Steps for Installation) (For chairs built after March 20, 2006) If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at or a flat-bladed 888.STEELCASE (888.783.3522) screwdriver that is 8"...
- Page 2 Slide seat fully forward while holding the seat slide lever. Locate the white quick release tab located on the left hand side of the chair (as you sit in it) between the plates. Lift the quick release tab while pulling the seat slide lever and sliding the seat forward.
- Page 3 Black and Midnight With the arm adjusted all the way up, remove the outer pod cover and arm by one of the following methods: a) For black and midnight colored chairs pull the pod cover out from the bottom thus releasing it from the inside cover and clearing the steel bracket.
- Page 4 CONTROL COVER Unscrew two (2) front screws to remove the control cover. NOTE: After control cover screws are removed, the chair back is free to move. Hold chair back firmly to avoid possible injury. Unscrew two (2) rear screws to remove cowling. COWLING Page 4 of 6 939546214 Rev E...
- Page 5 Pop screw covers out (7a) and remove upper pivot screws (7b). Remove lower pivot screws. Compress back frame inward off arm rivets. Remove back frame and seat carrier from chair. Remove inner arm covers. INNER ARM COVER Page 5 of 6 939546214 Rev E...
- Page 6 Adjust chair control to maximum seat height if possible. Turn chair control upside down or on its side. Install the pneumatic cylinder removal tool (Service part 4620551SR / Part number 879100100) on the top part of the pneumatic cylinder, as close as possible to the chair control CHAIR housing.
