SR4/SR8 Stepping Motor Drive User

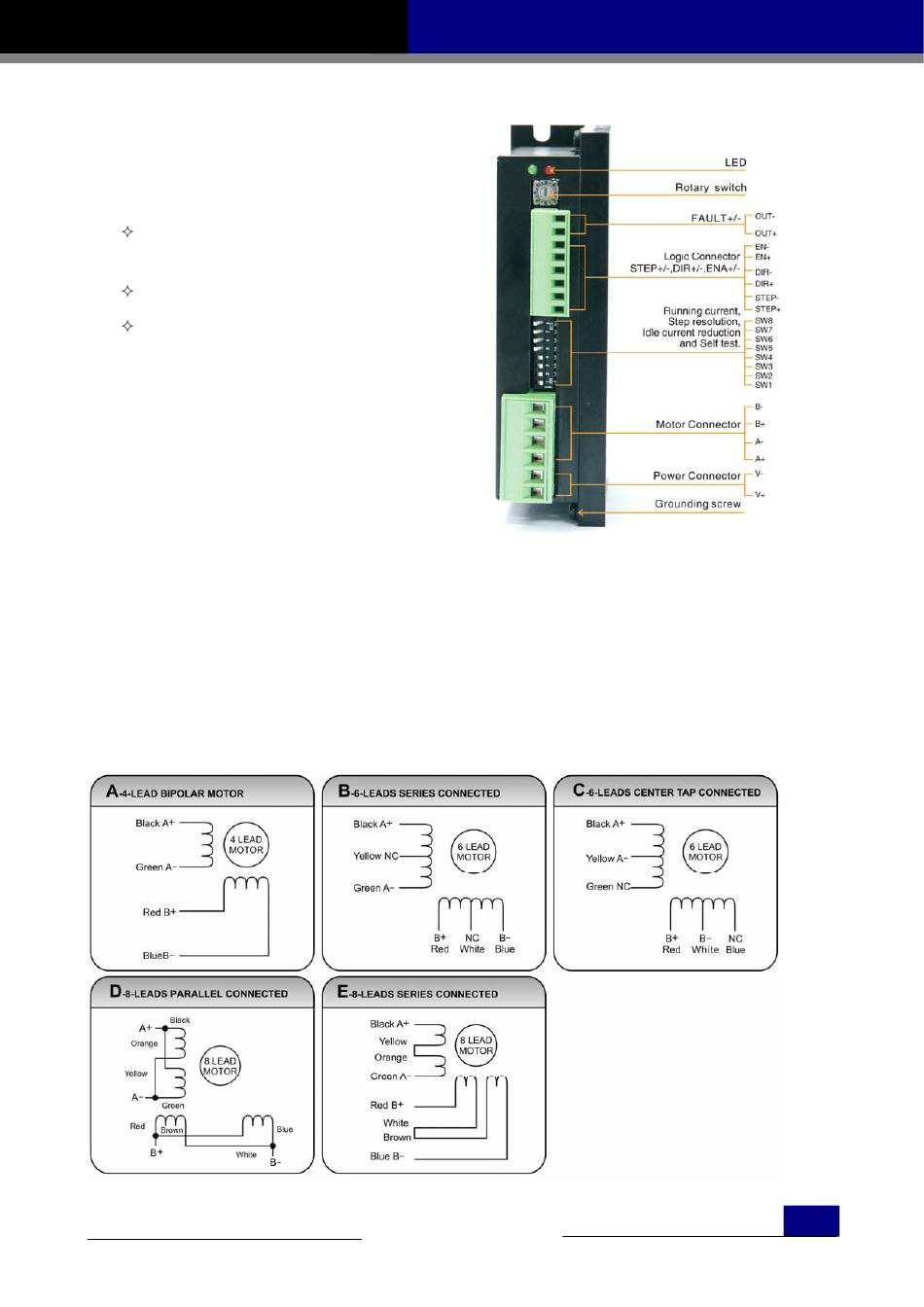

4 Connecting

To use the drive models of SR4 and SR8,
you should have the following:
A power supply (24-48VDC for SR4
and 24-75VDC for SR8)
Pulse & Direction signal
A compatible stepping motor

4.1 Connecting to Power Supply

If your power supply does not have a fuse on the output or some kind of short circuit current limiting device
you need to put a fast acting fuse(Current ratings never exceed 10 Amps) between the drive and power
supply. Install the fuse on the + power supply lead in series.
Connect the motor power supply "+" terminal to the drive terminal labeled " V+". Connect
power supply "-" to the drive terminal labeled " V-".
Be careful not to reverse the wires.

4.2 Connecting to Motor

Manual
- 5 -
