Moons' SR2-Plus Quick Setup Manual

SR2-Plus
Step Motor Drive

Requirements

To use the SR2-Plus Step Drive, the following items are
needed:
• A power supply (12 - 48 VDC)
• Pulse & Direction signal
• A compatible step motor

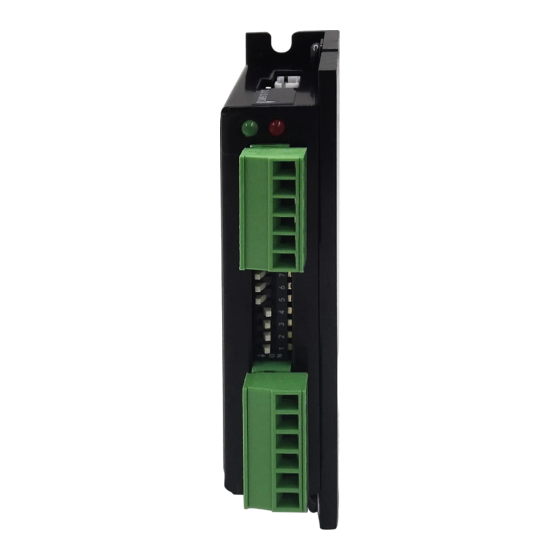

Control Signal
Switches for selecting
Motor Connector
Power Connector
Grounding screw

Connecting to a Motor

Connect the drive to the motor.
Four lead motors can be connected
in only one way. If using a non
MOONS' motor, consult the motor
specs for wiring information.
White
Green
8 LEAD
MOTOR
Brown
C
Yellow
Blue
Gray
Pink
8-Lead Parallel Connected
1
LED
OUT-
OUT+
EN
DIR
STEP
COM+
SW8
SW7
SW6
SW5
Switches for selecting
SW4
SW3
SW2
SW1
B-
B+
A-
A+
V-
V+
3
Black A+
Green A-
Red B+
Blue B-
4-Lead Biploar Motor
White A
Brown
Green
Yellow C
Gray B
Pink
Red
Blue
Red D
D
8-Lead Series Connected

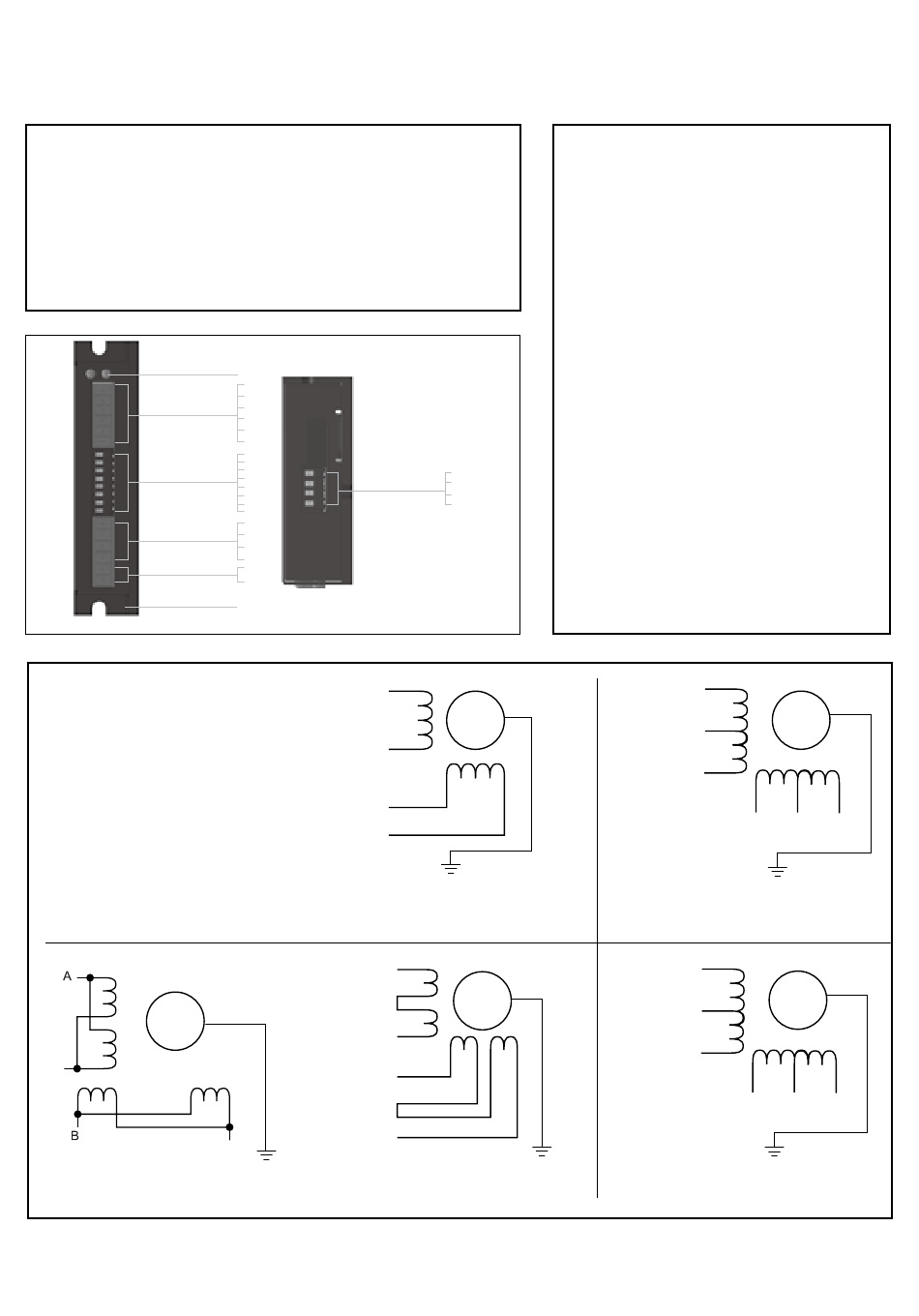

Quick Set-Up Guide

Connect to the Power Supply

If the power supply does not have a fuse
on the output or some kind of short cir-
cuit current limiting device, a 4 amp fast
acting fuse should be installed in line
with the "+" power supply lead.
Connect the motor power supply "+" ter-
minal to the drive terminal labeled "V+".
Connect the power supply "-" to the drive
terminal labeled "V-".
Be careful not to reverse the wires.
SW12
SW11
SW10
SW9
4 LEAD
MOTOR
8 LEAD
MOTOR
2
Black A+
6 LEAD
MOTOR
Yellow A-
Green NC
B+ B-
Red White
6-Lead Center Tap Connected
Black A+
6 LEAD
MOTOR
Yellow NC
Green A-
B+ NC
Red White
6-Lead Series Connected
NC
Blue
B-
Blue
